Tripp Lite

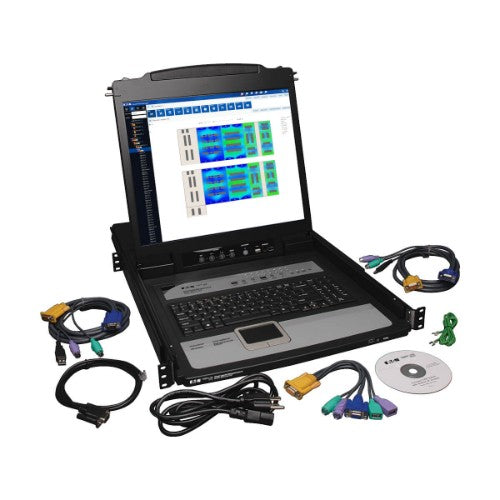

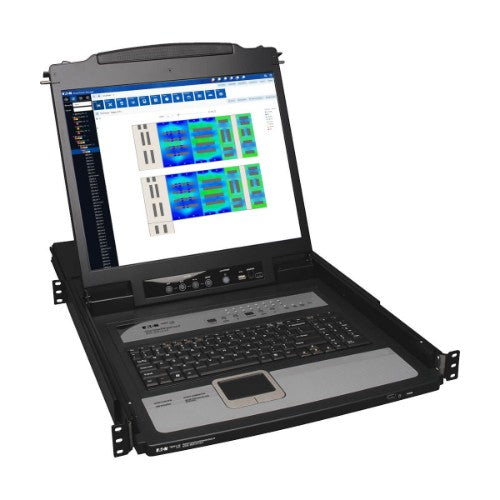

Tripp Lite B020-U16-19-IP rack console 19" 1280 x 1024 pixels Black 1U
SKU:
B020-U16-19-IP
Condition: New
$2,971.81 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch with 19 in. LCD
Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
Remotely access computers via LAN, WAN or the Internet via Windows or Java
Panel Array Mode allows remote monitoring of multiple ports at the same time
Windows- and Java-based applications provide access without a browser
Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console
Built-In Security to Keep Your Data Safe
3 levels of security (Admin, User and Select) allow you to delegate proper access
Create up to 64 separate user accounts
Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
Supports RADIUS and LDAP/S remote authentication
LEDs indicate when a computer is connected, powered on and selected
Included firmware upgrade cable keeps the software up to date
Versatile to Meet Your Specific Needs
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.
Compatible with all major operating systems
User-friendly web management interface can be displayed in English, Spanish, French, German or Italian
Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice
Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers
Keep Your Colleagues in the Loop
Windows-based log server records events and saves them to a searchable database
Users who are logged in simultaneously can communicate via message board and manage port access
Rack-Mounted Convenience
LCD folds down so the unit mounts into just 1U of rack space
Mounts in racks from 26 in. to 38 in. deep
Rugged steel housing and premium connectors built to last
Console locks into place when not in use to prevent sliding out of the rack
Key Features
- Controls up to 16 computers remotely via LAN, WAN or Internet
- Installs in just 1U to save rack space
- Works with all major operating systems and browsers
- Protects data with 3 security levels (Admin, User and Select)
- Enables up to 64 secure user accounts
Description
Complete Control from AnywhereBuilt-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
Remotely access computers via LAN, WAN or the Internet via Windows or Java
Panel Array Mode allows remote monitoring of multiple ports at the same time
Windows- and Java-based applications provide access without a browser
Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console
Built-In Security to Keep Your Data Safe
3 levels of security (Admin, User and Select) allow you to delegate proper access
Create up to 64 separate user accounts
Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
Supports RADIUS and LDAP/S remote authentication
LEDs indicate when a computer is connected, powered on and selected
Included firmware upgrade cable keeps the software up to date
Versatile to Meet Your Specific Needs
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.
Compatible with all major operating systems
User-friendly web management interface can be displayed in English, Spanish, French, German or Italian
Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice
Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers
Keep Your Colleagues in the Loop
Windows-based log server records events and saves them to a searchable database
Users who are logged in simultaneously can communicate via message board and manage port access
Rack-Mounted Convenience
LCD folds down so the unit mounts into just 1U of rack space
Mounts in racks from 26 in. to 38 in. deep
Rugged steel housing and premium connectors built to last
Console locks into place when not in use to prevent sliding out of the rack
Specifications
| Display | |
|---|---|
| Display diagonal | 19" |
| On Screen Display (OSD) | Yes |
| Display resolution | 1280 x 1024 pixels |
| Technical details | |
| Country of origin | Taiwan |
| LED indicators | Yes |
| Security algorithms | 3DES, 128-bit RC4, 128-bit SSL, 256-bit AES, RSA |
| Rack capacity | 1U |
| KVM switch ports quantity | 16 |
| Product colour | Black |
| Cables included | PS/2, Phone (RJ-11), USB |
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Interface | PS/2; USB; VGA |
| Keyboard | |
| Hot keys | Yes |
| Power | |
| AC adapter input voltage | 100 - 250 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Weight | 30.2 lbs (13.7 kg) |
| Width | 18.9" (480.1 mm) |
| Height | 1.73" (43.9 mm) |
| Depth | 27.1" (689.1 mm) |
| Packaging data | |
| Package width | 26.2" (665 mm) |
| Package depth | 32.7" (830.1 mm) |
| Package height | 5.12" (130 mm) |
| Package weight | 41 lbs (18.6 kg) |
| Packaging content | |
| Resource CD | Yes |
| Rack mount kit | Yes |
| Cables included | PS/2, Phone (RJ-11), USB |
| Logistics data | |
| Master (outer) case width | 26.2" (665 mm) |
| Master (outer) case length | 32.7" (830.1 mm) |
| Master (outer) case height | 5.12" (130 mm) |
| Master (outer) case gross weight | 41 lbs (18.6 kg) |
| Products per master (outer) case | 1 pc(s) |
