Black Box

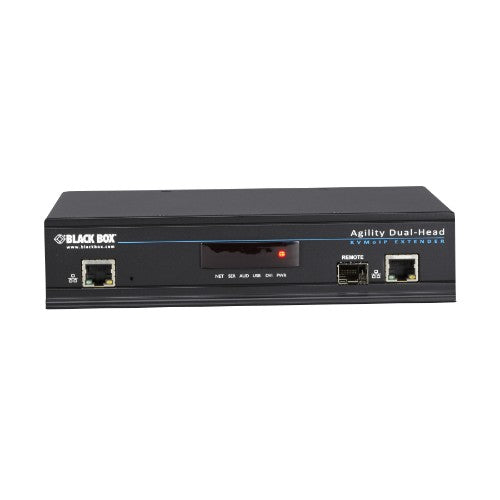

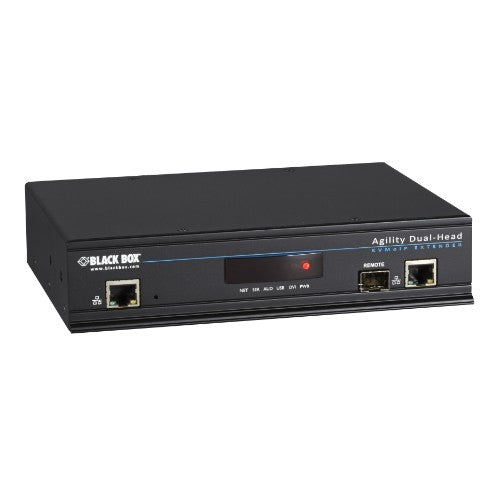

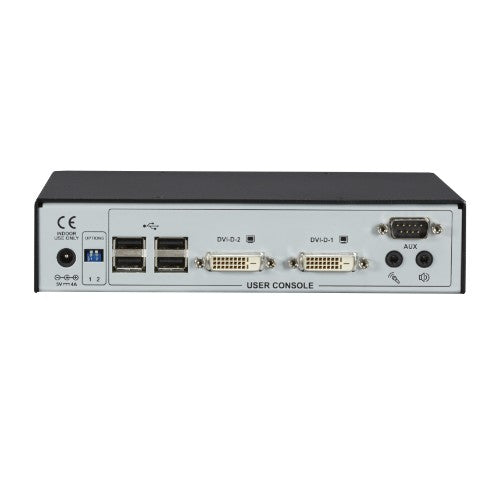

Black Box ACR1020A-R KVM extender Receiver
SKU:
ACR1020A-R
Condition: New
$2,200.35 USD
Pickup currently not available
✔
Factory-Sealed
Sourced from authorized distributors
✔
Manufacturer Warranty
Terms set by the brand
✔
Enterprise Expertise
Business Procurement
Free standard shipping over $2,500
Delivery estimates are based on product availability, destination, fulfillment method, and qualifying order requirements. 30-day returns; 20% restocking fee on non-defective returns. Shipping policy · Return policy
Loading documents...
Need Help Before You Order?
Check compatibility, availability, or volume pricing with an IT procurement specialist.
Enterprise IT Procurement Built for Business
Source servers, networking, storage, workstations, and business technology through established distribution channels with dedicated procurement support.
1,700+
Business Accounts Supported
32,000+
Enterprise Hardware Products Available
Fast, Reliable Procurement Support
Reach out for responsive product availability, part numbers, pricing, and additional hardware needs.
4–8 Hrs
Typical RFQ Response Target
Multi-Vendor
Hardware Sourcing
Keep Your IT Projects Moving
For business hardware purchases and larger deployments, get shipment information, order coordination, and delivery support.
Manufacturer Warranty Coverage
Eligible products include warranty coverage provided by the original manufacturer according to applicable brand and product terms.
Brand Warranty TermsFactory-Sealed HardwareOEM Support Eligibility
A Trusted Source for Enterprise Hardware
Source factory-sealed IT hardware through established technology distribution channels, with support for individual purchases, BOM requests, and larger business requirements.
112+
Technology Brands
32,000+
Hardware Products Available
Key Features
Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver
The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
Key Features
- Dual-head with VNC port for remote access and management
- Maximum resolution is 1920x1080
- No-loss compression minimizes bandwidth use while maximizing the user experience
- Scalable high performance IP-Based KVM Extender and KVM Matrix system
- Magic Eye support to handle dithered video graphics
- Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth
- Data cyncryption via 128-bit AES
Description
Pixel perfect Dual Head DVI-D Video, ultra flexible USB HID and USB2.0, with audio and serial support, Super fast switch times, Scalable high performance IP-Based KVM Extender and KVM Matrix systemThe Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
Specifications
| Features | |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 3937" (100 m) |
| Maximum digital resolution | 1920 x 1080 pixels |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| USB 2.0 ports quantity | 4 |
| Receiver | |
| Receiver local video port type | DVI-D |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB port type | USB Type-A |
| RS-232 ports | 1 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| Weight & dimensions | |
| Transmitter width | 7.91" (20.1 cm) |
| Transmitter depth | 4.8" (12.2 cm) |
| Transmitter height | 1.77" (4.5 cm) |
| Transmitter weight | 28.2 oz (800 g) |
Product Specs
Agility KVM-Over-IP Matrix, Dual-Head DVI-D, USB 2.0, KVM Receiver
The Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
Key Features
- Dual-head with VNC port for remote access and management
- Maximum resolution is 1920x1080
- No-loss compression minimizes bandwidth use while maximizing the user experience
- Scalable high performance IP-Based KVM Extender and KVM Matrix system
- Magic Eye support to handle dithered video graphics
- Supports a second LAN port to switch signals together (Teaming Mode), which increases bandwidth
- Data cyncryption via 128-bit AES
Description
Pixel perfect Dual Head DVI-D Video, ultra flexible USB HID and USB2.0, with audio and serial support, Super fast switch times, Scalable high performance IP-Based KVM Extender and KVM Matrix systemThe Agility IP-Based KVM Extension system transmits Dual Head DVI-D video, USB, USB2.0 and audio signals via an Ethernet local area network (LAN). Send signals up to 330 feet (100 m), or even farther with the addition of network switches. Use the Agility Controller to enable remote secure configuration of transmitters and receivers via a Web browser. The Agility system offers a flexible topology of switching and extension. Use it in point-to-point KVM extension, to multicast HD video, or for single-target sharing. Agility transmits pixel-perfect video with no-loss compression, minimizing bandwidth use while maximizing user experience. Maximum resolution is 1920x1080.
Specifications
| Features | |
|---|---|
| Type | Receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 3937" (100 m) |
| Maximum digital resolution | 1920 x 1080 pixels |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| USB 2.0 ports quantity | 4 |
| Receiver | |
| Receiver local video port type | DVI-D |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| USB port type | USB Type-A |
| RS-232 ports | 1 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| Weight & dimensions | |
| Transmitter width | 7.91" (20.1 cm) |
| Transmitter depth | 4.8" (12.2 cm) |
| Transmitter height | 1.77" (4.5 cm) |
| Transmitter weight | 28.2 oz (800 g) |
