NetShelter 13U Wallmount Rack Cabinet Vented Door Double Hinged Server Depth
APC

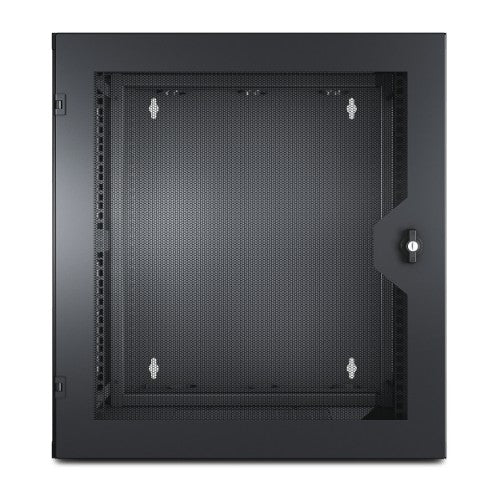

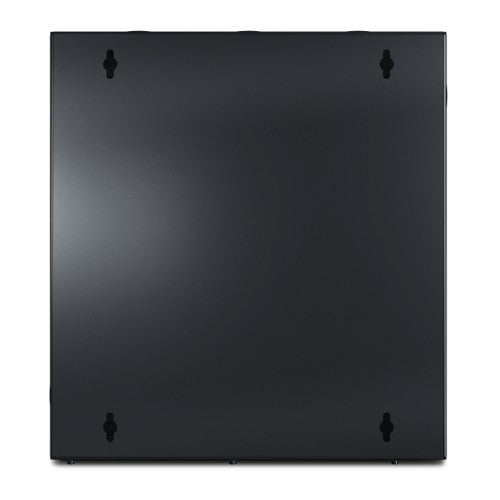

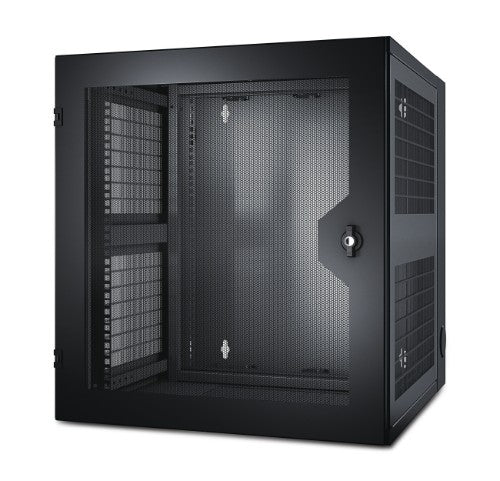

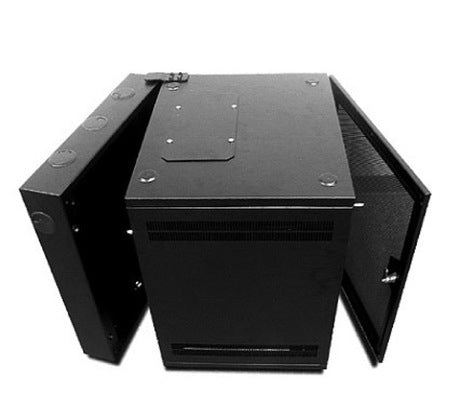

APC NetShelter WX 13U Wall mounted rack Black
Part number:
AR100HD
Sale price
$1,029.99
Regular price
$1,167.00
Save
$137.01
12%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19 rack width, ships fully assembled, vented door, 5 year APC warrantySpecifications
| Features | |
|---|---|
| Size (imperial) | 19" |
| Rack capacity | 13U |
| Front door construction | Perforated |
| Type | Wall mounted rack |
| Maximum weight capacity | 200.4 lbs (90.9 kg) |
| Material | Steel |
| Product colour | Black |
| Certification | EIA-310-D |
| Preassembled | Yes |
| Weight & dimensions | |
| Package weight | 115.3 lbs (52.3 kg) |
| Mounting depth (max) | 19" (48.3 cm) |
| Width | 23" (584 mm) |
| Depth | 24.8" (631 mm) |
| Height | 26.1" (663 mm) |
| Weight | 94.1 lbs (42.7 kg) |
| Size (imperial) | 19" |
| Maximum weight capacity | 200.4 lbs (90.9 kg) |
| Packaging data | |
| Package weight | 115.3 lbs (52.3 kg) |
| Package dimensions (WxDxH) | 27 x 30.5 x 33" (686 x 775 x 838 mm) |
| Technical details | |
| Type | Wall mounted rack |
| Size (imperial) | 19" |
| Rack mounting | Yes |
| Dimensions (WxDxH) | 23 x 24.5 x 25.7" (584 x 622 x 654 mm) |
| Harmonized System (HS) code | 85381000 |
| Total carbon footprint (kg of CO2e) | 158.3 |
| Rack capacity | 13U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | EIA-310-D |
| Material | |
| Material | Steel |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Rack mounting | Yes |
| Package dimensions (WxDxH) | 27 x 30.5 x 33" (686 x 775 x 838 mm) |
| Dimensions (WxDxH) | 23 x 24.5 x 25.7" (584 x 622 x 654 mm) |
