N300 PoE Access Point
Trendnet

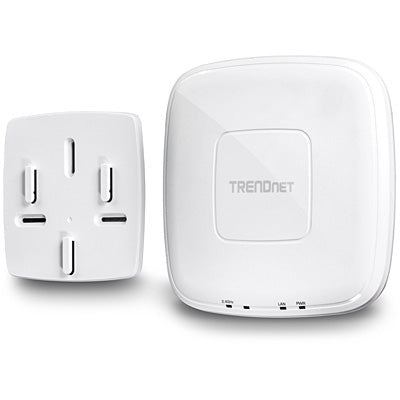

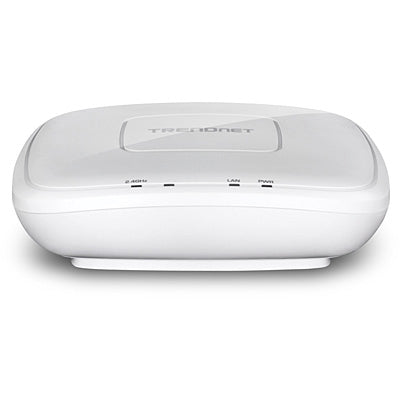

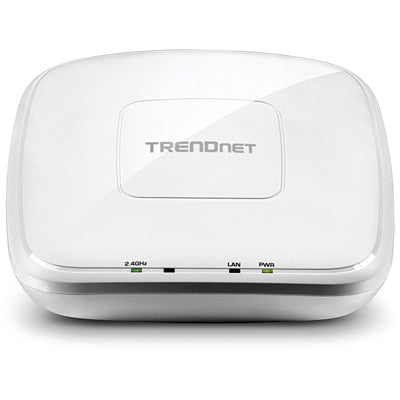

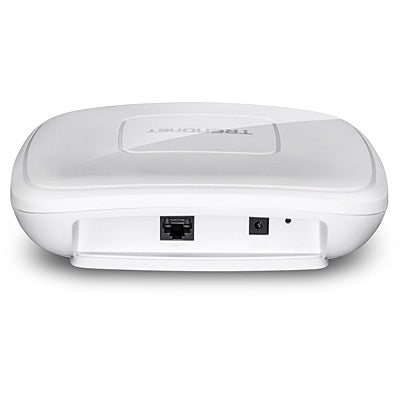

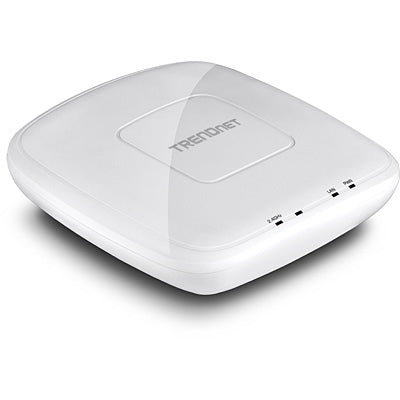

Trendnet TEW-755AP wireless access point 1000 Mbit/s White Power over Ethernet (PoE)
Part number:
TEW-755AP
Sale price
$62.23
Regular price
$78.12
Save
$15.89
20%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- WiFi N300 PoE access point
- Access Point, Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes
- Included software utility aides WiFi network management
- Gigabit PoE LAN port
- Off-white low profile housing blends into the environment
- Mounting plate
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s high performance N300 PoE Access Point, model TEW-755AP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates a 300 Mbps WiFi N network and features a Gigabit PoE port. The included Windows-based software controller manages multiple TEW-755APs and reduces WiFi management/troubleshooting time. A low profile housing blends into most environments and a mounting plate eases installation.Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Flow control support | Yes |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 2.412 – 2.472 |
| Web-based management | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11d, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Modulation | 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, CE |
| Maximum data transfer rate | 1000 Mbit/s |
| Compatible operating systems | Windows 8.1, 8, 7, Vista, XP |
| Wireless LAN features | |
| Frequency band | 2.412 – 2.472 |
| Modulation | 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11b, IEEE 802.11d, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Flow control support | Yes |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Frequency band | 2.412 – 2.472 |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11d, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Modulation | 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Compatible operating systems | Windows 8.1, 8, 7, Vista, XP |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | WEP, WPA, WPA2-PSK, WPA2-RADIUS |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | SNMP v1/v3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 9.6 W |
| Output voltage | 12 V |
| Output current | 1 A |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Table |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| LED indicators | Yes |
| Certification | FCC, CE |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Certificates | |
| Certification | FCC, CE |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 7.36" (187 mm) |
| Depth | 7.36" (187 mm) |
| Weight | 16.1 oz (456 g) |
| Height | 1.81" (46 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| CD manual | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| CD manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| System requirements | |
| Compatible operating systems | Windows 8.1, 8, 7, Vista, XP |
