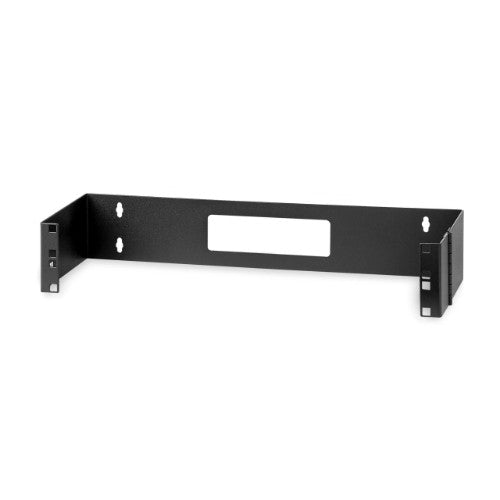

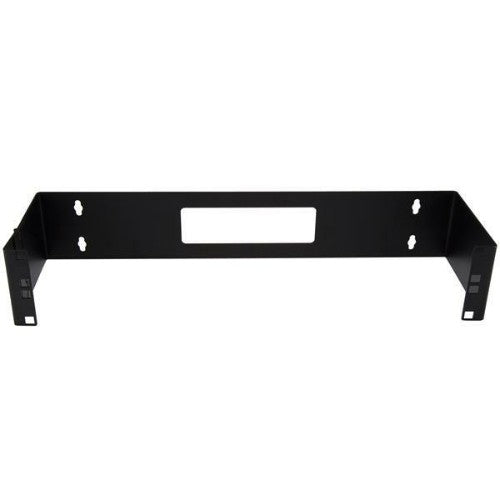

StarTech.com 2U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 22lbs (WALLMOUNTH2)
The WALLMOUNTH2 2U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
StarTech.com
StarTech.com WALLMOUNTH2 rack cabinet 2U Wall mounted rack Black
Part number:
WALLMOUNTH2
Sale price
$31.90
Regular price
$35.99
Save
$4.09
11%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features

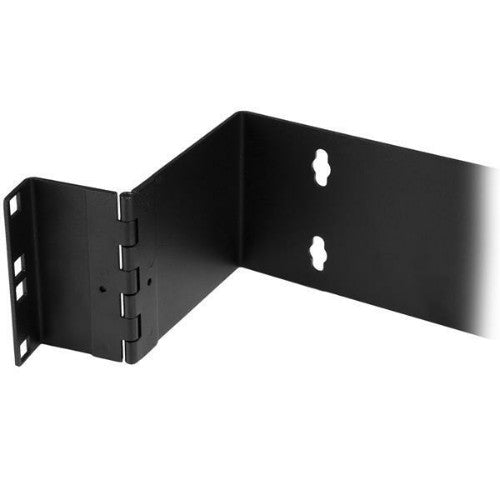

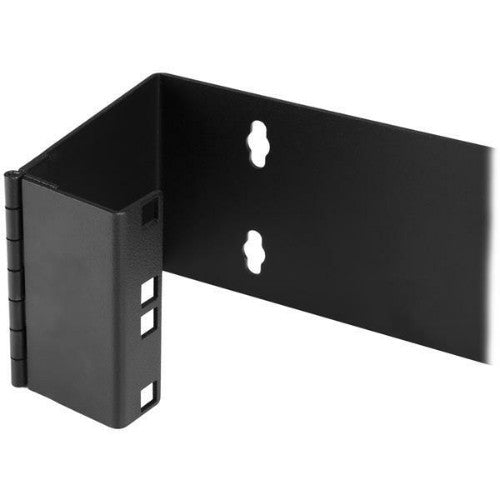

- EASY EQUIPMENT ACCESS: The wall mount patch panel bracket features a hinged design for easy access to configuration buttons, ports and cables, and to the rear of the equipment for easy adjustment
- STURDY CONSTRUCTION: Made of sturdy cold rolled steel, this patch panel network rack is designed to provide a dependable solution for mounting 19in networking/data/IT equipment to a wall

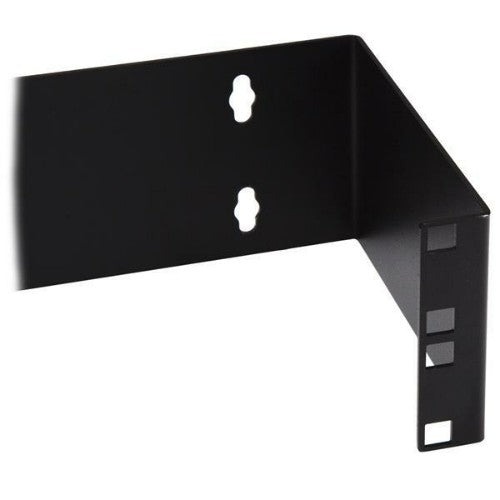

- STANDARDIZED HOLE SIZING: The 2U 19in hinged wall mount bracket is positioned 16in apart, exactly matching standard drywall construction framework to ensure simple and secure wall-stud anchoring
- OPTIMIZED WORKSPACE: This durable 2U hinged wall mount server equipment rack has a maximum mounting depth of 5.8in [14.8cm] and a maximum weight capacity of 22.1 lb [10kg]
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this wall mount bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)The WALLMOUNTH2 2U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.
The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.
Backed by a StarTech.com 2-year warranty.
The StarTech.com Advantage
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 20.2" (514 mm) |
| Package width | 7.01" (178 mm) |
| Package height | 3.98" (101 mm) |
| Package weight | 2.2 lbs (1 kg) |
| Mounting depth (max) | 5.83" (14.8 cm) |

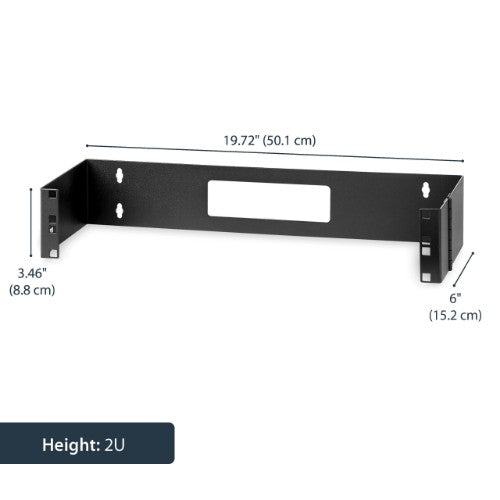

| Width | 19.7" (501 mm) |
| Depth | 5.94" (151 mm) |
| Height | 3.46" (88 mm) |
| Weight | 2.65 lbs (1.2 kg) |
| Maximum weight capacity | 22 lbs (10 kg) |
| Packaging content | |
| Manual | Yes |

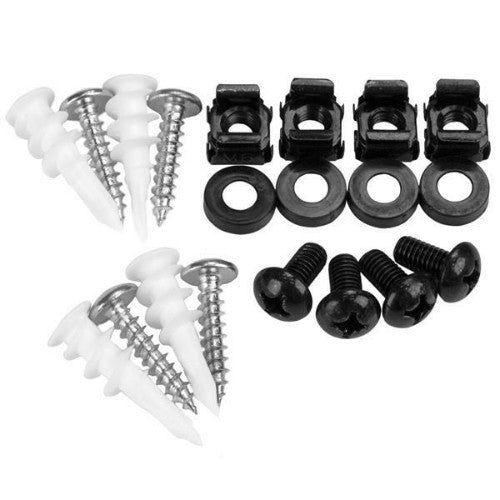

| Nuts included | Yes |
| Number of nuts | 4 |
| Screws included | Yes |
| Number of screws | 8 |
| Number of washers included | 4 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 2U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 22 lbs (10 kg) |
| Material | Aluminum, Steel |
| Product colour | Black |
| Certification | REACH, CE |
| Packaging data | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 4 |
| Package depth | 20.2" (514 mm) |
| Package width | 7.01" (178 mm) |
| Package height | 3.98" (101 mm) |
| Package weight | 2.2 lbs (1 kg) |
| Screws included | Yes |
| Number of screws | 8 |
| Number of washers included | 4 |
| Technical details | |
| Package width | 7.01" (178 mm) |
| Package height | 3.98" (101 mm) |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Rack capacity | 2U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | REACH, CE |
| Material | |
| Material | Aluminum, Steel |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
