6-Port Hardened Industrial Gigabit DIN-Rail Switch
Trendnet
Trendnet TI-G62 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Part number:
TI-G62
Sale price
$158.33
Regular price
$159.99
Save
$1.66
1%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 x Gigabit Ethernet ports
- 1 x shared SFP slot and 1 x dedicated SFP slot
- 12 Gbps switching capacity
- Hardened IP30 rated metal switch

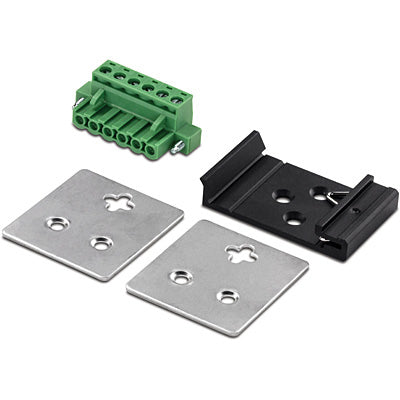

- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- NDAA / TAA compliant
Description
TRENDnet’s TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Dual redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab |
| Full duplex | Yes |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 2048 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | FCC CE |
| Performance | |
| Buffer size | 1024 KB |
| Mean time between failures (MTBF) | 510304 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 3.84 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 5.63" (143 mm) |
| Depth | 4.09" (104 mm) |
| Height | 1.42" (36 mm) |
| Weight | 18.1 oz (514 g) |
| Packaging content | |
| Quick start guide | No |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Quick start guide | No |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 510304 h |
| Housing material | Metal |
| Certificates | |
| Certification | FCC CE |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
