AC1200 Dual Band PoE Indoor Wireless Access Point
Access Point Flexibility
Concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N combined with AP, Client, WDS, and Repeater modes support multiple applications.
Centralized Management
The included Windows based software controller manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time.
Easy Installation
Saves remote location installation time and costs with Gigabit Power over Ethernet (PoE) support and a convenient mounting plate.
Multi-Language
Multi-Language Interface: English, Spanish, French, German, and Russian
Power over Ethernet (PoE)
Saves remote location installation time and costs with Gigabit PoE support (Optional power port for non-PoE installations)
Concurrent Dual Band
AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands
Multi-Mode Support
Supports Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently
Software Controller
The included Windows-based Software Controller manages multiple TEW-821DAPs and reduces WiFi configuration, management, and troubleshooting time
Gigabit Port
Gigabit PoE LAN port maintains high performance connections to the wired network
Wireless Coverage
Extended wireless coverage with MIMO antenna technology
Encrypted Wireless
Support for wireless encryption of up to WPA2
Band Steering
Band steering alleviates network congestion by automatically directing wireless devices from the 2.4 GHz band to the 5 GHz band
WiFi Traffic Shaping
Manage traffic allocation per VLAN for each band separately
Multiple SSIDs
Create up to 8 SSIDs per band (16 total)
Targeted Beamforming
Increased real-time performance by directing stronger wireless signals to your specific location
IPv6
IPv6 network support
Low Profile
Off white low profile shape blends into most environments
LED Control
Further reduce product visibility by turning off LED indicators
Mounting Plate
Mounting plate reduces installation time
Trendnet

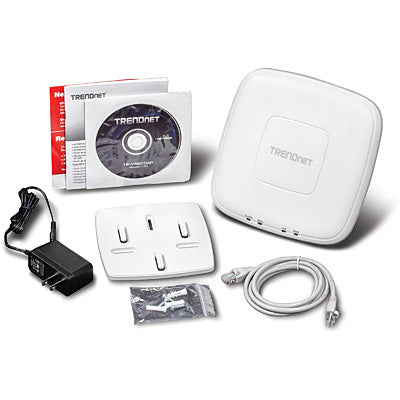

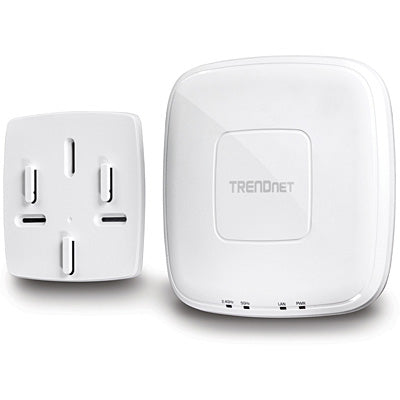

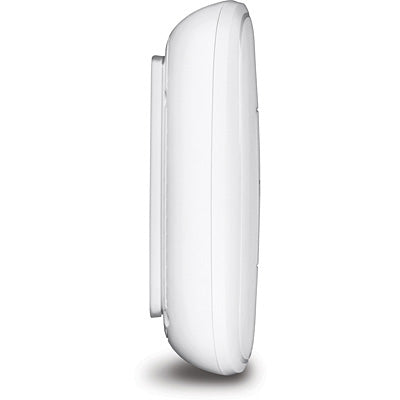

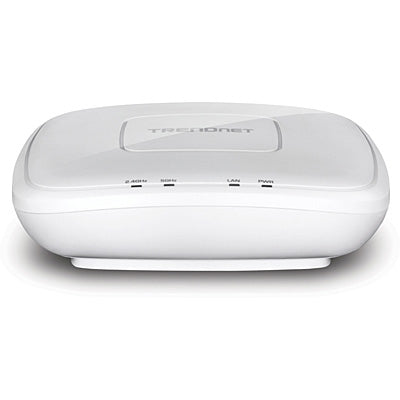

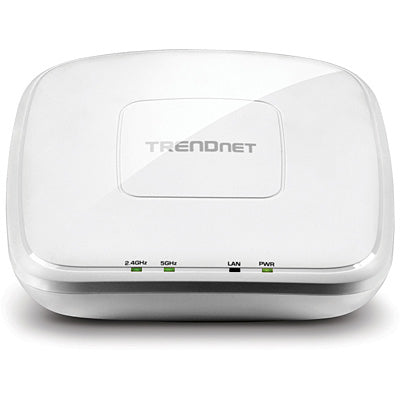

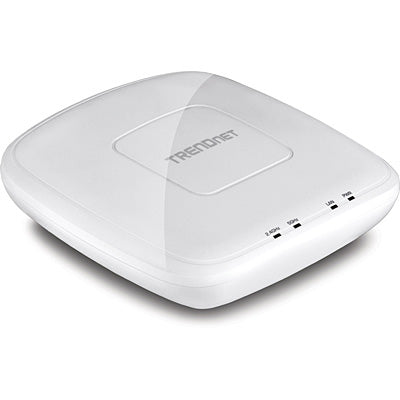

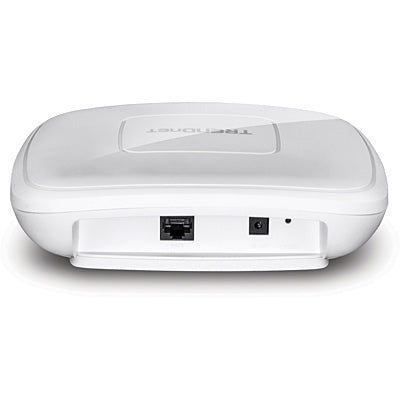

Trendnet TEW-821DAP v1.0R 1000 Mbit/s White
Part number:
TEW-821DAP
Sale price
$90.51
Regular price
$108.17
Save
$17.66
16%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- High performance AC1200 PoE access point
- Wireless AC wave 2 MU-MIMO technology boosts performance in a busy home
- AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
- Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
- Gigabit PoE LAN port
- Low-profile housing blends into most environments
- Includes wall / ceiling mounting plate with cable guard
- Captive portal for hotspot applications
- Compatible with TRENDnet's TEW-WLC100 and TEW-WLC100P wireless controllers
- Remote cloud management with TRENDnet Hive (Additional fee applies)
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s high performance AC1200 Dual Band Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client, Wireless Distribution System (WDS) AP, WDS Bridge, WDS Station, and Repeater modes. It generates concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks. The included Windows-based software controller manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time. It features advanced access control, QoS, traffic management, band steering, and captive portal support. The low profile blends into most environments and a mounting plate eases installation.Access Point Flexibility
Concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N combined with AP, Client, WDS, and Repeater modes support multiple applications.
Centralized Management
The included Windows based software controller manages multiple TEW-821DAPs and reduces WiFi management and troubleshooting time.
Easy Installation
Saves remote location installation time and costs with Gigabit Power over Ethernet (PoE) support and a convenient mounting plate.
Multi-Language
Multi-Language Interface: English, Spanish, French, German, and Russian
Power over Ethernet (PoE)
Saves remote location installation time and costs with Gigabit PoE support (Optional power port for non-PoE installations)
Concurrent Dual Band
AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands
Multi-Mode Support
Supports Access Point (AP), Client, WDS AP, WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently
Software Controller
The included Windows-based Software Controller manages multiple TEW-821DAPs and reduces WiFi configuration, management, and troubleshooting time
Gigabit Port
Gigabit PoE LAN port maintains high performance connections to the wired network
Wireless Coverage
Extended wireless coverage with MIMO antenna technology
Encrypted Wireless
Support for wireless encryption of up to WPA2
Band Steering
Band steering alleviates network congestion by automatically directing wireless devices from the 2.4 GHz band to the 5 GHz band
WiFi Traffic Shaping
Manage traffic allocation per VLAN for each band separately
Multiple SSIDs
Create up to 8 SSIDs per band (16 total)
Targeted Beamforming
Increased real-time performance by directing stronger wireless signals to your specific location
IPv6
IPv6 network support
Low Profile
Off white low profile shape blends into most environments
LED Control
Further reduce product visibility by turning off LED indicators
Mounting Plate
Mounting plate reduces installation time
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| On/off switch | Yes |
| Firmware upgradeable | Yes |
| Spread spectrum method | DSSS |
| Frequency band | 2.412 – 2.472 |
| Web-based management | Yes |
| VLAN support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Modulation | 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC |
| Maximum data transfer rate | 1000 Mbit/s |
| Compatible operating systems | Windows 8.1, 8, 7, Vista, XP |
| Wireless LAN features | |
| Frequency band | 2.412 – 2.472 |
| Modulation | 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Network | |
| Internal | No |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Switch type | Managed |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Spread spectrum method | DSSS |
| Frequency band | 2.412 – 2.472 |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Modulation | 16-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Virtual LAN features | SSID-based VLAN assignment |
| Switch type | Managed |
| Compatible operating systems | Windows 8.1, 8, 7, Vista, XP |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | WEP, WPA, WPA2-PSK, WPA2-RADIUS |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Protocols | |
| Management protocols | SNMP v1/v3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 9.6 W |
| Design | |
| Placement | Table, Wall |
| On/off switch | Yes |
| Product colour | White |
| Internal | No |
| LED indicators | Yes |
| Certification | CE, FCC |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Firmware upgradeable | Yes |
| Switch type | Managed |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 7.36" (187 mm) |
| Depth | 7.36" (187 mm) |
| Weight | 16.1 oz (456 g) |
| Height | 1.81" (46 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| CD quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Package type | Box |
| CD quick installation guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| System requirements | |
| Compatible operating systems | Windows 8.1, 8, 7, Vista, XP |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
