USB 3.1 A/C 2-Port, PCIe, 10Gbps
- Complies with PCI-Express 3.0 standard
- The latest USB generation 3.1 supports data transfer rate up to 10Gb/s (Twice as fast as USB 3.0)
- Supports plug-n-play, hot-swappable, and backwards compatible with USB 1.1 / 2.0 / 3.0
- USB Type-C port provides power output up to 3A (Type-A up to 900mA) to better support the power consumption of connected device
- Each USB port feature independent over-current protection to further protect your device

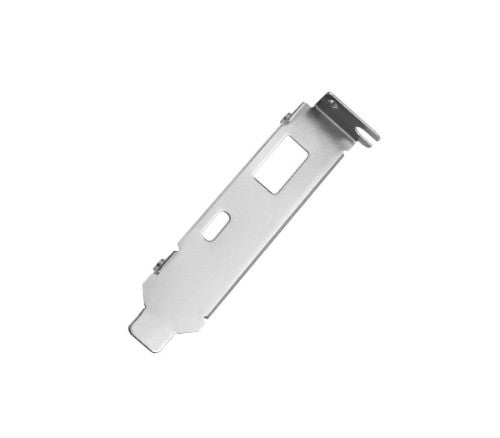

- Dual-profile bracket design (Full and Low Profile) fits different system form factor with included low profile bracket
Siig
Siig JU-P20A12-S1 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Part number:
JU-P20A12-S1
Sale price
$38.77
Regular price
$95.99
Save
$57.22
60%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description

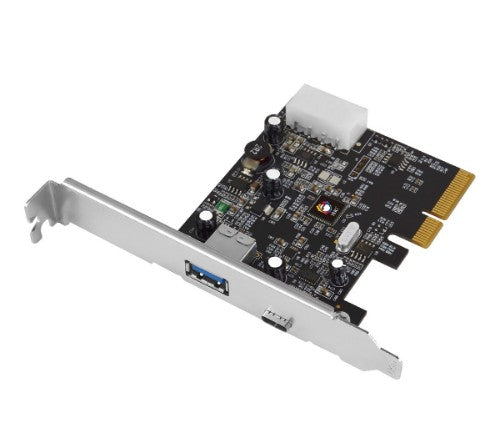

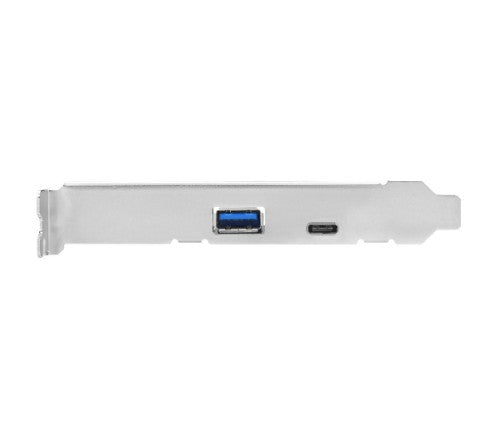

SIIG’s USB 3.1 2-Port PCIe Host Adapter Type-A/C enables you to enhance your desktop computer with the latest USB 3.1 technology, delivering up to 10Gb/s data transfer rates (two times faster than USB 3.0). It adds two USB 3.1 Gen 2 ports (one Type-A and one Type-C) to your desktop computer via an available 4x or larger PCI Express slot. Each USB 3.1 port supports independent over-current protection to protect the connected device and a built-in 4-pin power connector is available to ensure sufficient power is supplied when needed. It is an excellent adapter card to connect high-bandwidth USB devices such as external hard disks, high resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio and more.- Complies with PCI-Express 3.0 standard
- The latest USB generation 3.1 supports data transfer rate up to 10Gb/s (Twice as fast as USB 3.0)
- Supports plug-n-play, hot-swappable, and backwards compatible with USB 1.1 / 2.0 / 3.0
- USB Type-C port provides power output up to 3A (Type-A up to 900mA) to better support the power consumption of connected device
- Each USB port feature independent over-current protection to further protect your device
- Dual-profile bracket design (Full and Low Profile) fits different system form factor with included low profile bracket
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Host interface | PCIe |
| Expansion card standard | PCIe 3.0 |
| Technical details | |
| Chipset | ASM1142 |
| Data transfer rate (max) | 10 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Chipset | ASM1142 |
| Data transfer rate (max) | 10 Gbit/s |
| Product colour | Black |
| Certificates | |
| Certification | - FCC, CE |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | Yes |
| Product colour | Black |
| Certification | - FCC, CE |
| Features | |
| Chipset | ASM1142 |
| Data transfer rate (max) | 10 Gbit/s |
| Power | |
| Power consumption (typical) | 3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 4.72" (119.9 mm) |
| Depth | 0.79" (20.1 mm) |
| Height | 3.46" (87.9 mm) |
| Weight | 1.59 oz (45 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| User guide | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| User guide | Yes |
| Other features | |
| Chipset | ASM1142 |
