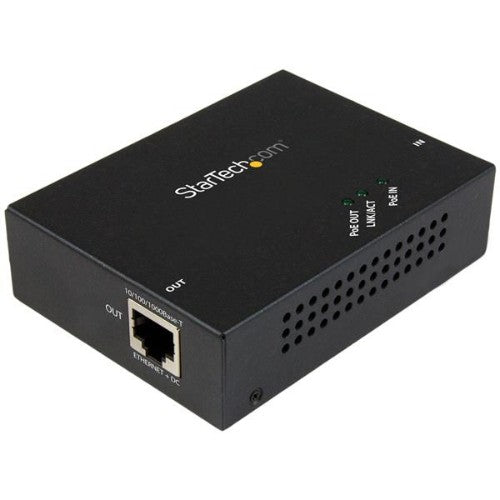

StarTech.com 1 Port Gigabit PoE+ Extender 802.3at & 802.3af - 100m (330ft) - Power over Ethernet Extender - PoE Repeater Network Extender

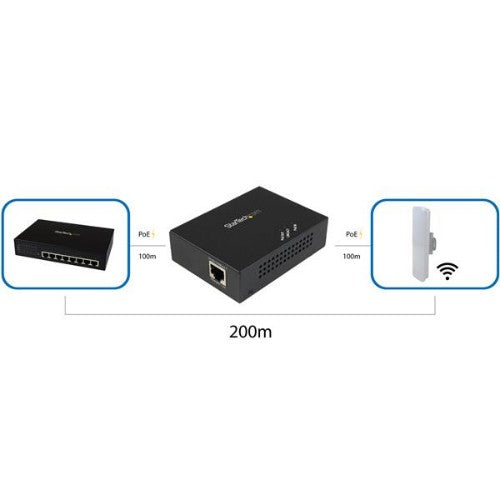

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

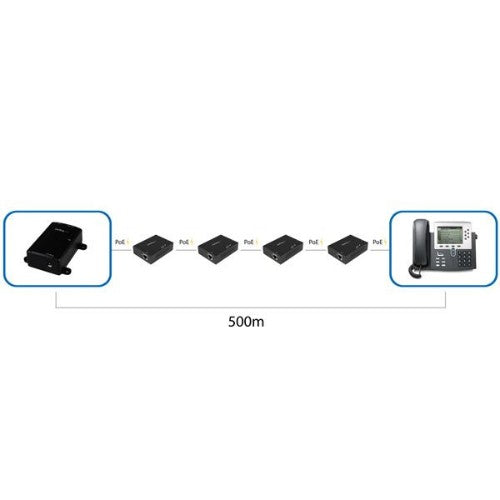

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
StarTech.com
StarTech.com POEEXT1GAT network extender Network repeater Black
Part number:
POEEXT1GAT
Sale price
$129.91
Regular price
$135.99
Save
$6.08
4%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.
You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Performance | |
|---|---|
| Jumbo frames support | No |
| Duplex system | Full, Half |
| Plug and Play | Yes |
| Type | Network repeater |
| Maximum transfer distance | 3937" (100 m) |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 2000 Mbit/s |
| Mean time between failures (MTBF) | 50000 h |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Technical details | |
| Jumbo frames support | No |
| Duplex system | Full, Half |
| Plug and Play | Yes |
| LED indicators | Activity, Link, PoE |
| Type | Network repeater |
| Maximum transfer distance | 3937" (100 m) |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 2000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 2 |
| Design | |
| Housing material | Steel |
| LED indicators | Activity, Link, PoE |
| Certification | CE, FCC, TAA, REACH |
| Product colour | Black |
| Power | |
| Power consumption (max) | 3.2 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 52 - 56 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 2.72" (69 mm) |
| Depth | 3.7" (94 mm) |
| Height | 0.984" (25 mm) |
| Weight | 6.81 oz (193 g) |
| Colour | |
| Product colour | Black |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Packaging content | |

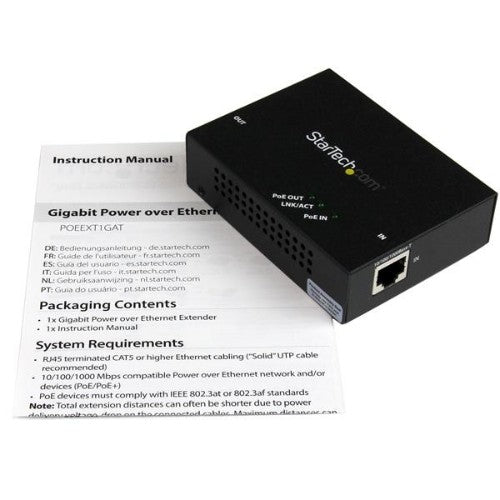

| Manual | Yes |
| Packaging data | |
| Package width | 5.31" (135 mm) |
| Package depth | 8.07" (205 mm) |
| Package height | 2.76" (70 mm) |
| Package weight | 12.1 oz (343 g) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
