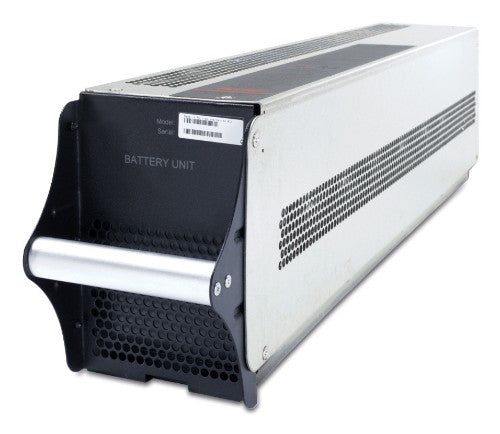

Symmetra PX 9Ah Battery Unit, High Performance

Description

For Symmetra PX 100, it is recommended to replace all four batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 100, you must order battery units in multiples of 2 and you must replace string positions A+B or C+D, as the batteries are connected in pairs. The batteries in each half string must be from the same manufacturer. For Symmetra PX 250/500, it is recommended to replace all six batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 250/500, you must order battery units in multiples of 3 and you must replace the batteries in string position A+B+C or D+E+F, as they are connected in pairs. The batteries in each half string must be from the same manufacturer.

Specifications

Features
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Certification	UL 1778
Number of batteries included	1 pc(s)
Product colour	Black, Metallic
Compatibility	Symmetra PX 100
Technical details
Harmonized System (HS) code	8507.60
Compliance certificates	CE
Certificates
Certification	UL 1778
Compliance certificates	CE
Weight & dimensions
Weight	55.6 lbs (25.2 kg)
Width	4.21" (107 mm)
Height	6.26" (159 mm)
Depth	27.6" (700 mm)
Packaging data
Package width	7.09" (180 mm)
Package height	5.31" (135 mm)
Package depth	32.7" (830 mm)
Package weight	58.4 lbs (26.5 kg)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 39960.6" (0 - 1015 m)
Non-operating altitude	0 - 180000" (0 - 4572 m)
Logistics data
Export Control Classification Number (ECCN)	EAR99
Harmonized System (HS) code	8507.60
