24-Port Managed Power over Ethernet (PoE) Midspan
Amer Networks

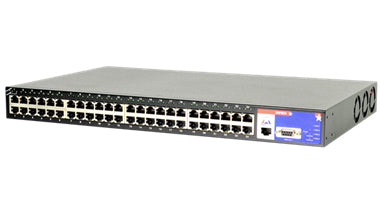

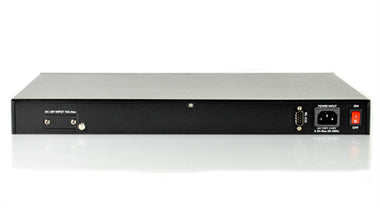

Amer Networks SRPM24 network switch Managed L2+ Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Part number:
SRPM24
Sale price
$428.11
Regular price
$692.31
Save
$264.20
38%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Supply power to PoE devices on demand. The SRPM24 Power over Ethernet (PoE) midspan is ideal for adding PoE functionality to an existing network. Many network devices such as wireless access points and IP telephones support PoE to power the device instead of connecting to a power outlet. The benefits of using PoE include cost savings from not requiring new power outlets to be installed in remote locations, easier portability of devices, more freedom of where to place devices, and providing a central source for supplying power backup. The SRPM24 is designed to be scalable, so only PoE powered devices need to be connected to the unit and non-PoE devices can connect directly to a switch. For ease of management, the SRPM24 supports both SNMP, CLI command line, and a web-based interface to monitor and manage the device.Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | No |
| Switch layer | L2+ |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Console port | RJ-45 |
| ExpressCard slot | Yes |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| 10G support | No |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | FCC Class A, CE Mark Class A, VCCIA, CSA/NRTL (UL60950, CSA 22.2. No 60950-00); TUV/GS (EN60950) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 407 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 17.3" (439 mm) |
| Depth | 11" (279 mm) |
| Height | 1.69" (43 mm) |
| Weight | 13.4 lbs (6.1 kg) |
| Performance | |
| Stackable | No |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Certificates | |
| Certification | FCC Class A, CE Mark Class A, VCCIA, CSA/NRTL (UL60950, CSA 22.2. No 60950-00); TUV/GS (EN60950) |
| Indication | |
| LED indicators | Yes |
