1000T to 1000SX/LC Gigabit desktop USB-powered media converter, Multi-mode LC fiber connector, NA Power Supply + USB Cable, TAA
This desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Allied Telesis

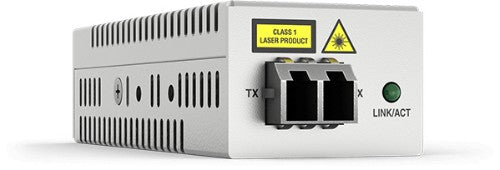

Allied Telesis AT-DMC1000/LC-90 network media converter 1000 Mbit/s 850 nm Multi-mode Gray
Part number:
AT-DMC1000/LC-90
Sale price
$323.17
Regular price
$548.00
Save
$224.83
41%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Gigabit Desktop USB-Powered Media ConverterThis desktop media converter features 1000T to 1000SX conversion with LC multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Copper ethernet cabling technology | 1000BASE-T |
| Fiber ethernet cabling technology | 1000BASE-SX |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.1Q |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Internal | No |
| Compliance certificates | RoHS |
| Performance | |
| Auto-negotiation | Yes |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Yes |
| Design | |
| Safety | U L60950-1, EN 60950-1 |
| LED indicators | Yes |
| Product colour | Gray |
| Certification | FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI |
| Internal | No |
| Power | |
| Input voltage | 5 V |
| Management features | |
| Reset button | Yes |
| Colour | |
| Product colour | Gray |
| Weight & dimensions | |
| Width | 1.25" (31.8 mm) |
| Depth | 3.6" (91.4 mm) |
| Weight | 4 oz (113.4 g) |
| Height | 0.85" (21.6 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Certificates | |
| Safety | U L60950-1, EN 60950-1 |
| Certification | FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI |
