Unmanaged, 4xRJ-45, Gigabit Ethernet, 115V, 60Hz, 3.3W, 62x79x20mm, 200g, Black
The LGB304A is a compact gigabit Ethernet switch with four 10/100/1000 Mbps RJ45 ports. Typical applications include LAN connectivity for small workgroups. The switch is ideal for mobile teams such as auditors that require a small, portable switch to expand port counts. The switch can be powered from a USB port or from the included power adapter. The switch delivers line rate, non blocking throughput. Ports are autonegotiating half/full duplex and include LED indicators to view port status. This unmanaged switch is plug and play and does not require any configuration.
Black Box

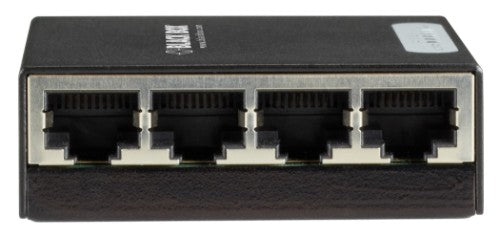

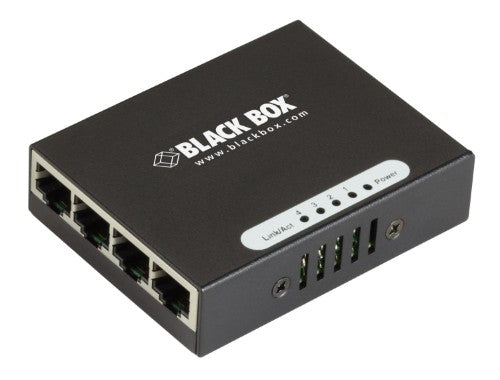

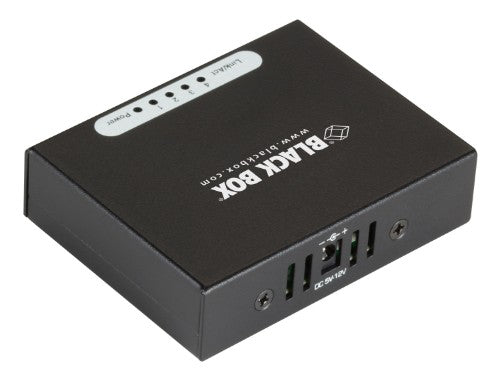

Black Box LGB304A network switch Unmanaged Gigabit Ethernet (10/100/1000)
Part number:
LGB304A
Sale price
$77.66
Regular price
$99.83
Save
$22.17
22%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
DETAILSThe LGB304A is a compact gigabit Ethernet switch with four 10/100/1000 Mbps RJ45 ports. Typical applications include LAN connectivity for small workgroups. The switch is ideal for mobile teams such as auditors that require a small, portable switch to expand port counts. The switch can be powered from a USB port or from the included power adapter. The switch delivers line rate, non blocking throughput. Ports are autonegotiating half/full duplex and include LED indicators to view port status. This unmanaged switch is plug and play and does not require any configuration.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC, CE |
| Performance | |
| Plug and Play | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 3.3 W |
| AC input voltage | 115 V |
| AC input frequency | 60 Hz |
| Weight & dimensions | |
| Width | 2.44" (62 mm) |
| Depth | 3.11" (79 mm) |
| Height | 0.787" (20 mm) |
| Weight | 7.05 oz (200 g) |
| Packaging data | |
| AC adapter included | Yes |
| Included power plug types | US |
| Technical details | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | US |
