StarTech.com Mini DisplayPort to HDMI Adapter - mDP to HDMI Video Converter - 1080p - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/Display/TV - Passive mDP 1.2 to HDMI Dongle - White (MDP2HDW)
The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com

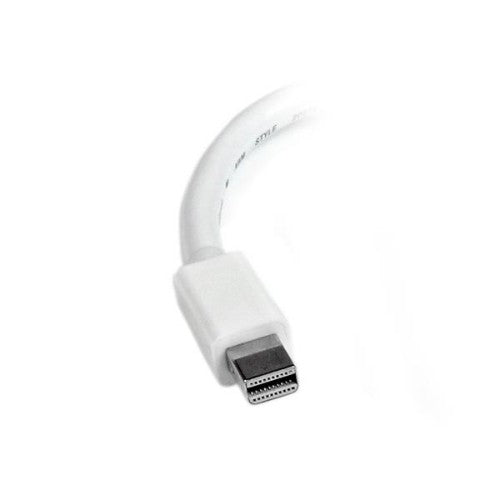

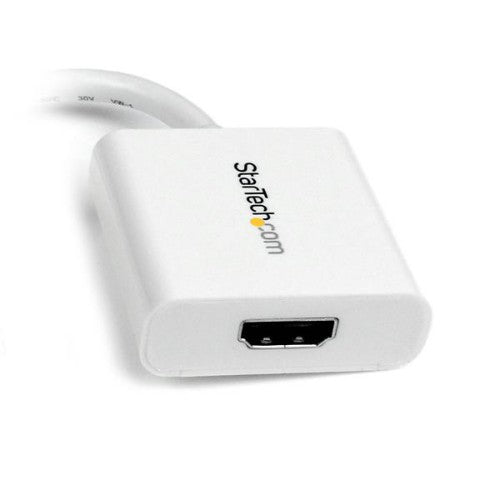

StarTech.com MDP2HDW video cable adapter 4.72" (0.12 m) Mini-DisplayPort HDMI White
Part number:
MDP2HDW
Sale price
$11.52
Regular price
$17.99
Save
$6.47
36%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- PRODUCT PERFORMANCE: Mini DisplayPort 1.2 to HDMI 1.4 adapter connects your mDP host to an HDMI display / Supports 1920x1200 or 1080p 60Hz video, 7.1ch Audio, HDCP 1.4, DPCP / 5" (13cm) attached cable / White
- HOST COMPATIBILITY: Passive Mini DP to HDMI display adapter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Mini DisplayPort to HDMI adapter connects an HDMI monitor, TV or projector, or add a second display to your workstation; Compact, small form factor design makes it easy to carry between home office and office
- RELIABLE CONNECTION: MiniDisplayPort to HDMI video converter is designed with nickel-plated connectors to ensure enhanced signal quality / Tested with HDMI cables up to 50ft (15m)
- EASY TO USE: With no software or drivers required, the mDP to HDMI adapter dongle works with any OS including macOS, Windows & Ubuntu; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Description
Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computerThe MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| Chipset | NXP - PTN3361 |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Product colour | White |
| Cable length | 4.72" (0.12 m) |
| Connector 1 | Mini-DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| HDCP | Yes |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDCP version | 1.4 |
| DisplayPort Content Protection (DPCP) | Yes |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Other features | |
| Width | 1.57" (40 mm) |
| Height | 0.591" (15 mm) |
| Depth | 6.69" (170 mm) |
| Material | Plastic |
| Weight & dimensions | |
| Width | 1.57" (40 mm) |
| Height | 0.591" (15 mm) |
| Depth | 6.69" (170 mm) |
| Weight | 0.847 oz (24 g) |
| Package width | 6.3" (160 mm) |
| Package depth | 9.45" (240 mm) |
| Package height | 0.787" (20 mm) |
| Package weight | 1.76 oz (50 g) |
| Packaging data | |
| Package width | 6.3" (160 mm) |
| Package depth | 9.45" (240 mm) |
| Package height | 0.787" (20 mm) |
| Package weight | 1.76 oz (50 g) |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 10.6" (270 mm) |
| Master (outer) case length | 17.9" (455 mm) |
| Master (outer) case height | 14" (355 mm) |
| Products per master (outer) case | 200 pc(s) |
| Harmonized System (HS) code | 84733080 |
