5 Port 10/100/1000 Desktop Switch, 4 x 10/100/1000 PoE 802.3at, 1xGIG Uplink
Amer Networks

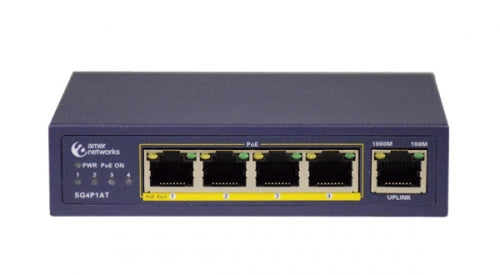

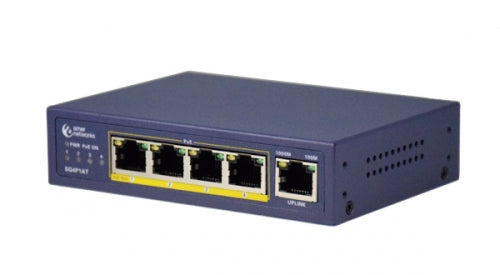

Amer Networks SG4P1AT network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
Part number:
SG4P1AT
$60.26
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Designed for use with Power over Ethernet (PoE) devices, the SG4P1AT switch provides up to 25.5W of power to 802.3at PoE compatible devices connected to the switch’s PoE ports. The Switch allows these devices to draw power from the switch and remove the need for a power adapter. Some devices that may have support for 802.3at are Wireless Access Points, IP Phones and IP Cameras. The Switch’s ports automatically negotiate between 10 BASE-T, 100 BASE-TX and 1000BASE-T network speeds, as well as between full and half duplex modes, so any port can connect to a Fast Ethernet or Ethernet network. The ports also support Auto MDIX, allowing the automatic detection of a straight through or cross-over cable, this feature reduces support problems commonly caused by incorrect cable usage.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Web-based management | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Network | |
| Cable types supported | Cat5 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 1000 entries |
| Switching capacity | 8 Gbit/s |
| Store-and-forward | Yes |
| Design | |
| Wall mountable | Yes |
| Product colour | Gray |
| LED indicators | Activity, Link, PoE, Power, Power fail |
| Housing material | Metal |
| Rack mounting | No |
| Performance | |
| Buffer size | 3000 KB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (typical) | 100 W |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 96 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 4.65" (118 mm) |
| Depth | 3.35" (85 mm) |
| Height | 1.1" (28 mm) |
| Weight | 10.9 oz (310 g) |
| Technical details | |
| Product colour | Gray |
| Housing material | Metal |
| Rack mounting | No |
| Indication | |
| LED indicators | Activity, Link, PoE, Power, Power fail |
