1x Gigabit data/power in, 1x Gigabit data out, 1x Power out, LED
PoE
Compatible with PoE (802.3af ) network connections.

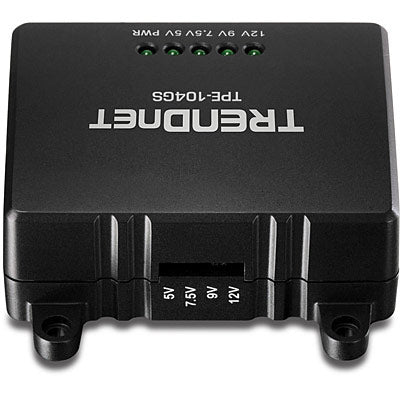

Adjustable Dip Switch
A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements.
Jumper Cables
The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device.
No Power Adapter
The TPE-104GS is powered by the PoE connection.
Mounting
Built-in mounting points increase installation flexibility.
Trendnet

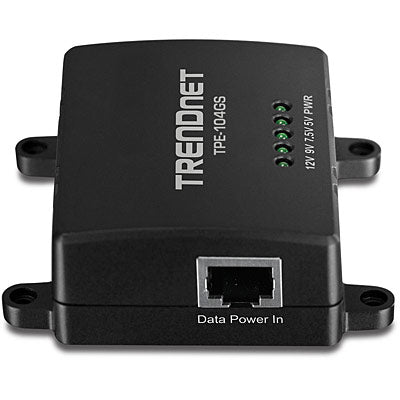

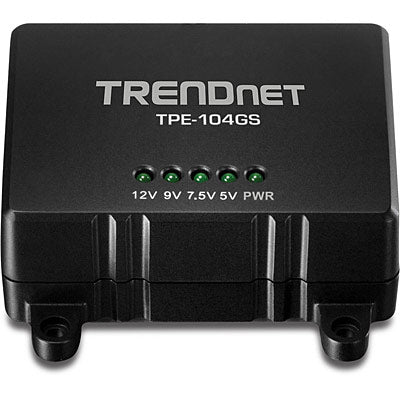

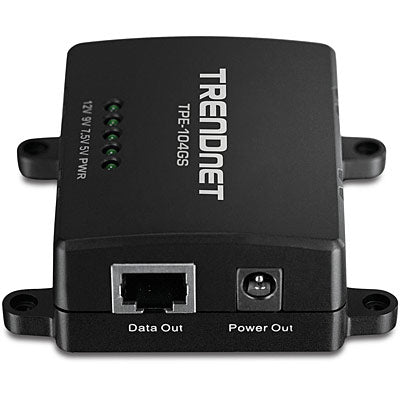

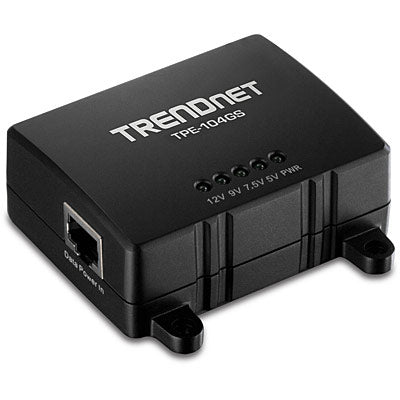

Trendnet TPE-104GS network splitter Power over Ethernet (PoE) Black
Part number:
TPE-104GS
Sale price
$14.92
Regular price
$14.99
Save
$0.07
0%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Install a non-PoE device in a remote location
- Splits a Gigabit PoE signal into separate power and Gigabit data sources
- Set the output power to either 5 V, 7.5 V, 9 V, or 12 V
- Use this compact device with TRENDnet PoE switches or injectors
- Save on installation and equipment costs
Description
TRENDnet’s Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements. The included 2 and 2.5 mm jumper cables increase power pin device compatibility.PoE
Compatible with PoE (802.3af ) network connections.
Adjustable Dip Switch
A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements.
Jumper Cables
The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device.
No Power Adapter
The TPE-104GS is powered by the PoE connection.
Mounting
Built-in mounting points increase installation flexibility.
Specifications
| Features | |
|---|---|
| LED indicators | Yes |
| Duplex system | Full, Half |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Product colour | Black |
| Cabling technology | 10/100/1000Base-T(X) |
| Certification | CE, FCC |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Weight | 2.12 oz (60 g) |
| Height | 0.984" (25 mm) |
| Depth | 1.77" (45 mm) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Network | |
| Duplex system | Full, Half |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Power over Ethernet (PoE) | Yes |
| Performance | |
| Duplex system | Full, Half |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| LED indicators | Yes |
| Certification | CE, FCC |
| Product colour | Black |
| Power | |
| Output current (5V) | 2 A |
| Output current (9V) | 1.7 A |
| Output current (12V) | 1.2 A |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 5, 7.5, 9, 12 V |
| Input voltage | 48 DC |
| Technical details | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
