5GHz 300Mbps 13dBi Outdoor CPE, 560 Mhz, 64MB DDR2 RAM, 8MB Flash, IPX5, IEEE 802.11 a/n, 27dBm/500mw (Adjustable power by 1dBm)
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
TP-Link

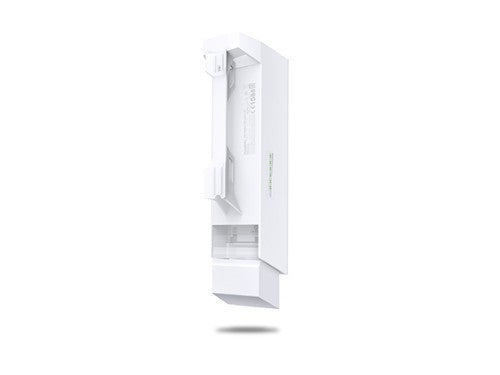

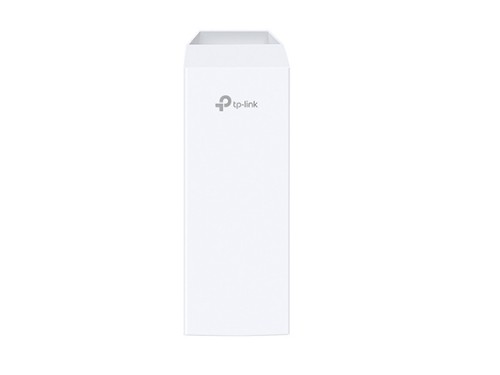

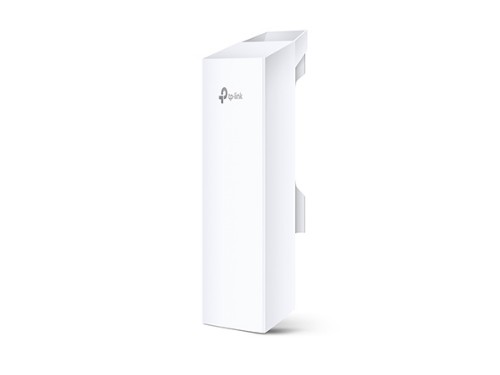

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Part number:
CPE510
$51.92
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Description
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 300 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Performance | |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Reset button | Yes |
| Bandwidth | 5 GHz |
| Frequency band | 5.15 - 5.85 GHz |
| Web-based management | Yes |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Maximum outdoor range | 590551.2" (15000 m) |
| Management platform | Pharos Control |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS |
| Maximum data transfer rate | 300 Mbit/s |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Built-in processor | Yes |
| Wireless LAN features | |
| Frequency band | 5.15 - 5.85 GHz |
| Maximum outdoor range | 590551.2" (15000 m) |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Bandwidth | |
| Bandwidth | 5 GHz |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Features | |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Bandwidth | 5 GHz |
| Frequency band | 5.15 - 5.85 GHz |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Maximum outdoor range | 590551.2" (15000 m) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 300 Mbit/s |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Built-in processor | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | TDMA |
| Management features | |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Ports & interfaces | |

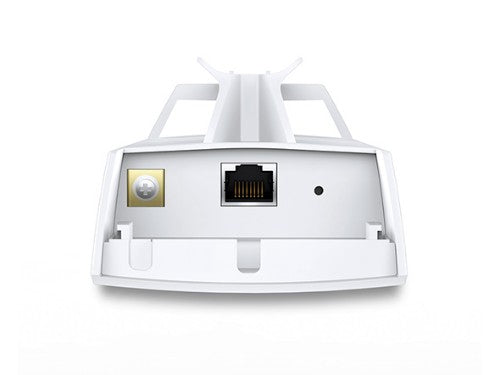

| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (typical) | 13 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.8 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| LED indicators | Yes |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS |
| Antenna | |
| Antennas quantity | 1 |
| Antenna gain level (max) | 13 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Reset button | Yes |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 8.82" (224 mm) |
| Depth | 2.95" (75 mm) |
| Height | 2.36" (60 mm) |
| Packaging data | |
| Cables included | AC |
| Packaging content | |
| Cables included | AC |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
