StarTech.com 5m USB 2.0 Active Extension Cable M/F - 5 meter USB A Male to USB A Female USB 2.0 Repeater / Extender Cable - Black - 15ft
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.
If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.
The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
- No USB signal loss, even at a distance of up to 15 feet (5 meters)
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together for reaching connection distances of up to 20-meters between your USB 2.0 devices
StarTech.com

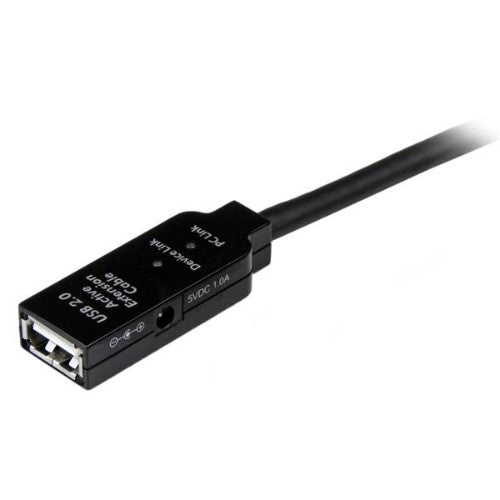

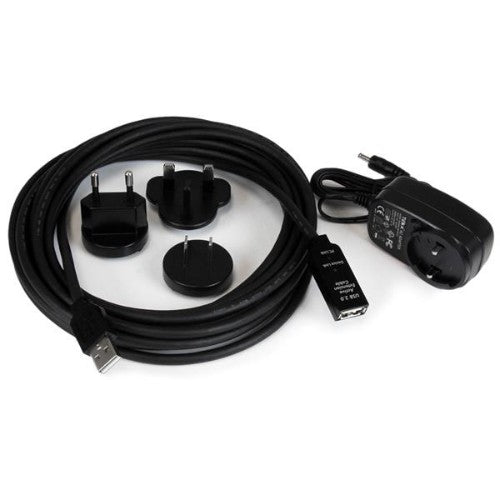

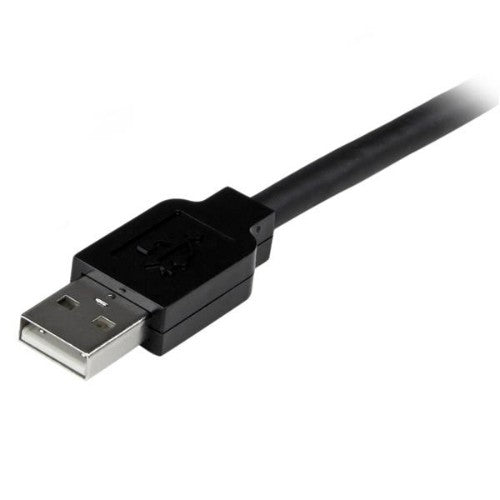

StarTech.com USB2AAEXT5M USB cable USB 2.0 196.9" (5 m) USB A Black
Part number:
USB2AAEXT5M
Sale price
$42.00
Regular price
$50.99
Save
$8.99
18%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
The USB2AAEXT5M 5m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 5-meters (15-feet).An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 4 cables for a total USB extension of up to 20-meters.
If necessary, the cable can be powered from a wall outlet using the Universal AC power adapter that was provided with the cable – this will allow you to use USB bus-powered devices that may require extra power.
The USB2AAEXT5M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
- No USB signal loss, even at a distance of up to 15 feet (5 meters)
- Power your USB devices directly from the USB port or through the included universal external power adapter
- Daisy chain up to 4 cables together for reaching connection distances of up to 20-meters between your USB 2.0 devices
Specifications
| Features | |
|---|---|
| Connector gender | Male/Female |
| Cable shielding | Aluminum mylar foil |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| Reversible connectors | No |
| AWG wire size | 24 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 196.9" (5 m) |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Certification | CE, FCC |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 0.48 Gbit/s |
| Output voltage | 5 V |
| Output current (max) | 1 A |
| Weight | 10.1 oz (286 g) |
| Quantity per pack | 1 pc(s) |
| Power | |
| Output voltage | 5 V |
| Output current (max) | 1 A |
| Weight & dimensions | |
| Cable length | 196.9" (5 m) |
| Weight | 10.1 oz (286 g) |
| Package width | 8.9" (226 mm) |
| Package depth | 8.46" (215 mm) |
| Package height | 2.28" (58 mm) |
| Package weight | 16.6 oz (472 g) |
| Packaging data | |
| Package width | 8.9" (226 mm) |
| Package depth | 8.46" (215 mm) |
| Package height | 2.28" (58 mm) |
| Package weight | 16.6 oz (472 g) |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Other features | |
| Product colour | Black |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
