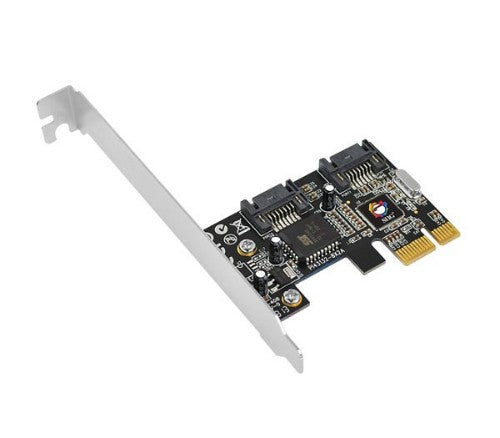

DP SATA II PCIe

Description

SIIG’s DP SATA II PCIe host controller is an ideal solution in expanding your SATA storage capacity to your PCIe-equipped desktop computer. It is designed to add two SATA channels for connecting up to two SATA hard disk drives. The DP SATA II PCIe host controller delivers data transfer rates of up to 3.0Gb/s and supports 48-bit LBA for drives with capacity up to 4TB. Additional features supported by this Serial ATA host controller include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ and Out-of-order data delivery NCQ ensure fast and reliable data transfers.

Features
- PCI Express 1-lane (x1) SATA II adapter works with PCI Express slots with different lane width
- Installs in any available PCI Express slot
- Supports two independent Serial ATA channels
- Dual profile design to work with full height and low profile chassis with included brackets

Specifications

Ports & interfaces
Internal	Yes
Output interface	SATA
Internal SATA ports quantity	2
Host interface	PCIe
Technical details
Chipset	Sil3132
Compliance certificates	RoHS
Performance
Chipset	Sil3132
Certificates
Certification	FCC, CE, RoHS
Design
Internal	Yes
Certification	FCC, CE, RoHS
Features
Chipset	Sil3132
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	5.12" (130 mm)
Depth	0.787" (20 mm)
Height	3.03" (76.9 mm)
Weight	1.28 oz (36.2 g)
Other features
Chipset	Sil3132
