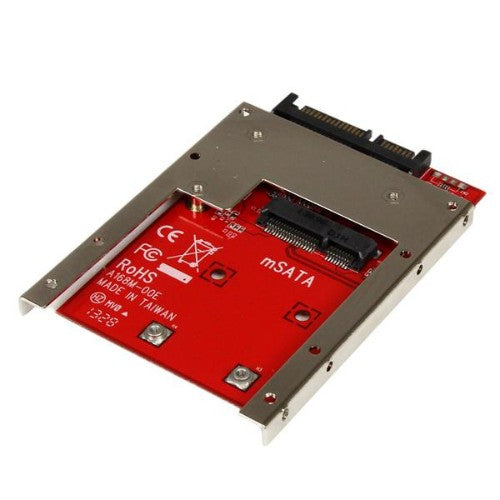

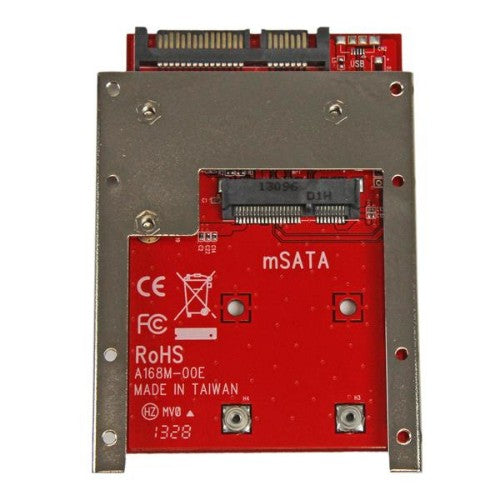

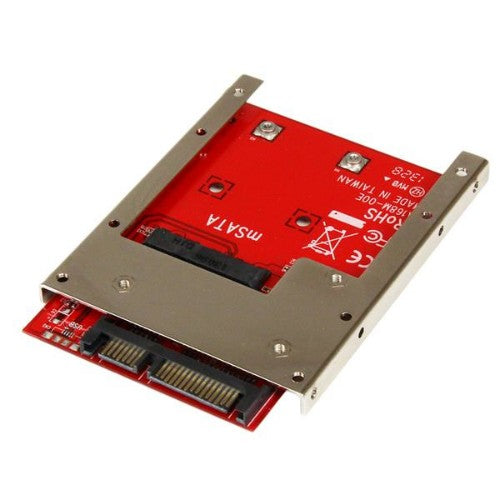

StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter for 2.5in bay with Open Frame Bracket and 7mm Drive Height
Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.
The SAT32MSAT257 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
- Maximize system speed by adding SSD performance
- Help prevent your drive from failure, with open frame aluminum housing providing excellent heat dissipation
- Reduce overall power consumption, with a high efficiency mSATA SSD
StarTech.com
StarTech.com SAT32MSAT257 interface cards/adapter Internal mSATA
Part number:
SAT32MSAT257
Sale price
$25.82
Regular price
$29.99
Save
$4.17
14%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5" SATA application, with the SAT32MSAT257 mSATA to SATA adapter.Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your DATA transfer bottle neck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
Help protect the health of your drive with an open frame design ensuring maximum heat dissipation.
The SAT32MSAT257 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
- Maximize system speed by adding SSD performance
- Help prevent your drive from failure, with open frame aluminum housing providing excellent heat dissipation
- Reduce overall power consumption, with a high efficiency mSATA SSD
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | mSATA |
| SATA revision | 3.0 |
| Host interface | SATA |
| Technical details | |
| Data transfer rate (max) | 6 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Black, Red, Silver |
| Harmonized System (HS) code | 84733020 |
| Certificates | |
| Certification | CE, FCC |
| Colour | |
| Product colour | Black, Red, Silver |
| Design | |
| Internal | Yes |
| Product colour | Black, Red, Silver |
| Certification | CE, FCC |
| Features | |
| Data transfer rate (max) | 6 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Height | 0.276" (7 mm) |
| Weight | 1.69 oz (48 g) |
| Package width | 6.85" (174 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 0.118" (3 mm) |
| Package weight | 1.16 oz (33 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 6.85" (174 mm) |
| Package depth | 5.67" (144 mm) |
| Package height | 0.118" (3 mm) |
| Package weight | 1.16 oz (33 g) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |

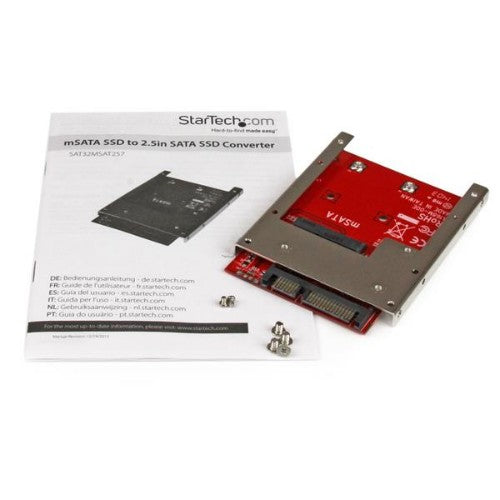

| Packaging content | |
| Mounting brackets included | Yes |
| Manual | Yes |
