5 Port Unmanaged Ethernet Switch Wall Mountable
- No software needed: Simply plug in any ethernet cable.
- All Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cables
- Automatic detection of data transmission speed: 10 or 100 MBps 2k Byte maximum packet size – improves the efficiency of bulk data transfer and system performance
- Easy Wire Removable screw terminal block
- Wide Range Input Power: +5VDC to +30VDC
- Power consumption is optimised based on the status of the link device
- Wall mount holes compatible with MK-048 DIN mount clips
- IP30 Non-conducting polyamide case 0ºC to +60ºC/+32ºF to +140ºF temperature range
Brainboxes

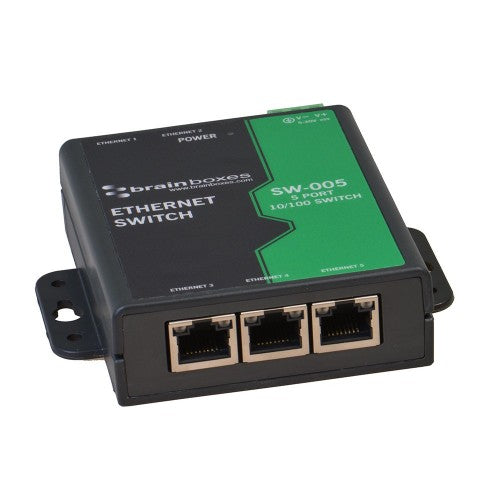

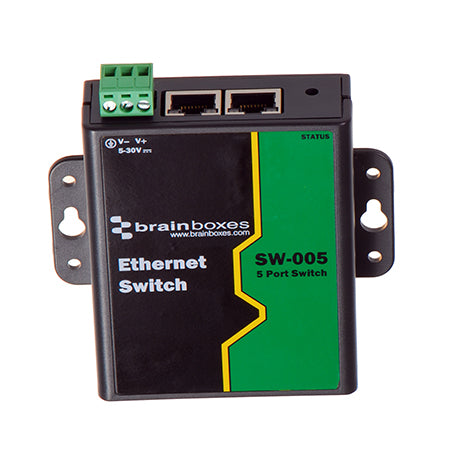

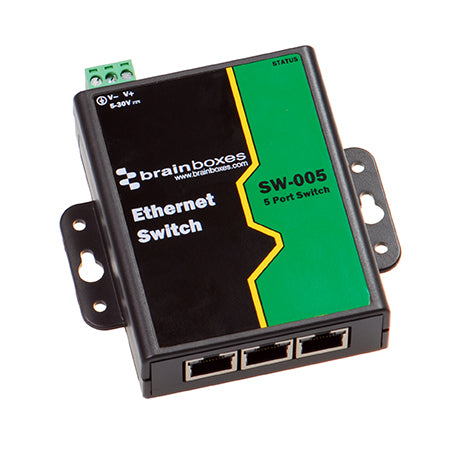

Brainboxes SW-005 network switch Unmanaged Fast Ethernet (10/100) Black, Green
Part number:
SW-005
Sale price
$47.33
Regular price
$55.92
Save
$8.59
15%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 5 Port Ethernet Switch
- Wide Power Input: +5V to +30V DC
- Wall Mountable, or DIN rail mountable with optional accessory
- No software required
- Lifetime Support and Lifetime Warranty
Description
Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available (see MK-048).- No software needed: Simply plug in any ethernet cable.
- All Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cables
- Automatic detection of data transmission speed: 10 or 100 MBps 2k Byte maximum packet size – improves the efficiency of bulk data transfer and system performance
- Easy Wire Removable screw terminal block
- Wide Range Input Power: +5VDC to +30VDC
- Power consumption is optimised based on the status of the link device
- Wall mount holes compatible with MK-048 DIN mount clips
- IP30 Non-conducting polyamide case 0ºC to +60ºC/+32ºF to +140ºF temperature range
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | Terminal block (3-pin) |
| Network | |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| Product colour | Black, Green |
| Stackable | No |
| LED indicators | Activity, Link, Speed |
| Housing material | Polyamide |
| Rack mounting | No |
| Certification | CE, WEEE, RoHS, AEO |
| Power | |
| Power consumption (max) | 1.1 W |
| DC input voltage | 5 - 30 V |
| Power consumption note | 1.1W Max: 220mA @+5VDC / 36mA @+30VDC |
| Power connector | Terminal block (3-pin) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 4.21" (107 mm) |
| Depth | 4.02" (102 mm) |
| Height | 1.1" (28 mm) |
| Weight | 4.83 oz (137 g) |
| Packaging data | |
| Package width | 6.3" (160 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 1.93" (49 mm) |
| Package weight | 7.8 oz (221 g) |
| Performance | |
| Stackable | No |
| Technical details | |
| Product colour | Black, Green |
| Stackable | No |
| Housing material | Polyamide |
| Rack mounting | No |
| Certificates | |
| Certification | CE, WEEE, RoHS, AEO |
| Indication | |
| LED indicators | Activity, Link, Speed |
