Mini ITX, 18.25L, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type C, 1 x 3.5mm, 1 x 120mm, Black
Compact Yet Powerful
An ultra-sleek 18.25L design delivers unmatched performance and aesthetics with vented steel and tempered glass side panels.
Stay Cool Under Pressure
No performance compromises with support for 240mm/280mm liquid coolers, providing the ultimate in thermal efficiency.
Optimized GPU Performance
An efficient vertical airflow layout supported by a 120mm bottom-mounted fan keeps your GPU extra cool.
Comprehensive GPU Support
Includes vertical mounting options, a custom PCIe 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.
Easy, Tool-free Access
All external panels are secured with pins for easy removal, facilitating quick access to the internals without the use of tools while a removable GPU panel simplified the installation process.
The New Ncore Style
An NCORE redesign provides a sleek take on maximizing cooling performance and style simultaneously.
USB 3.2 Gen 2x2 Type C Support
A USB 3.2 Gen 2x2 Type C port is built into the I/O panel with up to 20Gbps transfer speeds.
Cooler Master

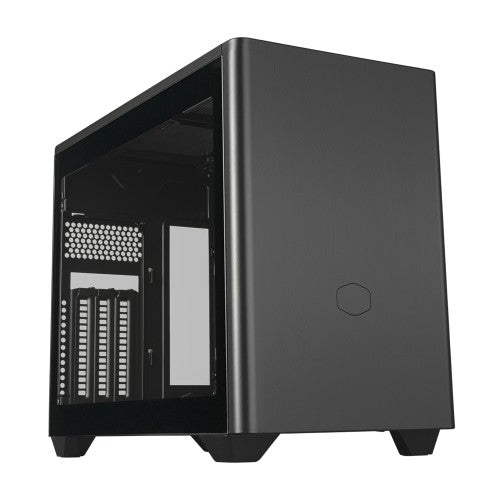

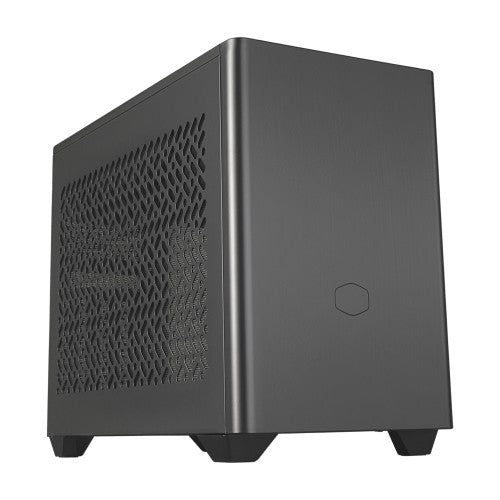

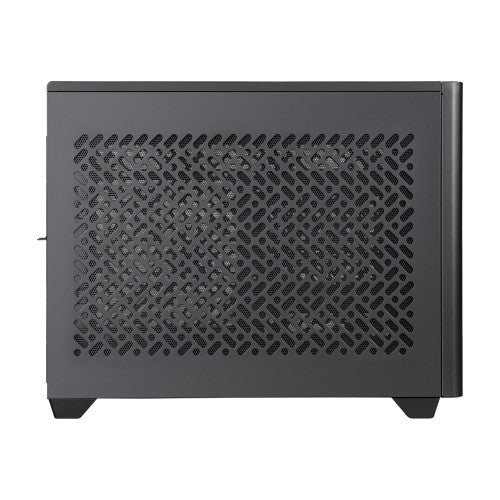

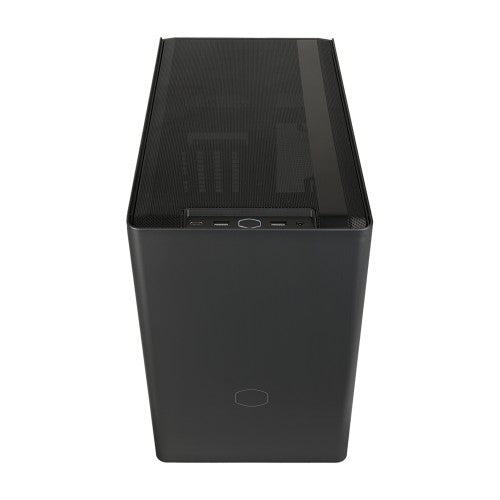

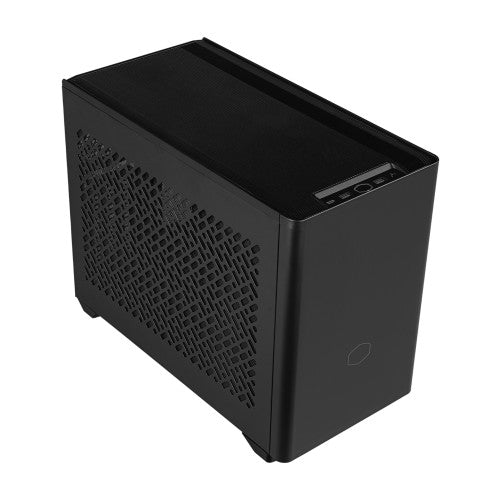

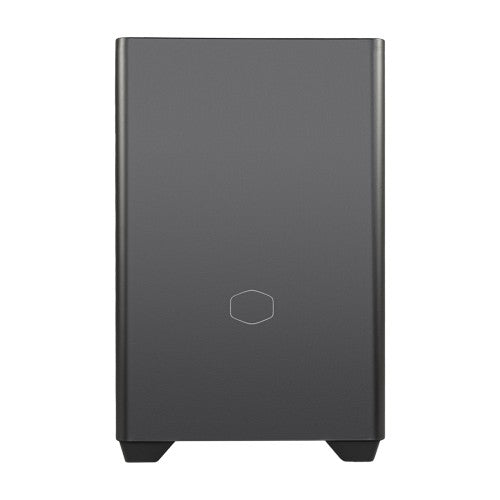

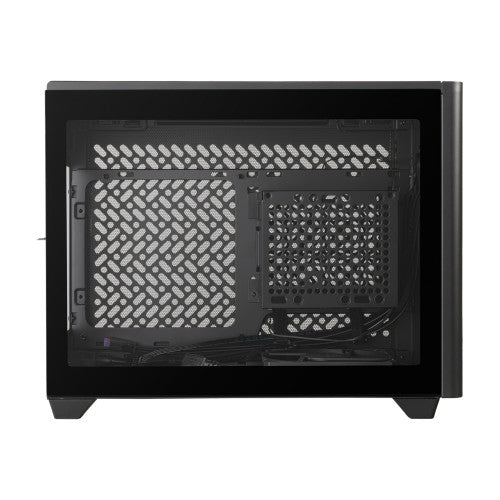

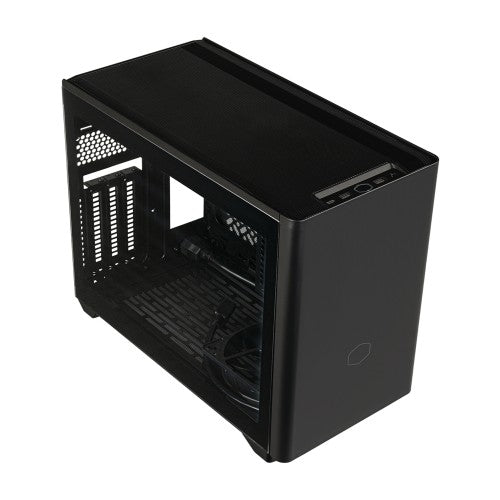

Cooler Master MasterBox NR200P V2 Desktop Black
Part number:
NR200PV2-KCNN-S00
$124.13
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Compact yet powerful
- Stay cool under pressure
- Optimized GPU performance
- Comprehensive GPU support
- Easy, tool-free access
- USB 3.2 Gen 2x2 Type C support
- Refreshed NCORE style
Description
BIG POSSIBILITIES, SMALL SIZECompact Yet Powerful
An ultra-sleek 18.25L design delivers unmatched performance and aesthetics with vented steel and tempered glass side panels.
Stay Cool Under Pressure
No performance compromises with support for 240mm/280mm liquid coolers, providing the ultimate in thermal efficiency.
Optimized GPU Performance
An efficient vertical airflow layout supported by a 120mm bottom-mounted fan keeps your GPU extra cool.
Comprehensive GPU Support
Includes vertical mounting options, a custom PCIe 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.
Easy, Tool-free Access
All external panels are secured with pins for easy removal, facilitating quick access to the internals without the use of tools while a removable GPU panel simplified the installation process.
The New Ncore Style
An NCORE redesign provides a sleek take on maximizing cooling performance and style simultaneously.
USB 3.2 Gen 2x2 Type C Support
A USB 3.2 Gen 2x2 Type C port is built into the I/O panel with up to 20Gbps transfer speeds.
Specifications
| Design | |
|---|---|
| Volume | 18.25 L |
| Anti-dust filter | Yes |
| Material | ABS, Mesh, SGCC, Steel, Tempered glass |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Side window | Yes |
| Product colour | Black |
| Number of expansion slots | 3 |
| Maximum CPU cooler height | 2.64" (6.7 cm) |
| Maximum PSU length | 5.12" (13 cm) |
| Type | PC |
| Form factor | Desktop |
| Technical details | |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | Mini-ITX |
| Supported HDD sizes | 2.5,3.5" |
| Side window | Yes |
| Product colour | Black |
| Number of expansion slots | 3 |
| Maximum CPU cooler height | 2.64" (6.7 cm) |
| Maximum PSU length | 5.12" (13 cm) |
| Type | PC |
| Form factor | Desktop |
| Material | |
| Material | ABS, Mesh, SGCC, Steel, Tempered glass |
| Power supply | |
| Supported power supply form factors | SFX, SFX-L |
| Power supply included | No |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Bottom fans installed | 1x 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Fan speed | 650 - 1800 RPM |
| Pulse-width modulation (PWM) support | Yes |
| Storage | |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Volume | 18.25 L |
| Width | 7.28" (185 mm) |
| Depth | 14.6" (372 mm) |
| Height | 11.5" (292 mm) |
| Weight | 9.59 lbs (4.35 kg) |
| Packaging data | |
| Package width | 11.3" (288 mm) |
| Package height | 17.6" (448 mm) |
| Package depth | 13.8" (350 mm) |
| Package weight | 14.6 lbs (6.6 kg) |
| Other features | |
| Volume | 18.25 L |
