Backplane Bandwidth10 Gbps, Jumbo Frame Support9216 bytes, 100 ~ 240 VAC, 50/60 Hz

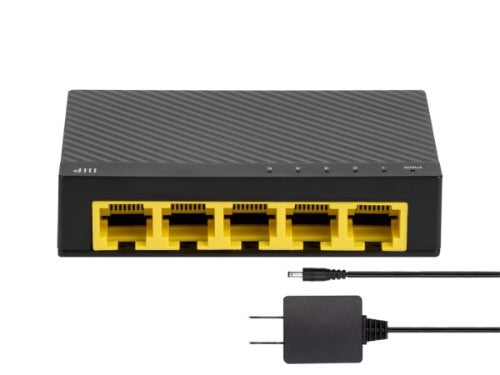

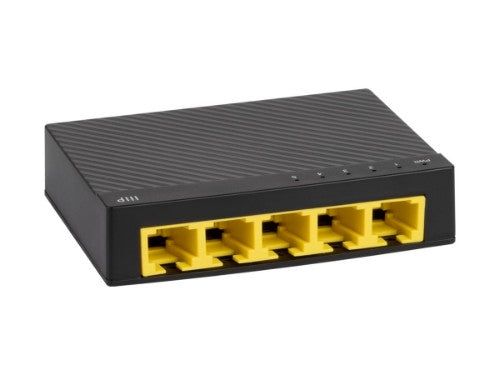

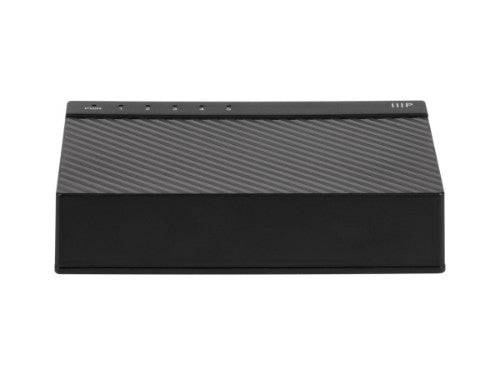

5‑Port Gigabit Ethernet Unmanaged Desktop Switch
10/100/1000Mbps, IEEE 802.3ab, Cat5e, Plug and Play, for Gaming and Streaming
The Monoprice™ 5‑Port Gigabit Ethernet Unmanaged Desktop Switch is a simple and reliable way to add additional connections to your network. Easily connect network‑ready devices, such as gaming consoles and streaming devices, for a robust and fast wired network connection. Give users the fastest speeds possible over Cat5e (or better) cabling to distances up to 328 feet (100 meters). This Gigabit Ethernet Switch provides you with a plug and play (no configuration or setup required), high performance, and standards based solution to upgrade your old network to a Gigabit Ethernet network. Its compact size allows you to place it in confined spaces, such as inside a media panel, or even attach it to a wall. For network installers, this switch is an ideal solution to add data drops, especially since its fanless design ensures silent operation.
REDUCE LAG AND REMOVE BOTTLENECKS FROM YOUR NETWORK
Remove bottlenecks from your home network by upgrading it to a 10/100/1000Mbps Gigabit network with this Gigabit Ethernet switch. Enjoy the fastest possible file transfer speeds and reduced lag with wired connections using Cat5e (or better) cables to distances up to 328 feet (100 meters).
PLUG AND PLAY

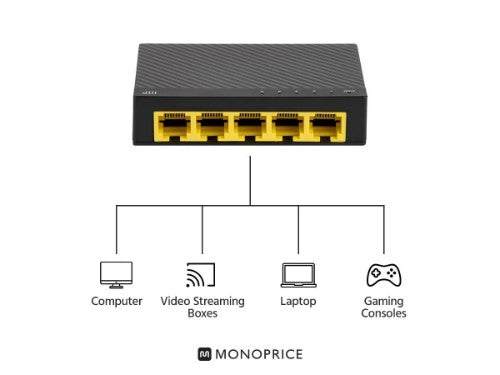

This switch is a true plug and play device, requiring no drivers or special configuration. Simply plug in your network‑enabled devices, such as computers, laptops, gaming consoles, and video streaming boxes, to get the most out of your home network.
COMPACT SIZE
Measuring less than 3.5" wide, this 5‑port Gigabit Switch is compact enough to place in confined spaces, such as media panels or entertainment centers, or mounted to a wall, without taking up too much space.
LED INDICATORS
The LED indicators allow you to see your network status at a glance, with simple diagnostics, such as power status and LAN activity/link status for each port individually.
SUPPORTS AUTO NEGOTIATION AND AUTO MDI/MDIX
This switch supports Auto Negotiation, allowing it to set the optimal duplex mode and speed to communicate each connected device. The Auto MDI/MDIX feature means you don't need to worry about using special crossover cables.
Monoprice
Monoprice 41712 network switch Unmanaged Gigabit Ethernet (10/100/1000)
Part number:
41712
Sale price
$19.67
Regular price
$19.99
Save
$0.32
2%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD

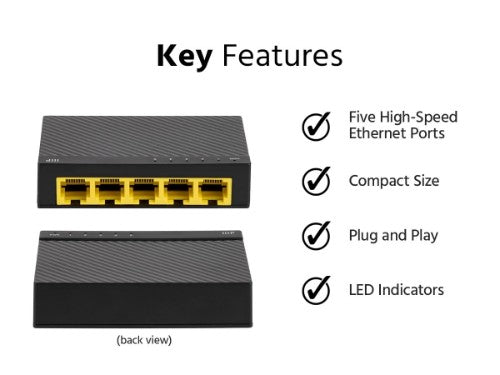

Key Features
- Five 10/100/1000Mbps RJ45 Gigabit Ethernet ports
- Compact size
- Plug and play, no drivers or configuration required
- Supports Auto Negotiation and Auto MDI/MD
- IEEE 802.3x flow control
- 10Gbps backplane bandwidth
- 2K MAC address table
- 9,216 byte jumbo frame support
Description
Monoprice™5‑Port Gigabit Ethernet Unmanaged Desktop Switch
10/100/1000Mbps, IEEE 802.3ab, Cat5e, Plug and Play, for Gaming and Streaming
The Monoprice™ 5‑Port Gigabit Ethernet Unmanaged Desktop Switch is a simple and reliable way to add additional connections to your network. Easily connect network‑ready devices, such as gaming consoles and streaming devices, for a robust and fast wired network connection. Give users the fastest speeds possible over Cat5e (or better) cabling to distances up to 328 feet (100 meters). This Gigabit Ethernet Switch provides you with a plug and play (no configuration or setup required), high performance, and standards based solution to upgrade your old network to a Gigabit Ethernet network. Its compact size allows you to place it in confined spaces, such as inside a media panel, or even attach it to a wall. For network installers, this switch is an ideal solution to add data drops, especially since its fanless design ensures silent operation.
REDUCE LAG AND REMOVE BOTTLENECKS FROM YOUR NETWORK
Remove bottlenecks from your home network by upgrading it to a 10/100/1000Mbps Gigabit network with this Gigabit Ethernet switch. Enjoy the fastest possible file transfer speeds and reduced lag with wired connections using Cat5e (or better) cables to distances up to 328 feet (100 meters).
PLUG AND PLAY
This switch is a true plug and play device, requiring no drivers or special configuration. Simply plug in your network‑enabled devices, such as computers, laptops, gaming consoles, and video streaming boxes, to get the most out of your home network.
COMPACT SIZE
Measuring less than 3.5" wide, this 5‑port Gigabit Switch is compact enough to place in confined spaces, such as media panels or entertainment centers, or mounted to a wall, without taking up too much space.
LED INDICATORS
The LED indicators allow you to see your network status at a glance, with simple diagnostics, such as power status and LAN activity/link status for each port individually.
SUPPORTS AUTO NEGOTIATION AND AUTO MDI/MDIX
This switch supports Auto Negotiation, allowing it to set the optimal duplex mode and speed to communicate each connected device. The Auto MDI/MDIX feature means you don't need to worry about using special crossover cables.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Switching optical modules type | Gigabit Ethernet |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Performance | |
| Auto-negotiation | Yes |
| Technical details | |
| Rack mounting | Yes |
| Warranty period | 1 year(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Optical fiber | |
| Fiber type | Multi-mode |
| Maximum transfer distance (Single-mode) | 3937" (100 m) |
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
| Jumbo frames | 9216 |
| MAC address table | 2 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| LED indicators | Activity, Link, Power |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | 40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 3.43" (87 mm) |
| Depth | 2.4" (61 mm) |
| Height | 0.748" (19 mm) |
| Weight | 4.66 oz (132 g) |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
