GeForce RTX™ 4070 Ti SUPRIM X 12G, PCI Express® Gen 4, 2790 MHz (MSI Center), 2775 MHz (GAMING & SILENT Mode), 7680 Units, 21Gbps, 12 Gb GDDR6X, 192-bit, 285W, 16-pin, 750W, 2019g
SUPRIM and its logo concept are inpired by diamond crystals and geometry.
A celebration of decades of MSI graphics card mastery, SUPRIM is crafted with qualities that evoke prestige.
High-quality materials and construction are emphasized by the geometry of points, lines, and planes.
Powered by GeForce RTX 40 Series and DLSS 3
CHANGE THE GAME
Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.
SHARP LOOKS
The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.
FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.
TRI-FROZR 3S
THERMAL DESIGN
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.
KEEPING THE CORE COOL
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
FILLED FINS
Updated heat pipe pathing has allowed more space for additional heatsink fins.
WAVE-CURVED 3.0
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
METAL BACKPLATE
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
DOUBLE-BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
Ray Tracing
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
NVIDIA Reflex
Victory measured in milliseconds.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
MSI

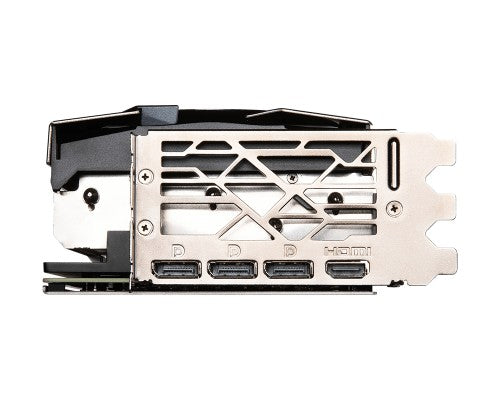

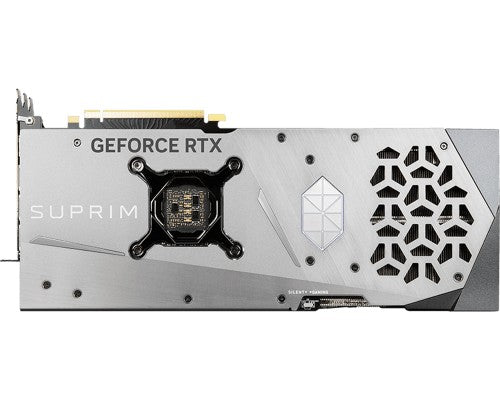

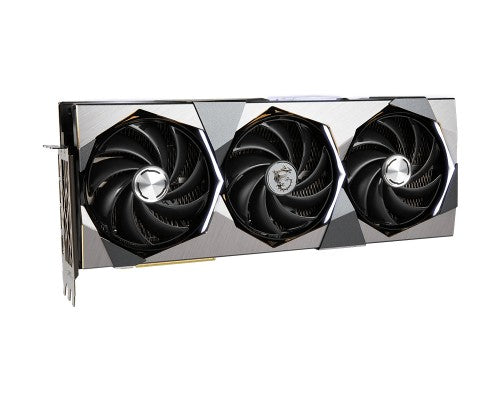

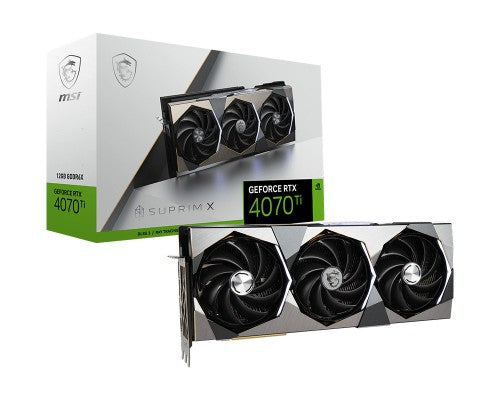

MSI SUPRIM RTX4070 Ti X NVIDIA GeForce RTX 4070 Ti 12 GB GDDR6X
Part number:
G407TSX12
$1,002.69
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Cutting-Edge GPUs
- NVIDIA Ada Lovelace architecture
- Realistic and Immersive Graphics
- Dedicated Ray Tracing Cores
- AI-Accelerated Performance
- NVIDIA DLSS 3
- Game-Winning Responsiveness
- NVIDIA Reflex low-latency platform
- Built for Live Streaming
- NVIDIA Encoder
- AI-Enhanced Voice and Video
- NVIDIA Broadcast app
- Fast-Track Your Creativity
- NVIDIA Studio
- Performance and Reliability
- Game Ready and Studio Drivers
Description
SUPRIM and its logo concept are inpired by diamond crystals and geometry.
A celebration of decades of MSI graphics card mastery, SUPRIM is crafted with qualities that evoke prestige.
High-quality materials and construction are emphasized by the geometry of points, lines, and planes.
Powered by GeForce RTX 40 Series and DLSS 3
CHANGE THE GAME
Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.
SHARP LOOKS
The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.
FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.
TRI-FROZR 3S
THERMAL DESIGN
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.
KEEPING THE CORE COOL
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
FILLED FINS
Updated heat pipe pathing has allowed more space for additional heatsink fins.
WAVE-CURVED 3.0
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
METAL BACKPLATE
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
DOUBLE-BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
Ray Tracing
Hyperrealistic. Hyperfast.
The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.
NVIDIA DLSS 3
The performance multiplier, powered by AI.
DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.
NVIDIA Reflex
Victory measured in milliseconds.
NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2790 MHz |
| Processor boost clock speed | 2775 MHz |
| Maximum displays per videocard | 4 |
| CUDA cores | 7680 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 4070 Ti |
| Processor frequency (OC mode) | 2775 MHz |
| Processor boost clock speed (Gaming mode) | 2775 MHz |
| Memory | |
| Discrete graphics card memory | 12 GB |
| Number of pipelines | 4 |
| Data transfer rate | 21 Gbit/s |
| Memory bus | 192 bit |
| Graphics card memory type | GDDR6X |
| Ports & interfaces | |
| HDMI version | 2.1a |
| HDMI ports quantity | 1 |
| DisplayPort version | 1.4a |
| DisplayPorts quantity | 3 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Interface type | PCI Express 4.0 |
| Video | |
| DirectX version | 12.0 |
| Shader model version | No |
| OpenGL version | 4.6 |
| HDMI version | 2.1a |
| Dual Link DVI | No |
| CUDA cores | 7680 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| DirectX version | 12.0 |
| Shader model version | No |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination colour | Blue |
| Illumination | Yes |
| Cooling type | Active |
| Product colour | Gray |
| Cooling technology | MSI TORX FAN 5.0 |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Power consumption (typical) | 285 W |
| Minimum system power supply | 750 W |
| Technical details | |
| Cooling type | Active |
| Product colour | Gray |
| TV tuner integrated | No |
| System requirements | |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
| Weight | 4.45 lbs (2.02 kg) |
| Height | 5.59" (142 mm) |
| Depth | 2.87" (73 mm) |
| Length | 13.3" (338 mm) |
| Packaging data | |
| Package type | Box |
| Package weight | 7.1 lbs (3.22 kg) |
