NVIDIA GeForce RTX 5080, 16GB GDDR7, 256 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1b), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 360W
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
MSI

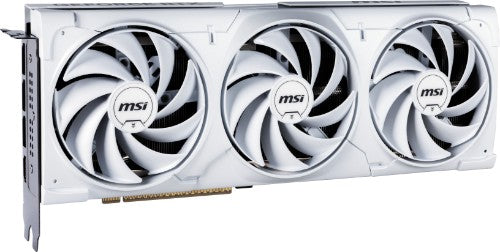

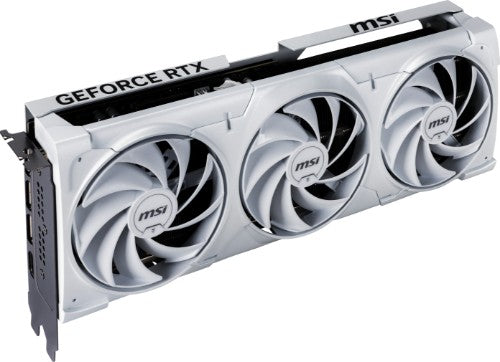

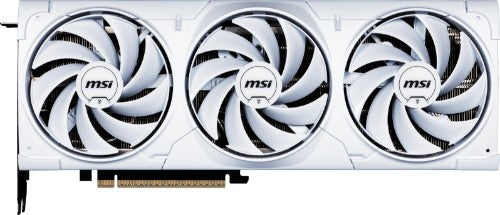

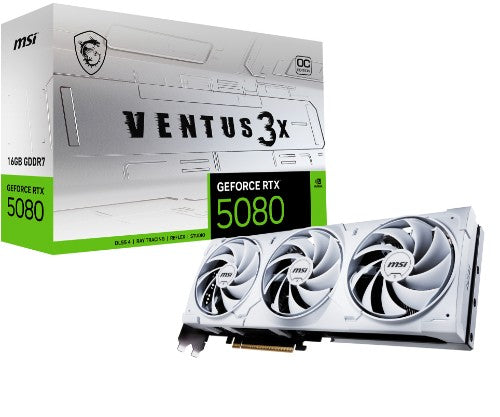

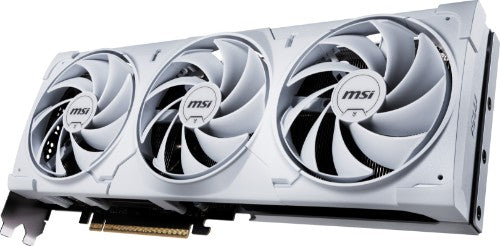

MSI VENTUS GEFORCE RTX 5080 16G 3X OC WHITE graphics card NVIDIA 16 GB GDDR7
Part number:
G5080-16V3CW
$1,298.15
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clocks:
- Extreme Performance: 2655 MHz (MSI Center)
- Boost: 2640 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

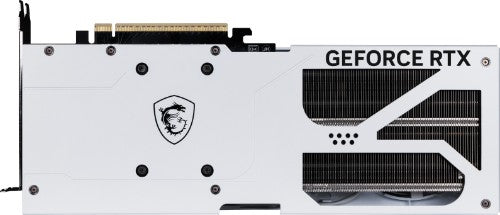

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
Description
TAKE THE ESSENTIALSVENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor boost clock speed | 2640 MHz |
| Maximum displays per videocard | 4 |
| CUDA cores | 10752 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5080 |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Memory bandwidth (max) | 30 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Interface type | PCI Express x16 5.0 |
| Thunderbolt 3 ports quantity | 0 |
| Video | |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| Dual Link DVI | No |
| CUDA cores | 10752 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Overclocked (OC) edition | Yes |
| Design | |
| Number of fans | 3 fan(s) |
| Fan diameter | 4.72" (12 cm) |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | White |
| Number of slots | 2 |
| Power | |
| Supplementary power connectors | 1x 16-pin |
| Power consumption (typical) | 360 W |
| Minimum system power supply | 850 W |
| Weight & dimensions | |
| Number of slots | 2 |
| Weight | 2.38 lbs (1.08 kg) |
| Height | 4.76" (121 mm) |
| Depth | 1.93" (49 mm) |
| Length | 11.9" (303 mm) |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | White |
| TV tuner integrated | No |
| System requirements | |
| Minimum system power supply | 850 W |
| Packaging data | |
| Package type | Box |
| Package width | 15.2" (385 mm) |
| Package height | 9.25" (235 mm) |
| Package depth | 3.54" (90 mm) |
| Package weight | 3.48 lbs (1.58 kg) |
| Cables included | Power |
| Packaging content | |
| Cables included | Power |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
