AMD X570, AM4, x DIMM, 2xPCIex16 slot 6xSATAIII 2xM.2 4x USB 3.2 6x USB 2.0 ports 2 Type-A portS 1xHDMI, Wi-Fi 6E AX210, Bluetooth 5.2
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end AMD CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI

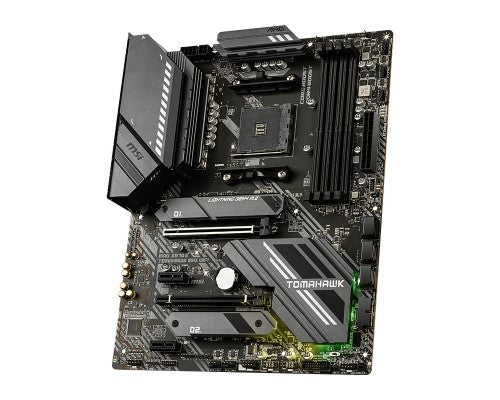

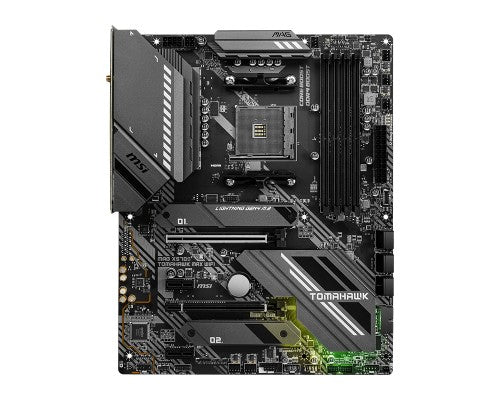

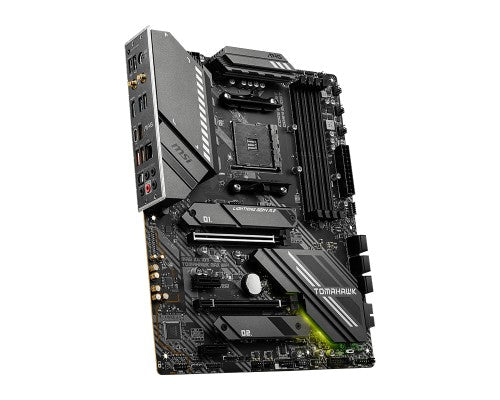

MSI MAG X570S TOMAHAWK MAX WIFI motherboard AMD X570 Socket AM4 ATX
Part number:
X570STMHWIFI
$235.90
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
Reasons To Buy
Core Boost Technology
Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability awithout any compromise.Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.Description
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end AMD CPU to run in full speed with MSI motherboards.
LIGHTNING GEN 4 M.2
Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Supported processor sockets | Socket AM4 |
| Serial port headers | 1 |
| PC health monitoring | CPU |
| Parallel processing technology support | Crossfire |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | CPU |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
| Parallel processing technology support | Crossfire |
| Internal I/O | |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Power fan connector | Yes |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |

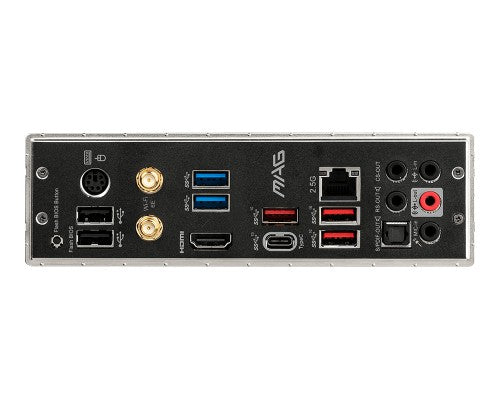

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | CPU |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x1 slots | 2 |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 10.6" (268 mm) |
| Weight | 2.2 lbs (1 kg) |
| Width | 9.61" (244 mm) |
| Depth | 12" (305 mm) |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
| Height | 10.6" (268 mm) |
| Weight | 2.2 lbs (1 kg) |
