128 GB, DDR5, 288-Pin, ECC RDIMM, 1.1 V, 52 CL
Axiom

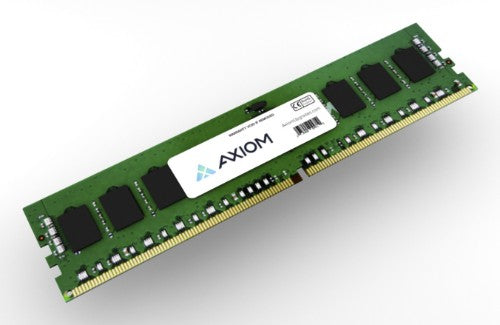

Axiom AX56400R52K/128G memory module 128 GB 1 x 128 GB DDR5 6400 MT/s ECC
Part number:
AX56400R52K/128G
$6,170.94
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Increase in speed - Faster Data Rate equates to more responsive application loads on data-intensive programs
- Increase in component densities – Equals larger modules for next-generation performance demands
- Decrease in power consumption – Less power consumed means less wasted resources to cool systems and reserves battery program for mobile devices
- Provides greater reliability, availability and serviceability (RAS) in enterprise applications – Complete integrity and fault tolerance for longer periods without system failure
- Improved data signal.
Description
Axiom's DDR5 modules are the latest in evolutionary DRAM design. DDR5 increases effective bandwidth by 70% over DDR4. While capable of data rates reaching beyond 7200MT/s, DDR5 provides the same lasting reliability as DDR4, even with the rigorous demands of next-gen computing. Such gains can ultimately reduce the number of servers needed for the same level of system performance while providing improved stability and efficiency over previous DDR generations.Specifications
| Power | |
|---|---|
| Memory voltage | 1.1 V |
| Design | |
| Backlight | No |
| Memory | |
| Buffered memory type | Registered (buffered) |
| Memory layout (modules x size) | 1 x 128 GB |
| Internal memory | 128 GB |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 52 |
| Memory voltage | 1.1 V |
| Module configuration | 8192M x 4 |
| ECC | Yes |
| Internal memory type | DDR5 |
| Features | |
| Buffered memory type | Registered (buffered) |
| Backlight | No |
| Memory layout (modules x size) | 1 x 128 GB |
| Internal memory | 128 GB |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 52 |
| Memory voltage | 1.1 V |
| Module configuration | 8192M x 4 |
| ECC | Yes |
| Internal memory type | DDR5 |
| Memory data transfer rate | 6400 MT/s |
| Technical details | |
| Doesn't contain | Cadmium, Lead, Mercury |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Cadmium, Lead, Mercury |
