Mid Tower, 12" x 10" E-ATX, ATX, Micro-ATX, Mini-ITX, 7 x PCI-E, SECC, Tempered Glass, ABS, 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 1, 494 x 220 x 473 mm, 8.3 kg, Black

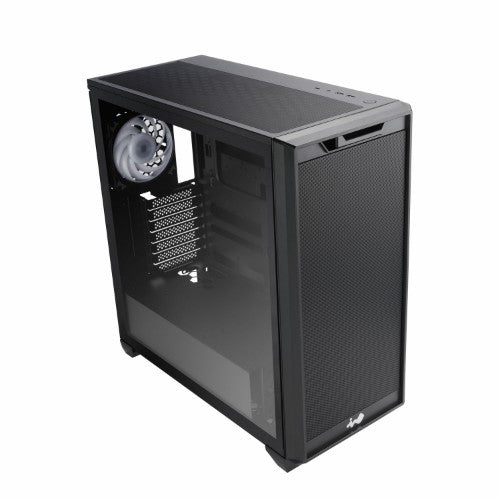

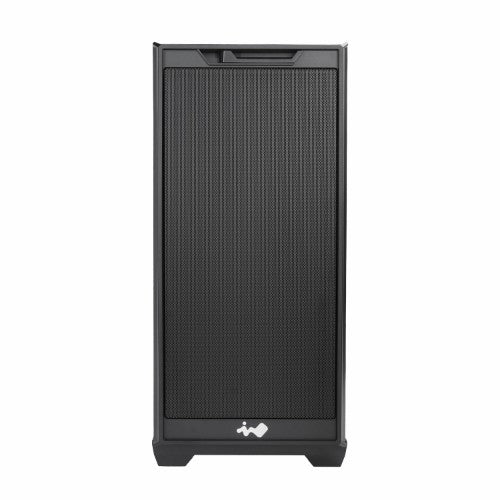

The D5 features a widely perforated front and top panel to enhance airflow and maximize ventilation.
Dual GPU Orientation
No additional brackets required; the D5's modular, rotatable PCI-E slot bracket provides users with the option to display the GPU vertically or horizontally. The complementary magnetic GPU holder is to support heavier cards.
All About Capacity
The D5 mid-tower case accommodates E-ATX motherboards up to 12" x 10", and the latest back-connector motherboards. It supports GPUs up to 365 mm in length.
Cooling Capacity
The D5 offers versatile cooling options to appease your system configuration.
Neptune’s Galactic Glamour
The D5 comes pre-installed with one Neptune AN120 fan. These silent static pressure fans feature InWin's signature Turbine Blade design for concentrated airflow, and the ARGB lighting enriches the visual aesthetics.
In Win
In Win D5 Midi Tower Black
Part number:
IW-CS-D5BLK-1AN120
$64.89
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Let the Air FlowThe D5 features a widely perforated front and top panel to enhance airflow and maximize ventilation.
Dual GPU Orientation
No additional brackets required; the D5's modular, rotatable PCI-E slot bracket provides users with the option to display the GPU vertically or horizontally. The complementary magnetic GPU holder is to support heavier cards.
All About Capacity
The D5 mid-tower case accommodates E-ATX motherboards up to 12" x 10", and the latest back-connector motherboards. It supports GPUs up to 365 mm in length.
Cooling Capacity
The D5 offers versatile cooling options to appease your system configuration.
Neptune’s Galactic Glamour
The D5 comes pre-installed with one Neptune AN120 fan. These silent static pressure fans feature InWin's signature Turbine Blade design for concentrated airflow, and the ARGB lighting enriches the visual aesthetics.
Specifications
| Technical details | |
|---|---|
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 6.5" (16.5 cm) |
| Maximum graphics card length | 14.4" (36.5 cm) |
| Maximum PSU length | 7.09" (18 cm) |
| Type | PC |
| Form factor | Midi Tower |
| Material | |
| Material | ABS, SECC, Tempered glass |
| Design | |
| Material | ABS, SECC, Tempered glass |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 2 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 6.5" (16.5 cm) |
| Maximum graphics card length | 14.4" (36.5 cm) |
| Maximum PSU length | 7.09" (18 cm) |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
| Power supply included | No |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| USB Type-C ports quantity | 1 |
| Cooling | |
| Front radiator sizes supported | 280,360 mm |
| Top radiator sizes supported | 280,360 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Weight & dimensions | |
| Width | 8.66" (220 mm) |
| Depth | 19.4" (494 mm) |
| Height | 18.6" (473 mm) |
| Weight | 18.3 lbs (8.3 kg) |
| Packaging data | |
| Package width | 19.4" (494 mm) |
| Package height | 21.5" (545 mm) |
| Package depth | 21.4" (544 mm) |
| Package weight | 21.4 lbs (9.7 kg) |
