75" 4K 3840 x 2160, ADS / Direct-LED, 16:9, 8ms, HDMI, DisplayPort, USB, 185W, 110-240V, 50/60 Hz

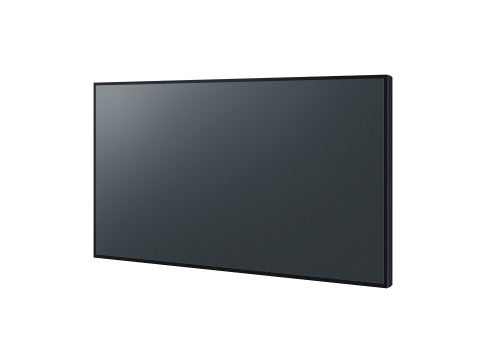

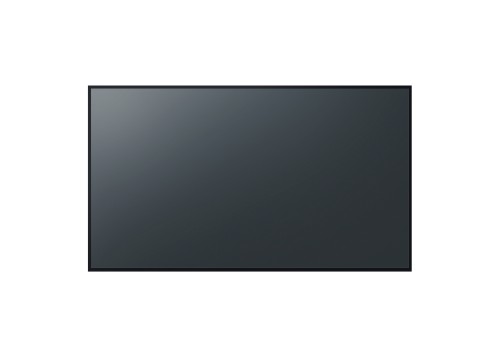

Panasonic TH-75SQE2W signage display Digital signage flat panel 75" LCD Wi-Fi 500 cd/m² 4K Ultra HD Black
Part number:
TH-75SQE2W
Sale price
$4,078.67
Regular price
$4,909.00
Save
$830.33
17%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- High image quality and high legibility suitable for various scenes
- Superb Reliability & Easy Installation
- Various external linkage suitable for conference room and signage applications
Description
The Panasonic Connect TH-SQE2 Series 4K Professional Display is designed for 24-hour continuous operation and crystal-clear viewing clarity. The display provides a brightness of 500cd/m² with an anti-glare panel, and minimum haze treatment of 25%, reducing the reflection of ambient light and vastly improving visibility in all environments. For ultimate flexibility and a clean look without set-top-boxes or cables, the TH-SQE2 Series is also equipped with a slot for the Intel® SDM specification supporting applications, such as digital signage and broadcasts, using a built-in PC, terminal board, or wireless presentation system.Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 1.07 billion colors |
| Panel type | ADS |
| LED backlighting type | Direct-LED |
| Touchscreen | No |
| Active display area (W x H) | 64.9 x 36.5" (1649.6 x 927.9 mm) |
| Display technology | LCD |
| Display diagonal | 75" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 50000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 74.5" (189.3 cm) |
| Panel life | 50000 h |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Haze rate | 25% |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| Remote (IR) input | 1 |
| USB port | Yes |
| RS-232C | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 5 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DVI port | No |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Number of built-in speakers | 4 |
| RMS rated power | 24 W |
| Built-in speaker(s) | Yes |
| Bluetooth audio | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Performance | |
| Purpose | Universal |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Panel life | 50000 h |
| Power | |
| Power consumption (typical) | 185 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Display width | 66.3" (1684 mm) |
| Display depth | 3.94" (100 mm) |
| Display height | 38.7" (984 mm) |
| Display weight | 82.5 lbs (37.4 kg) |
| Packaging data | |
| Package width | 76.7" (1948 mm) |
| Package depth | 8.27" (210 mm) |
| Package height | 46.1" (1170 mm) |
| Package weight | 114.6 lbs (52 kg) |
| Remote control included | Yes |
| Cables included | AC |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A, USB Type-C |
| Panel type | ADS |
| LED backlighting type | Direct-LED |
| HDCP 2.2 | Yes |
| Other features | |
| USB connector type | USB Type-A, USB Type-C |
| Panel type | ADS |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Display technology | LCD |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
