RJ-45 - LC, 850 nm, 550 m, PoE
AddOn Networks

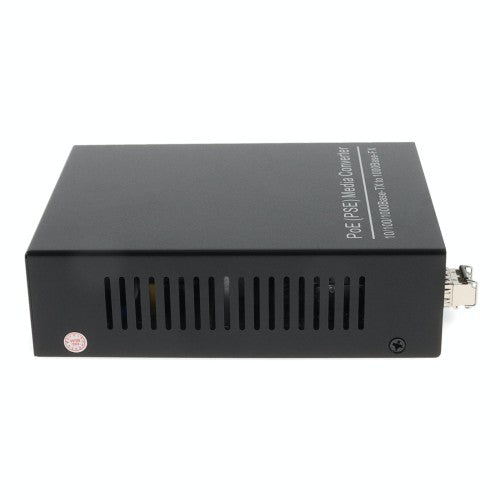

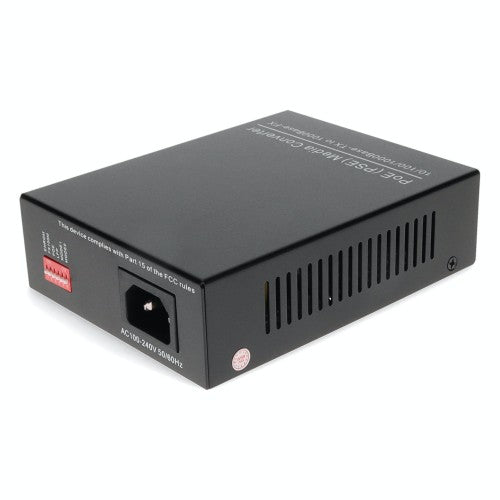

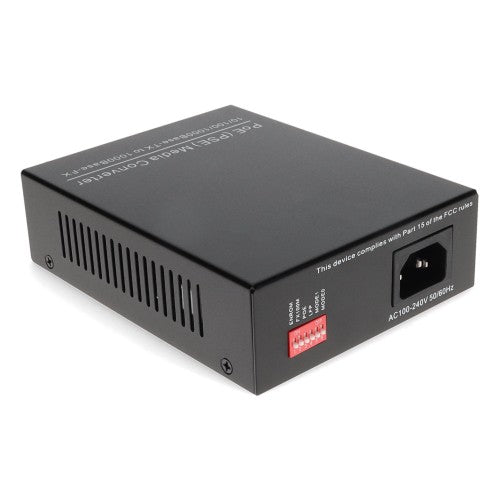

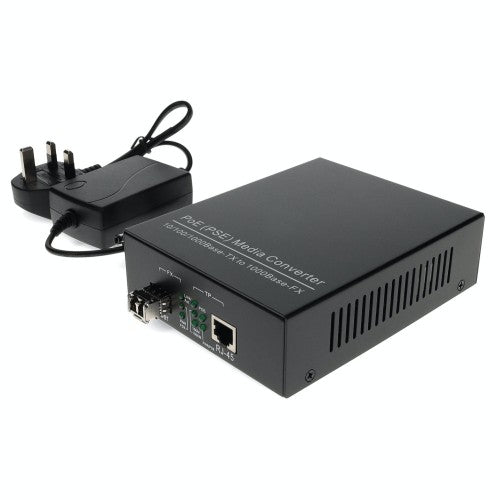

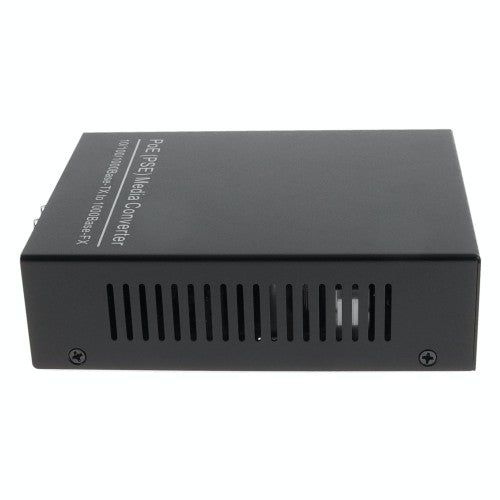

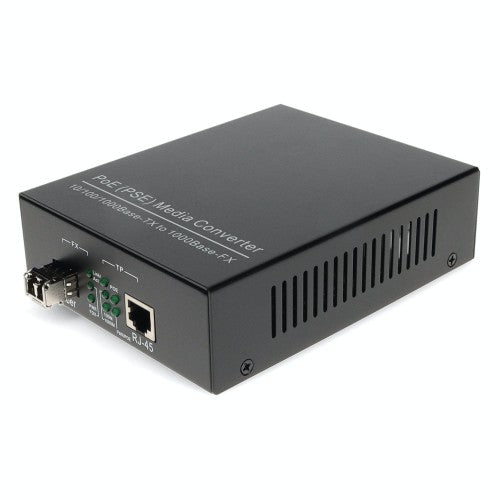

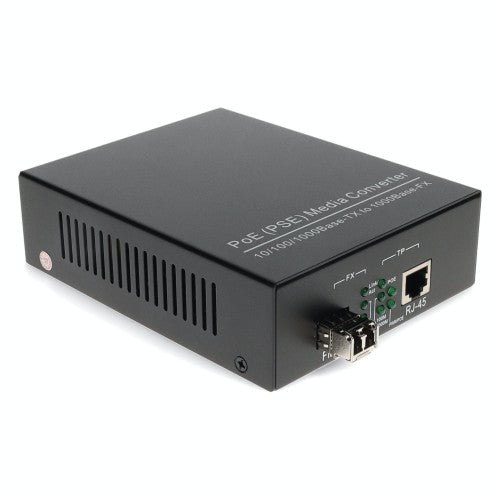

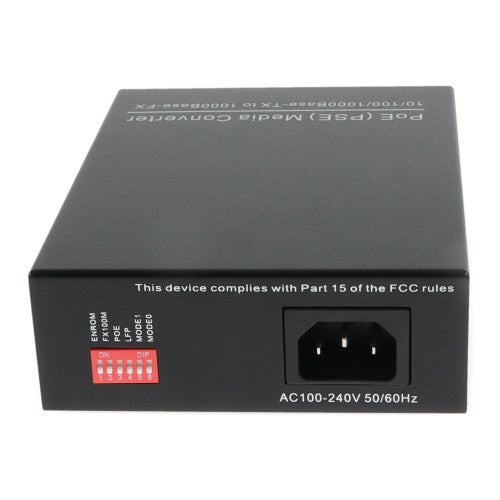

AddOn Networks ADD-GMC-SX-LC-POE-UK network media converter 1000 Mbit/s 850 nm Multi-mode Black
Part number:
ADD-GMC-SX-LC-POE-UK
Sale price
$102.93
Regular price
$172.00
Save
$69.07
40%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) via a 850nm multi-mode fiber (MMF) LC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Cable types supported | Cat5 |
| Converter input interface | 100Base-TX, 1000Base-TX |
| Networking standards | IEEE 802.3af |
| Converter output interface | 1000Base-SX |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Indication | |
| LED indicators | Yes |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Fiber mode structure | Multi-mode |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 15 W |
| Input voltage | 100 - 240 V |
| External power adapter | Yes |
| AC input frequency | 50 - 60 Hz |
| Colour | |
| Product colour | Black |
