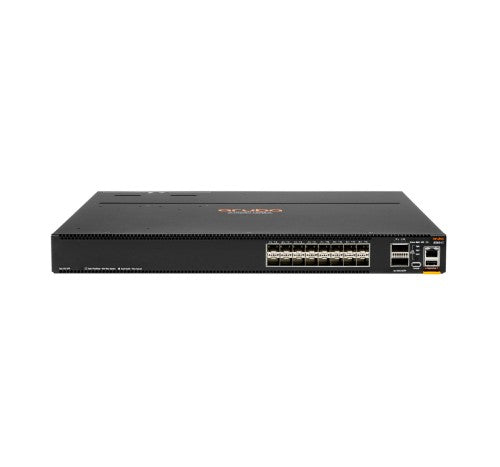

HPE Aruba 8360-16Y2C v2 Port to Power Airflow 3 Fans 2 PSU, Managed, L3, Rack mounting, 1U
HPE
HPE Aruba 8360-16Y2C v2 Port to Power Airflow 3 Fans 2 PSU Managed L3 1U
Part number:
R9G10A#ABA
Sale price
$23,151.68
Regular price
$29,955.00
Save
$6,803.32
23%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
HPE Aruba 8360-16Y2C v2 Port to Power Airflow 3 Fans 2 PSU. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 1200 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| MLD entries | 7000 |
| IPv6 multicast entries | 7000 |
| IPv4 multicast entries | 7000 |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Throughput | 2678 Mpps |
| Packet buffer memory | 32 MB |
| MAC address table | 212992 entries |
| Switching capacity | 1200 Gbit/s |
| Jumbo frames support | Yes |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Performance | |
| Packet buffer memory | 32 MB |
| Stackable | No |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Technical details | |
| Form factor | 1U |
| Stackable | No |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45/USB Type-C |
| QSFP28 ports quantity | 2 |
| SFP28 ports quantity | 16 |
| USB Type-A ports quantity | 1 |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| MLD entries | 7000 |
| IPv6 multicast entries | 7000 |
| IPv4 multicast entries | 7000 |
| Protocols | |
| Management protocols | SNMPv2c, SNMPv3 |
| Routing protocols | BGP, BGP4, OSPF, RIP-2, RIPng, VRRP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Memory | |
| Packet buffer memory | 32 MB |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Design | |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Redundant fans support | Yes |
| Power | |
| Power consumption (max) | 325 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 181102.4" (0 - 4600 m) |
| Heat dissipation | 1109 BTU/h |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 16" (406.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 17 lbs (7.71 kg) |
