High-End Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point with 1.8 Gbps max rate, Switch and Embedded IoT
In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
RUCKUS Networks

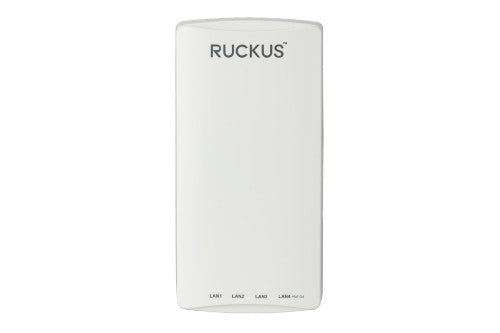

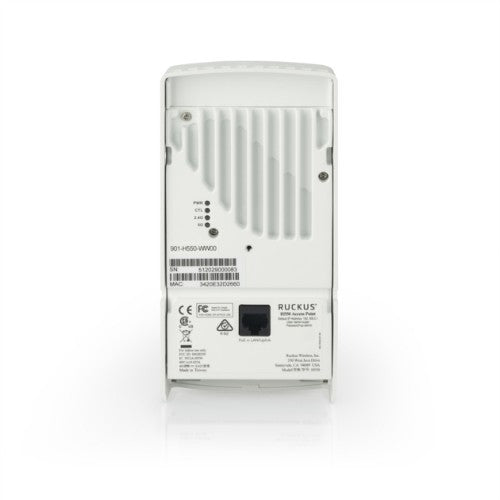

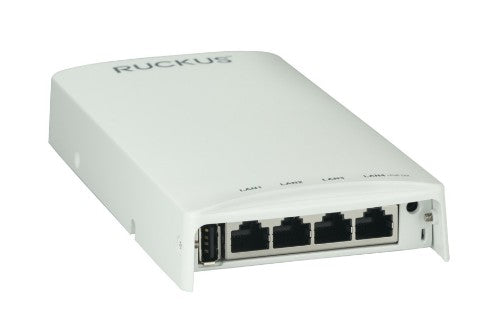

RUCKUS Networks H550 1200 Mbit/s White Power over Ethernet (PoE)
Part number:
9U1-H550-WW00
Sale price
$583.00
Regular price
$795.00
Save
$212.00
27%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
RUCKUS H550 Indoor Access Point FeaturesIn hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.
The RUCKUS H550 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support the most demanding in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with four-ports of Gigabit Ethernet to connect multiple in-room wired devices, without extra cabling and add supports for Zigbee® and Bluetooth® Low Energy, as well as other protocols via optional USB modules. Put it all in a sleek low-profile design that can be discretely installed over a standard electrical outlet.
Deliver the full range of in-room services while dramatically reducing cabling, installation time, and construction costs.
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1200 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 512 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1200 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Airtime Fairness (ATF) | Yes |
| Network | |
| Number of users | 512 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| VLAN support | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Number of users | 512 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1200 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Security | |
| Security algorithms | AES, WPA-TKIP, WPA2, Dynamic PSK, OWE, WPA3-Enterprise, WPA3-Personal, WPA-PSK |
| Access Control List (ACL) | Yes |
| Protocols | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 1 dBi |
| Software | |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 3.52" (89.5 mm) |
| Depth | 7.03" (178.5 mm) |
| Weight | 9.81 oz (278 g) |
| Height | 1.15" (29.3 mm) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
