43", 4K Ultra HD (3840 x 2160p), ADS, Direct-LED, 500 cd/m2, 178°/178° (CR>10), Anti-glare treatment (Haze 25 %), speaker 20W, power 385W, 1684 x 962 x 96mm, 37.3kg, Black
High visibility and installation properties
With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, the EQ2 Series is ideal for conference rooms, classrooms and open spaces such as receptions and shopping malls. The ability to position the display in portrait or landscape mode, with up to a 20-degree tilt angle and 18 hours continuous operation also makes the Series perfect for information display.
Scalability that enables cooperation with various systems
The EQ2 Series supports the Intel® SDM (Smart Display Module) specification slot, which can be used with the receiver board version of Panasonic's wireless presentation system PressIT, or optional terminal boards such as 12G-SDI and DIGITAL LINK. Equipped with HDMI (x 3), PC and USB Type-C video input terminals, it can connect external devices according to the usage environment.
Enhanced functions useful for communication
Features a built-in whiteboard function to annotate the display screen and zoom in and out using a mouse. USB devices can be connected to the display via a USB Type-A cable and controlled using a PC connected to the EQ2 via the USB Type-C port. This functionality, for example, is ideal for a simple and quick start to video conferences. If a camera or speakerphone is permanently connected to the display in a conference room, a user can just plug in their PC and immediately control all devices to start the meeting.
With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms.
The EQ2 Series displays 4K resolution images at a brightness of 500 cd/m², ensuring high visibility even in bright environments.

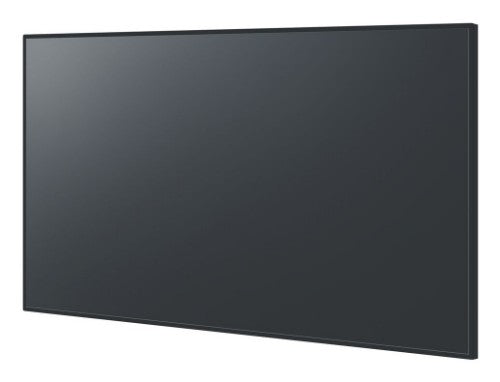

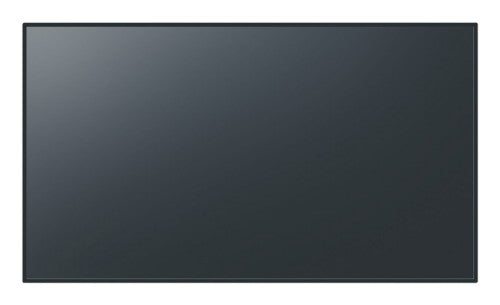

Panasonic TH-75EQ2W signage display Digital signage flat panel 74.5" LED 500 cd/m² 4K Ultra HD Black 18/7
Part number:
TH-75EQ2W
Sale price
$4,198.30
Regular price
$5,079.00
Save
$880.70
17%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Easy to connect peripherals (camera/speaker) directly to display
- Increased input type and number of available inputs
- Function slot for increased functionality
- Higher visibility due brightness typically found on higher end products
- Installation flexibility – portrait and tilt supported
Description
Large 75" 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.High visibility and installation properties
With 500 cd/m² brightness and high haze value panels to suppress the reflected glare of bright light, the EQ2 Series is ideal for conference rooms, classrooms and open spaces such as receptions and shopping malls. The ability to position the display in portrait or landscape mode, with up to a 20-degree tilt angle and 18 hours continuous operation also makes the Series perfect for information display.
Scalability that enables cooperation with various systems
The EQ2 Series supports the Intel® SDM (Smart Display Module) specification slot, which can be used with the receiver board version of Panasonic's wireless presentation system PressIT, or optional terminal boards such as 12G-SDI and DIGITAL LINK. Equipped with HDMI (x 3), PC and USB Type-C video input terminals, it can connect external devices according to the usage environment.
Enhanced functions useful for communication
Features a built-in whiteboard function to annotate the display screen and zoom in and out using a mouse. USB devices can be connected to the display via a USB Type-A cable and controlled using a PC connected to the EQ2 via the USB Type-C port. This functionality, for example, is ideal for a simple and quick start to video conferences. If a camera or speakerphone is permanently connected to the display in a conference room, a user can just plug in their PC and immediately control all devices to start the meeting.
With approximately 8,290,000 pixels, about four times the pixels of a Full-HD display, images are highly detailed. This dynamic, large-screen display archives true-to-life finely nuanced images. The 4K display is an excellent choice for digital signage and meeting rooms.
The EQ2 Series displays 4K resolution images at a brightness of 500 cd/m², ensuring high visibility even in bright environments.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 1.06 billion colors |
| Panel type | ADS |
| LED backlighting type | Direct-LED |
| Active display area (W x H) | 64.9 x 36.5" (1649.6 x 927.9 mm) |
| Display technology | LED |
| Display diagonal | 74.5" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 50000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 74.5" (189.2 cm) |
| Panel life | 50000 h |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Haze rate | 25% |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| Mini VGA (D-Sub) input ports | 1 |
| USB port | Yes |
| RS-232C | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| HDMI input ports quantity | 3 |
| SDM module slot | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 60 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 0.587" (1.49 cm) |
| Bezel width (side) | 0.587" (1.49 cm) |
| Bezel width (bottom) | 0.587" (1.49 cm) |
| Product colour | Black |
| Panel mounting interface | 600 x 600 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Panel life | 50000 h |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 385 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Display width | 66.3" (1684 mm) |
| Display depth | 3.78" (96 mm) |
| Display height | 37.9" (962 mm) |
| Display weight | 82.2 lbs (37.3 kg) |
| Packaging data | |
| Package width | 73.6" (1870 mm) |
| Package depth | 11" (280 mm) |
| Package height | 45" (1143 mm) |
| Package weight | 112.4 lbs (51 kg) |
| Operational conditions | |
| Operating altitude | 0 - 110236.2" (0 - 2800 m) |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A, USB Type-C |
| Panel type | ADS |
| LED backlighting type | Direct-LED |
| Audio out (mini jack) | 1 |
| Features | |
| Base colour | Black |
| Base material | Metal |
| Wall mountable | Yes |
| Other features | |
| USB connector type | USB Type-A, USB Type-C |
| Mini VGA (D-Sub) input ports | 1 |
| Panel type | ADS |
| Operating altitude | 0 - 110236.2" (0 - 2800 m) |
| Display technology | LED |
| Bezel width (top) | 0.587" (1.49 cm) |
| Bezel width (side) | 0.587" (1.49 cm) |
| Bezel width (bottom) | 0.587" (1.49 cm) |
| Audio output | Stereo Mini Jack |
