ES224G Omada 24-Port Gigabit Easy Managed Switch
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
TP-Link

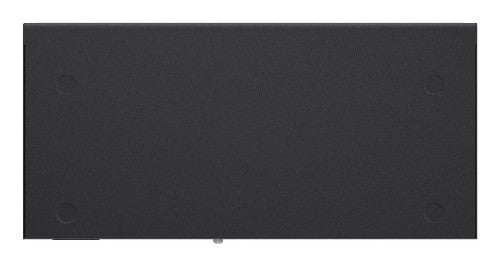

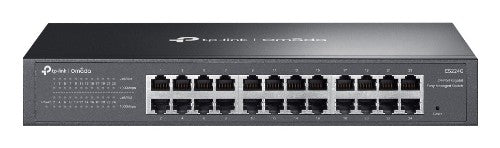

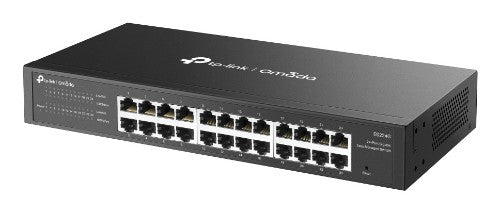

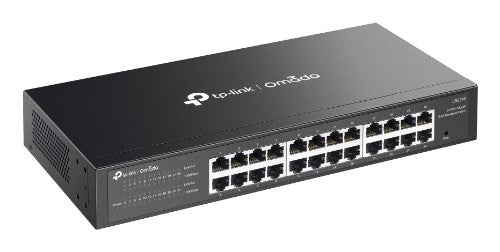

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Part number:
ES224G
$101.22
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 24× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network ManagementOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Unified static configuration | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Network | |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 15000 |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 35.7 Mpps |
| Number of VLANs | 32 |
| Security | |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Packet buffer memory | 4 MB |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Surge protection | Yes |
| Power source | AC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Weight & dimensions | |
| Width | 11.6" (294 mm) |
| Depth | 5.51" (140 mm) |
| Height | 1.73" (44 mm) |
| Packaging content | |
| Rack mount kit | No |
| User guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| Rack mount kit | No |
| User guide | Yes |
| Cables included | AC |
