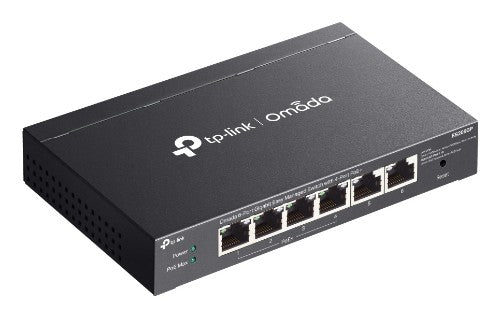

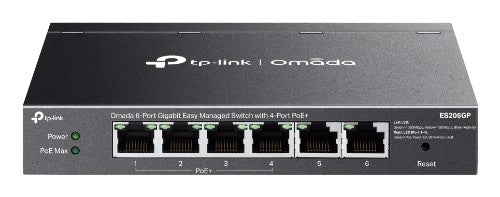

ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
TP-Link
TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number:
ES206GP
Sale price
$56.37
Regular price
$56.99
Save
$0.62
1%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

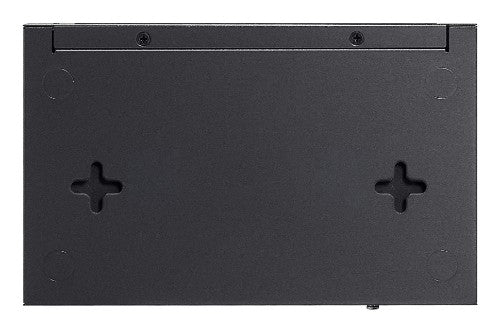

- Durable metal casing and desktop/wall mounting design
Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network ManagementOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Unified static configuration | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Optical fiber | |
| Transmission distance (max) | 0.25 km |
| Data transmission | |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.4 Mpps |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| DHCP features | DHCP client |
| Design | |
| Wall mountable | Yes |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Packet buffer memory | 4 MB |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| Input current | 1.31 A |

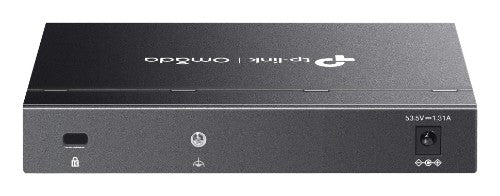

| DC input voltage | 53.5 V |
| Surge protection | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| User guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| User guide | Yes |
| Technical details | |
| Product colour | Black |
| Firmware upgradeable | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Indication | |
| LED indicators | Yes |
