574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz), 802.3at PoE, 1x Gigabit Ethernet, IP68, 230 x 207.5 x 69.7 mm
Indoor/Outdoor WiFi 6
Access Point
Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
TP-Link

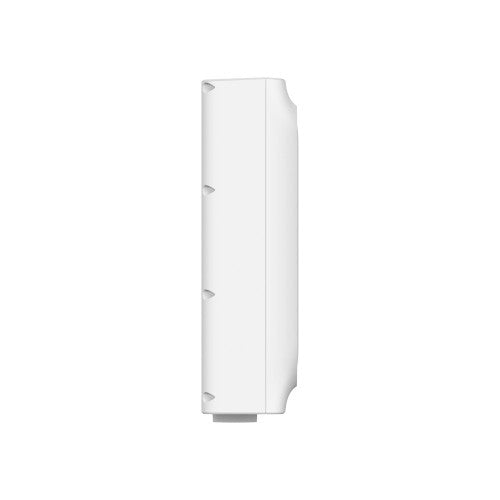

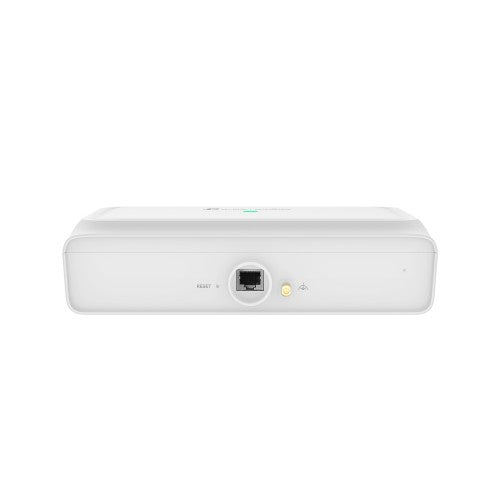

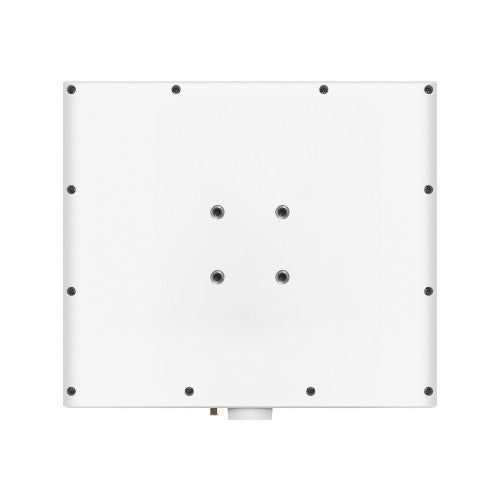

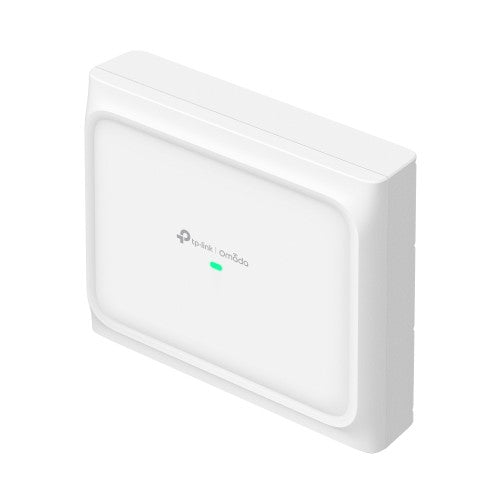

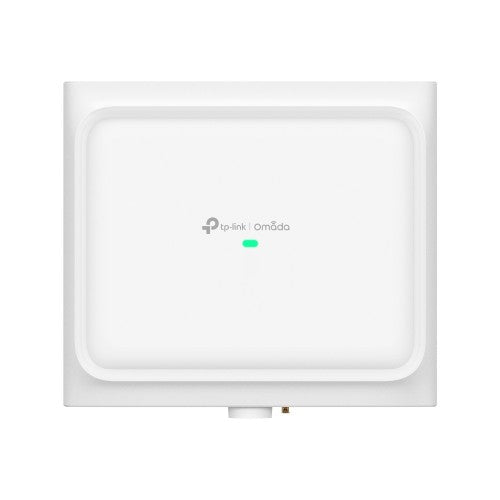

TP-Link Omada EAP650 D120-Outdoor 3000 Mbit/s White Power over Ethernet (PoE)
Part number:
EAP650 D120-OUTDOOR
$167.02
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
- Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range
- 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners
- Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology
- Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI
Description
Omada AX3000Indoor/Outdoor WiFi 6
Access Point
Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.
Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.
Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Web-based management | Yes |
| Maximum indoor range | 19685" (500 m) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Wireless LAN features | |
| Maximum indoor range | 19685" (500 m) |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Maximum indoor range | 19685" (500 m) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 3000 Mbit/s |
| Bluetooth | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| MAC address filtering | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Technical details | |
| Vertical beam width | 30° |
| Horizontal beam width | 120° |
| Weight & dimensions | |
| Width | 9.06" (230 mm) |
| Depth | 8.17" (207.5 mm) |
| Height | 2.74" (69.7 mm) |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Vertical beam width | 30° |
| Horizontal beam width | 120° |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
