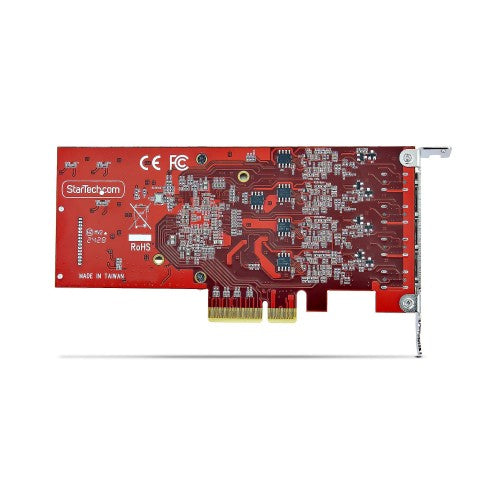

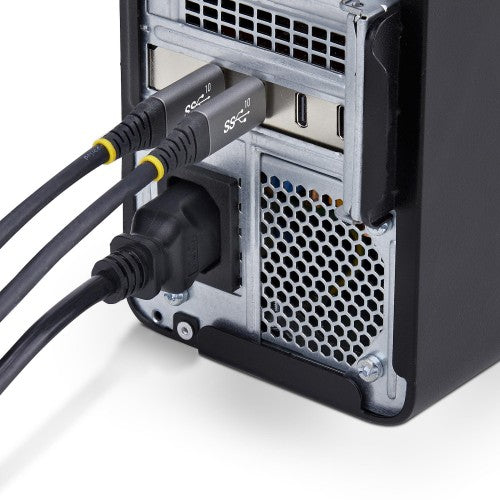

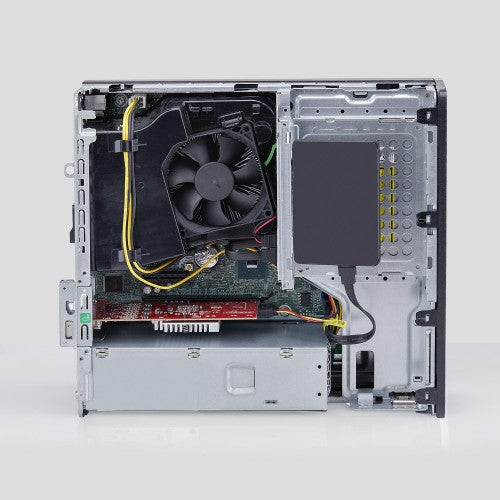

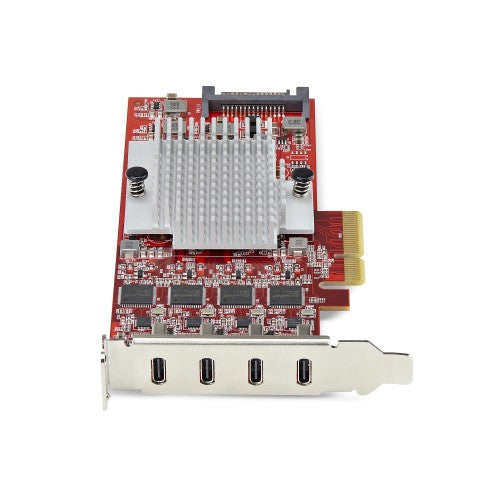

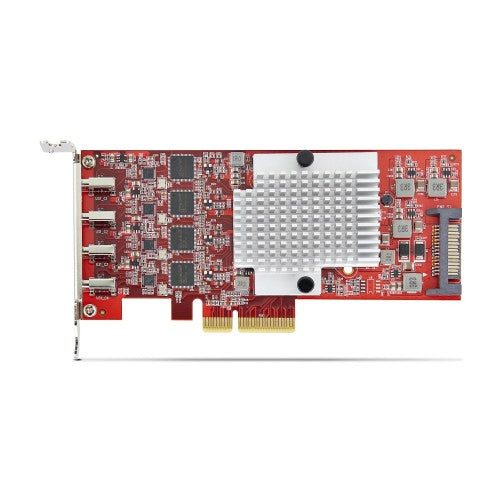

StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Card, 4x Independent USB Controllers, TAA
Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility

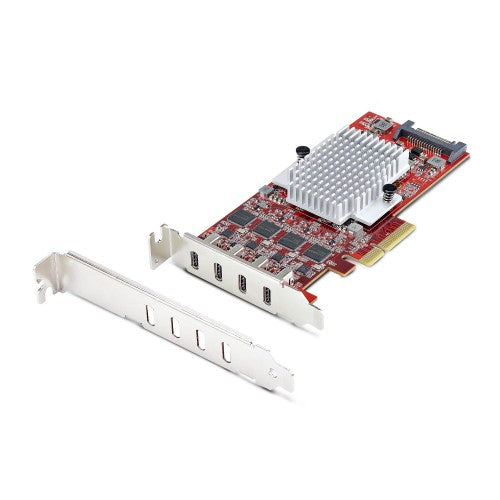

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.
The StarTech.com Advantage
StarTech.com
StarTech.com P10Q4C-USB-CARD-LP interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)
Part number:
P10Q4C-USB-CARD-LP
Sale price
$260.70
Regular price
$272.99
Save
$12.29
5%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- HIGH-PERFORMANCE USB CARD: Enhance a desktop computer or server by upgrading or expanding its USB connectivity with this four-port USB Type-C card; Features individual USB controllers for up to 10Gbps per port (data only); PCI Express 3.0; TAA-compliant
- DEDICATED 10GBPS PER PORT: Features 4x USB controllers ensuring up to 10Gbps of bandwidth per port; High data throughput is ideal for large file transfers on external storage, simultaneous use of multiple USB-C devices, or using 10GbE USB network adapters
- COMPATIBILITY: Windows/Linux/macOS compatible; Add-on card ships with low-profile bracket installed (standard profile included); PCIe 3.0 x4 (or larger) slot required; Plug-and-play drivers; Supported speeds: 10Gbps, 5Gbps, 480Mbps, 12Mbps, and 1.1Mbps

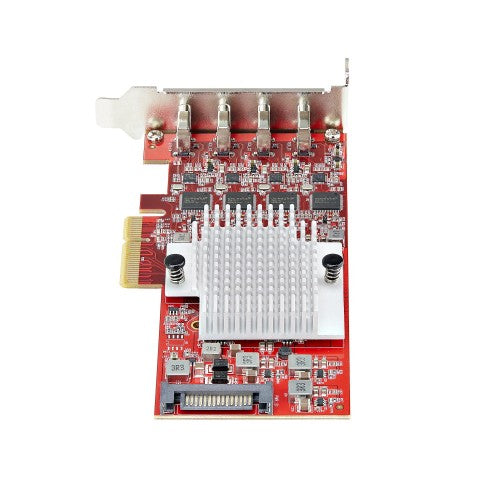

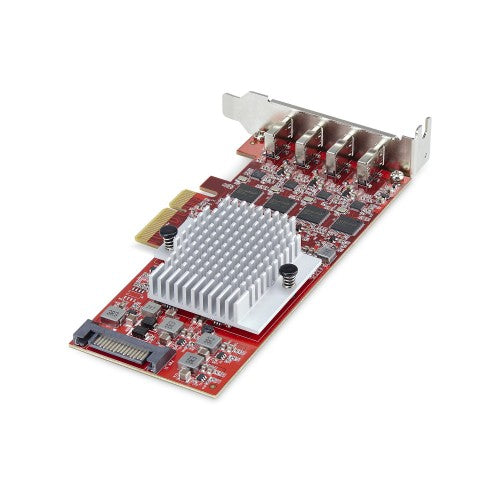

- AUXILIARY SATA POWER: If the motherboard doesn't provide enough power, the built-in SATA power connection can be used to supply additional power to the USB ports; Internal USB-C PCIe expansion card can supply up to 5V 3A (15W) per port
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB 3.2 Gen 2 PCI Express Type-C card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI ExpressExpand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility
The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed low-profile bracket and includes a standard profile bracket for maximum compatibility.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Internal SATA ports quantity | 1 |
| Host interface | PCIe |
| Expansion card standard | PCI 3.0 |
| SATA power connector type | SATA 15-pin |
| Technical details | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X |
| Data transfer rate (max) | 10 Gbit/s |
| Compliance certificates | Trade Agreements Act (TAA) |
| Performance | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X |
| Data transfer rate (max) | 10 Gbit/s |
| Product colour | Red |
| Colour | |
| Product colour | Red |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Features | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X |
| Data transfer rate (max) | 10 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Weight & dimensions | |
| Width | 2.21" (56.2 mm) |
| Depth | 5.51" (140 mm) |
| Height | 3.12" (79.2 mm) |
| Weight | 3.53 oz (100 g) |
| Package width | 5.59" (142 mm) |
| Package depth | 6.69" (170 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 5.64 oz (160 g) |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 5.59" (142 mm) |
| Package depth | 6.69" (170 mm) |
| Package height | 1.18" (30 mm) |
| Package weight | 5.64 oz (160 g) |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 15" (380 mm) |
| Master (outer) case length | 12.2" (310 mm) |
| Master (outer) case height | 19.7" (500 mm) |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Other features | |
| Chipset | ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X |
