15W, 85 Hz - 18 kHz, 90 dB, 0.9 kg
Model CSS8004 is a 100 mm (4 in) speaker with 90 dB sensitivity and a 5-Watt multi-tap transformer.
The speaker’s pre-attached triplevoltage transformer provides versatility by allowing use on 100V, 70V or 25V distributed loudspeaker lines.

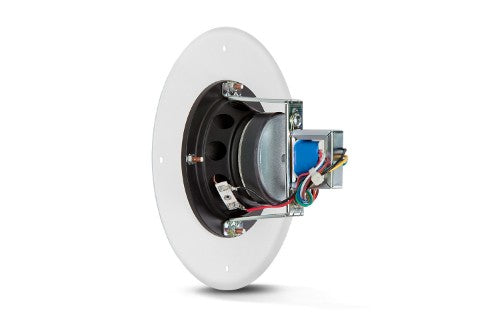

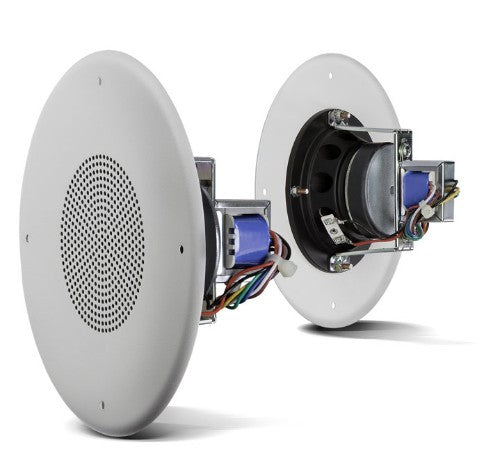

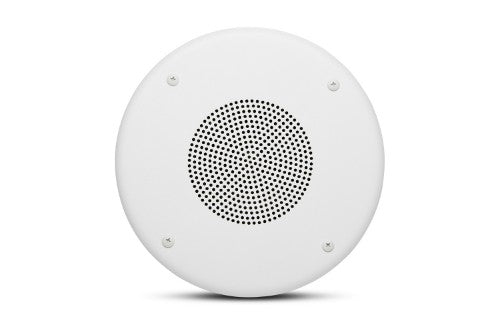

The drivers feature a full 25 mm (1 in) diameter voice coil with a Kapton coil-former and hightemperature wire for better power dissipation and long-term reliability. For installation convenience, the speaker grille and transformer are preattached to the driver. Grilles are painted, zinc-plated, cold-rolled steel. The 200 mm (8 in) models feature a standard 286 mm (11¼ in) boltmounting diameter. Matching CSS backcans are made of zinc-plated steel with powder-coated finish. CSS steel pre-install backcans can be installed, wired, and inspected prior to installation of the speaker.
Harman/Kardon
JBL CSS8004 loudspeaker White Wired 15 W
Part number:
CSS8004
$134.76
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- High 90 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
- Very wide 175° coverage

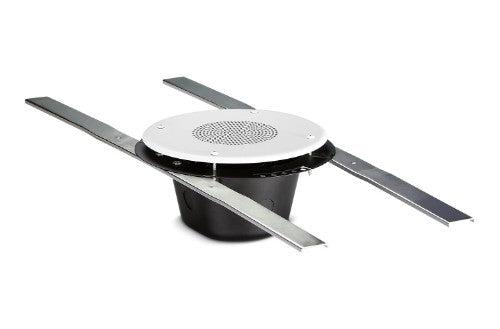

- Fits CSS-BB4 backcan
Description
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.Model CSS8004 is a 100 mm (4 in) speaker with 90 dB sensitivity and a 5-Watt multi-tap transformer.
The speaker’s pre-attached triplevoltage transformer provides versatility by allowing use on 100V, 70V or 25V distributed loudspeaker lines.
The drivers feature a full 25 mm (1 in) diameter voice coil with a Kapton coil-former and hightemperature wire for better power dissipation and long-term reliability. For installation convenience, the speaker grille and transformer are preattached to the driver. Grilles are painted, zinc-plated, cold-rolled steel. The 200 mm (8 in) models feature a standard 286 mm (11¼ in) boltmounting diameter. Matching CSS backcans are made of zinc-plated steel with powder-coated finish. CSS steel pre-install backcans can be installed, wired, and inspected prior to installation of the speaker.
Specifications
| Loudspeakers | |
|---|---|
| Speaker placement | In-wall/in-ceiling |
| Number of drivers | 1 |
| Driver diameter | 3.94" (10 cm) |
| Audio | |
| Frequency range | 85 - 18000 Hz |
| Sensitivity | 90 dB |
| RMS rated power | 15 W |
| Performance | |
| Product colour | White |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Power | |
| Transformer taps | 1.5,2,5 W |
| Weight & dimensions | |
| Width | 7.8" (198 mm) |
| Depth | 7.8" (198 mm) |
| Height | 3.7" (94 mm) |
| Diameter | 7.8" (19.8 cm) |
| Weight | 31.7 oz (900 g) |
| Packaging data | |
| Package weight | 2.78 lbs (1.26 kg) |
