1/2.8" CMOS, 3840x2160px, 30 fps, 20m IR, 850 nm, PoE, 12.9W
This compact, varifocal dome camera offers great images in 8 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.
Great images, every time
AXIS M4228-LVE delivers great image quality in 4K. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), AXIS M4228-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics, which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Small and discreet

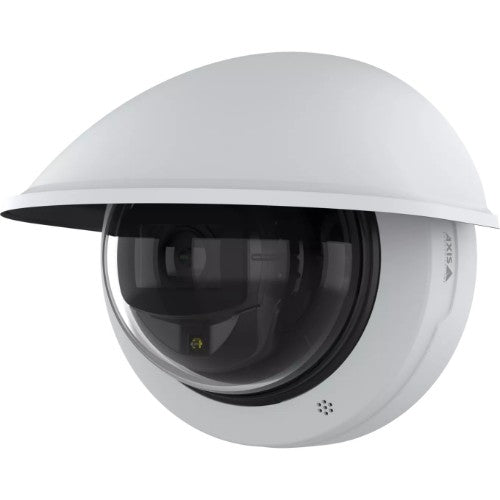

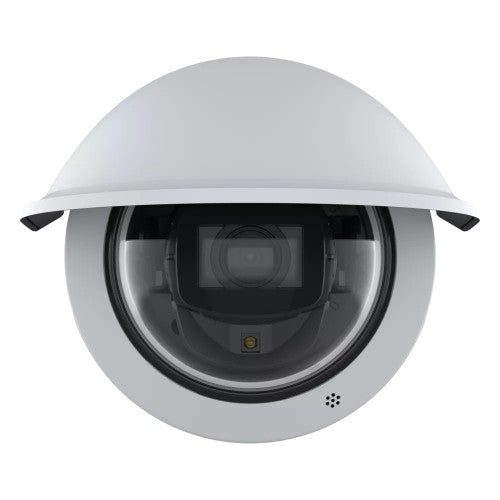

This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.
Axis
Axis M4228-LVE Dome IP security camera Outdoor 3840 x 2160 pixels Wall
Part number:
02816-001
Sale price
$857.41
Regular price
$899.00
Save
$41.59
5%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Great image quality in 8 MP
- Varifocal lens with remote zoom and focus
- Lightfinder 2.0, Forensic WDR, and OptimizedIR
- AI-based audio and video analytics
- Built-in cybersecurity with Axis Edge Vault
Description
AXIS M4228-LVE Dome CameraThis compact, varifocal dome camera offers great images in 8 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.
Great images, every time
AXIS M4228-LVE delivers great image quality in 4K. Featuring a varifocal lens with 100°-38° field of view and remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Thanks to Lightfinder 2.0 and Forensic WDR, it provides details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Powerful with strong security
Featuring a deep learning processing unit (DLPU), AXIS M4228-LVE lets you run advanced features and powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects such as humans and vehicles. It includes an acoustic sensor, so it’s out-of-the-box-ready for AXIS Audio Analytics, which can detect and classify specific sounds as well as sudden changes in sound volume. In addition, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Small and discreet
This compact and discreet dome camera blends in with any environment. There’s also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.
Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| Weatherproof | Yes |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Wall |
| LED indicators | Yes |
| International Protection (IP) code | IP66 |
| Housing material | Plastic, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.03 lx |
| Tilt angle range | -10 - 65° |
| Pan range | -180 - 180° |
| Angle of rotation | 360° |
| Camera shutter speed | 1/16000 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 1.45 µm |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 52° |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Panoramic camera | |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.7 |
| Auto focus | Yes |
| Recognize distance (wide) | 346.5" (8.8 m) |
| Recognize distance (tele) | 803.1" (20.4 m) |
| Observe distance (wide) | 685" (17.4 m) |
| Observe distance (tele) | 1590.6" (40.4 m) |
| Identify distance (wide) | 173.2" (4.4 m) |
| Identify distance (tele) | 401.6" (10.2 m) |
| Detect distance (wide) | 1720.5" (43.7 m) |
| Detect distance (tele) | 4007.9" (101.8 m) |
| Closest focusing distance | 39.4" (1 m) |
| Minimum aperture number | 2.9 |
| Zoom capability | Yes |
| Focal length range | 3.2 - 7.2 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Flip & mirror | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 360, 2592 x 1944, 3840 x 2160 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Audio | |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 2000 MB |
| Memory | |
| Flash memory | 8000 MB |
| Technical details | |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Product colour | Black, White |
| Mounting type | Wall |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Doesn't contain | Brominated Flame Retardant (BFR), CFR, PVC |
| Compliance certificates | BSMI, CE, EAC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Line crossing detection, Moving object |
| Security algorithms | EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Human and vehicle targets classification | Yes |
| Material | |
| Housing material | Plastic, Polycarbonate (PC) |
| Management features | |
| Cloud-managed | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 12.9 W |
| Power consumption (typical) | 3.6 W |
| Indication | |
| LED indicators | Yes |
| Certificates | |
| International Protection (IP) code | IP66 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 5.51" (140 mm) |
| Depth | 4.41" (112 mm) |
| Height | 4.96" (126 mm) |
| Weight | 19 oz (540 g) |
| Sustainability | |
| Compliance certificates | BSMI, CE, EAC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Packaging content | |
| Number of cameras | 1 |
| Sun shield included | Yes |
| Manual | Yes |
| Other features | |
| Doesn't contain | Brominated Flame Retardant (BFR), CFR, PVC |
