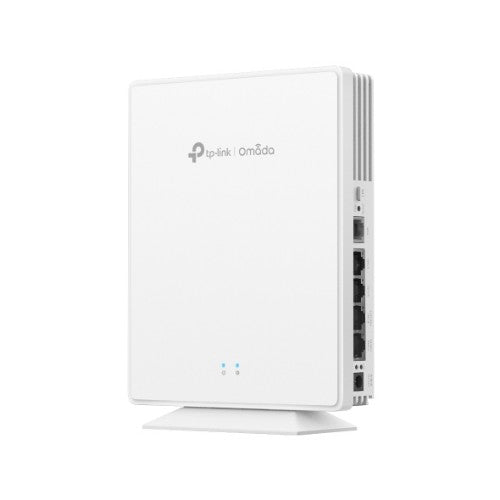

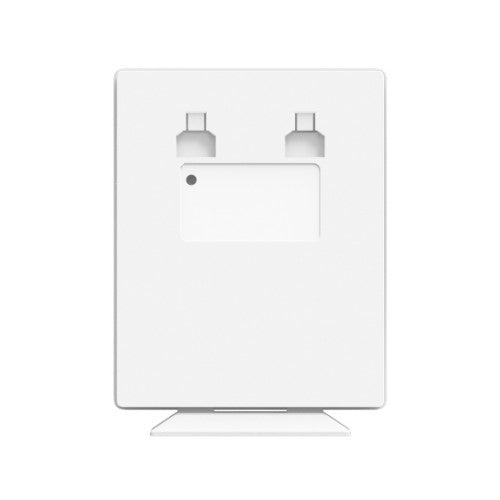

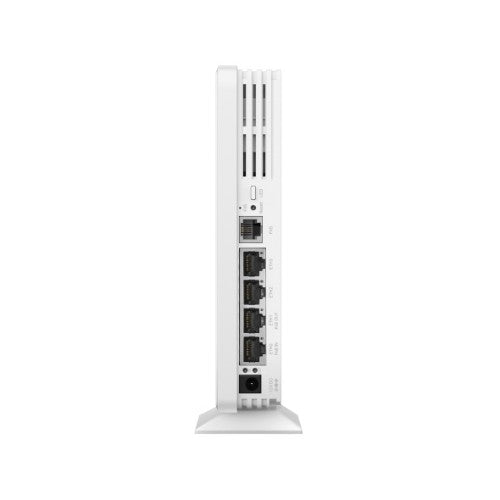

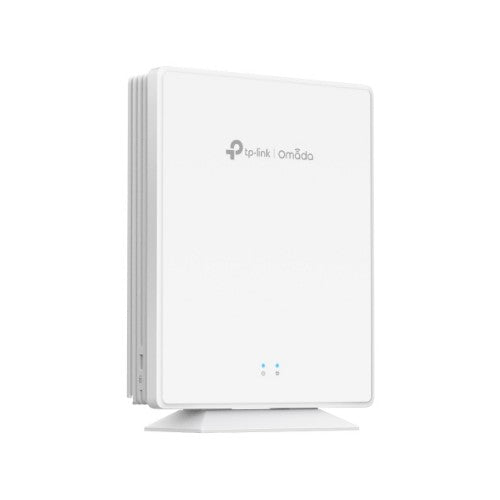

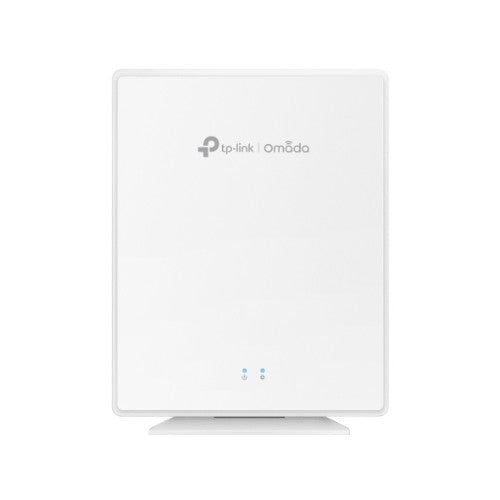

EAP650-Desktop Omada AX3000 Desktop Wi-Fi 6 Access Point
TP-Link
TP-Link EAP650-DESKTOP wireless access point 2976 Mbit/s White Power over Ethernet (PoE)
Part number:
EAP650-DESKTOP
$131.59
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds. †
- Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports
- Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment
- No Installation needed:Supports desktop installation without the need for additional setup
- High Flexibility: Provide flexible installation solutions for both desktop and wall mounting
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.§
- Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management. §
Description
Omada AX3000 Desktop Dual-Band Wi-Fi 6 Access Point. PORT: 4 1G RJ45 Port (One support PoE Out at 802.3at/bt input) +1 RJ11 Port. SPEED: 574Mbps at 2.4 GHz + 2402 Mbps at 5 GHz. FEATURE: 802.3bt POE++ and 12V DC, 4 Internal Antennas, MU-MIMO, 160MHz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, Centralized Management by Omada SDN Controller, Omada App.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Maximum data transfer rate | 2976 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3bt |
| Management platform | Omada |
| Ethernet LAN data rates | 1000 Mbit/s |
| Channel bandwidth | 160 MHz |
| Certification | CE, FCC, RoHS, IC |
| Maximum data transfer rate | 2976 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Load balancing | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Wireless LAN features | |
| Wireless standard | IEEE 802.11 a/b/g/n/ac/ax |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3bt |
| Bandwidth | |
| Channel bandwidth | 160 MHz |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Web-based management | Yes |
| Management platform | Omada |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3bt |
| Ethernet LAN data rates | 1000 Mbit/s |
| Channel bandwidth | 160 MHz |
| Maximum data transfer rate | 2976 Mbit/s |
| Transmitting power (FCC) | 26 - 27 dBm |
| Transmitting power (CE) | 20 - 29 dBm |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Load balancing | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| BeamForming | Yes |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Security | |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Access Control List (ACL) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Power | |
| Power consumption (max) | 17.3 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| DC voltage range | 12 V |
| Design | |
| Placement | Table |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS, IC |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 4.7 dBi |
| Technical details | |
| Reset button | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS, IC |
| Indication | |
| LED indicators | Yes |
| Software | |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 5.51" (140 mm) |
| Depth | 1.3" (33 mm) |
| Weight | 15.9 oz (452 g) |
| Height | 6.89" (175 mm) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Wireless standard | IEEE 802.11 a/b/g/n/ac/ax |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
