B760, 4 x DDR4, max 128 Gb, 1 x PCI-E x16, 2 x PCI-E x1, 2x M.2
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI

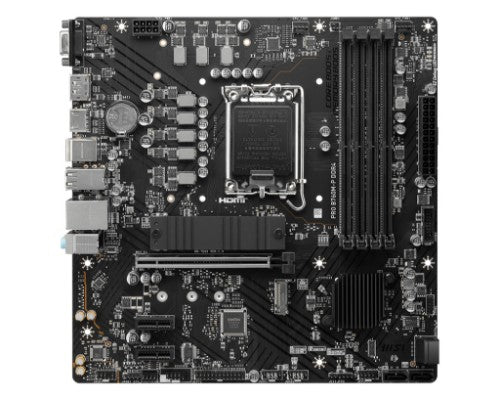

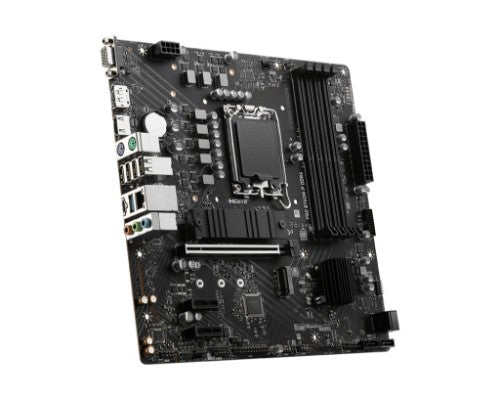

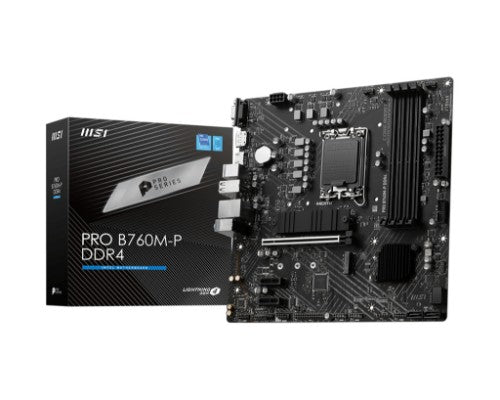

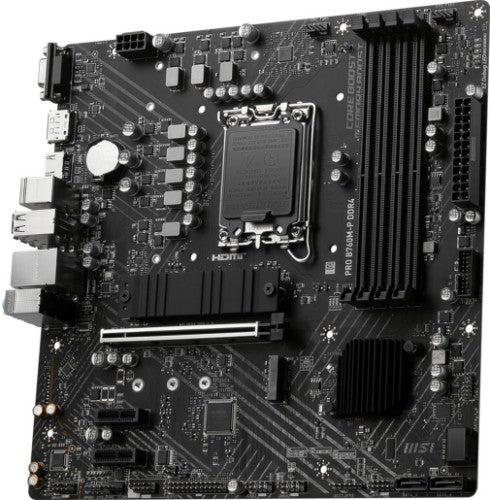

MSI PRO B760M-P Intel B760 LGA 1700 mini ATX
Part number:
B760MP
$130.33
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Description
PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Specifications
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| HDMI version | 1.4 |
| Cooling type | Passive |
| Motherboard form factor | mini ATX |
| Component for | PC |
| Maximum internal memory supported by processor | 128 GB |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 128 GB |
| Compatible processor series | Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,4000,4200,4266,4400,4600,4800 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Internal I/O | |
| Supported storage drive interfaces | M.2, SATA |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

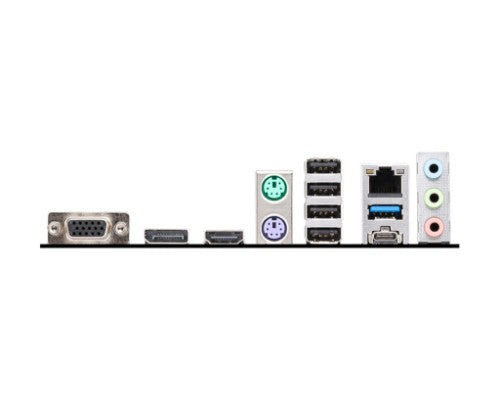

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
| Packaging data | |
| Package width | 9.6" (243.8 mm) |
| Package depth | 9.6" (243.8 mm) |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Package width | 9.6" (243.8 mm) |
| Package depth | 9.6" (243.8 mm) |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| Package width | 9.6" (243.8 mm) |
| Package depth | 9.6" (243.8 mm) |
