Intel Core Ultra 5 225 (20MB Cache), 16GB DDR5-SDRAM, 512GB SSD, 60.5 cm (23.8") Full HD 1920 x 1080 IPS Touch, DVD±RW, Intel Graphics, LAN, WLAN, Bluetooth, Webcam, Windows 11 Pro 64-bit
Your All-in-One Solution for Smarter, Safer Work
Boost your productivity with the 23.8″ Lenovo ThinkCentre M90a Gen 6 all-in-one PC. Intel® Core™ Ultra processors and Intel® AI Boost optimize system performance. The Lenovo AI Turbo Engine combined with the industry-first discrete neural processing unit (dNPU)* enhance audio, video, and security capabilities to elevate efficiency.
*Available on select models
CLEARER VIEWS, RICHER SOUNDS, HAPPIER EYES
Audiovisual Brilliance for Every Moment
Enjoy stunning visuals on the 23.8” AIO display with narrow bezels for an expansive viewing experience. Enjoy rich soundscapes by Dolby Atmos®, while integrated Intel® graphics and optional NVIDIA® GeForce RTX® graphics ensure flawless visuals with AI efficiency and power. Plus, TÜV Eyesafe® and TÜV Low Blue Light technology help reduce eye strain.
ADAPTABLE & CUSTOMIZABLE
Your Workspace, Just the Way You Like It
Customize your workspace with flexible stand options, including full-functional, ultra-flex, and tilt-only designs, ensuring ergonomic perfection and boosted productivity. Effortlessly adjust to find your ideal viewing angle for all-day comfort. Built to last, its IP55* certification ensures durability, even in demanding environments.
*Touchscreen models are IP55, non-touchscreen are IP54
CONNECTIVITY PERFECTED
One Device, Endless Efficiency
The M90a Gen 6 AIO PC boasts flexible port options, including Thunderbolt™ 4 with Thunderbolt™ Share for fast data transfers, and high-speed Wi-Fi for stable connectivity. Effortlessly link to monitors, smartphones, or laptops for PC-to-PC access, sharing screens, keyboards, or storage. With everything synchronized, productivity is seamless.
SECURITY & RELIABILITY — REDEFINED
Your Data Safe, Your Tasks Unstoppable
Enjoy ultimate peace of mind with the M90a Gen 6 all-in-one PC. ThinkShield’s advanced security suite offers robust protection via a discrete Trusted Platform Module (dTPM) and smart user recognition. Plus, optional human presence detection with radar sensor* safeguards sensitive data and Intel vPro® ensures multilayer security for comprehensive protection.
*Available on select models
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
Lenovo

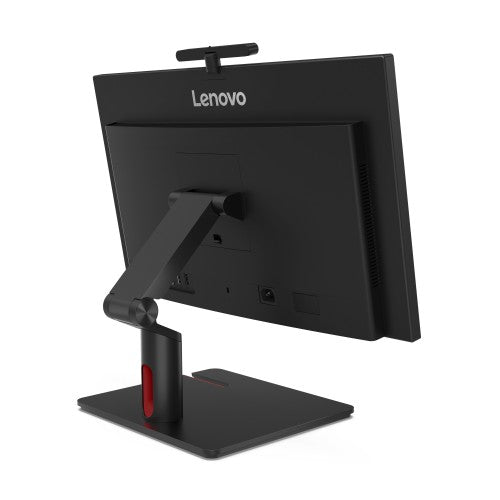

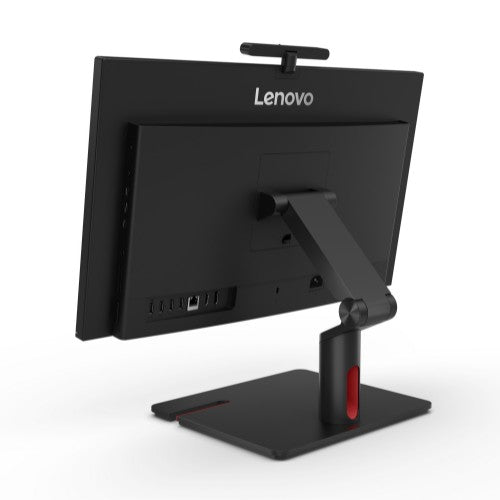

Lenovo ThinkCentre M90a Gen 6 Intel Core Ultra 5 225 23.8" 1920 x 1080 pixels Touchscreen All-in-One PC 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Wi-Fi 6E (802.11ax) Black
Part number:
13AT0006US
Sale price
$1,505.92
Regular price
$1,599.00
Save
$93.08
6%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 5 225 (20MB Cache)
- 60.5 cm (23.8") Full HD 1920 x 1080 IPS Touch
- 16GB (5600MHz) DDR5-SDRAM (1 x 16) & 512GB SSD
Description
AI-POWERED PERFORMANCEYour All-in-One Solution for Smarter, Safer Work
Boost your productivity with the 23.8″ Lenovo ThinkCentre M90a Gen 6 all-in-one PC. Intel® Core™ Ultra processors and Intel® AI Boost optimize system performance. The Lenovo AI Turbo Engine combined with the industry-first discrete neural processing unit (dNPU)* enhance audio, video, and security capabilities to elevate efficiency.
*Available on select models
CLEARER VIEWS, RICHER SOUNDS, HAPPIER EYES
Audiovisual Brilliance for Every Moment
Enjoy stunning visuals on the 23.8” AIO display with narrow bezels for an expansive viewing experience. Enjoy rich soundscapes by Dolby Atmos®, while integrated Intel® graphics and optional NVIDIA® GeForce RTX® graphics ensure flawless visuals with AI efficiency and power. Plus, TÜV Eyesafe® and TÜV Low Blue Light technology help reduce eye strain.
ADAPTABLE & CUSTOMIZABLE
Your Workspace, Just the Way You Like It
Customize your workspace with flexible stand options, including full-functional, ultra-flex, and tilt-only designs, ensuring ergonomic perfection and boosted productivity. Effortlessly adjust to find your ideal viewing angle for all-day comfort. Built to last, its IP55* certification ensures durability, even in demanding environments.
*Touchscreen models are IP55, non-touchscreen are IP54
CONNECTIVITY PERFECTED
One Device, Endless Efficiency
The M90a Gen 6 AIO PC boasts flexible port options, including Thunderbolt™ 4 with Thunderbolt™ Share for fast data transfers, and high-speed Wi-Fi for stable connectivity. Effortlessly link to monitors, smartphones, or laptops for PC-to-PC access, sharing screens, keyboards, or storage. With everything synchronized, productivity is seamless.
SECURITY & RELIABILITY — REDEFINED
Your Data Safe, Your Tasks Unstoppable
Enjoy ultimate peace of mind with the M90a Gen 6 all-in-one PC. ThinkShield’s advanced security suite offers robust protection via a discrete Trusted Platform Module (dTPM) and smart user recognition. Plus, optional human presence detection with radar sensor* safeguards sensitive data and Intel vPro® ensures multilayer security for comprehensive protection.
*Available on select models
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
Specifications
| Display | |
|---|---|
| HD type | Full HD |
| Colour gamut | 99% |
| Tilt angle range | -5 - 70° |
| Panel type | IPS |
| Display diagonal | 23.8" |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display brightness | 250 cd/m² |
| RGB colour space | sRGB |
| Native aspect ratio | 16:9 |
| Tilt adjustment | Yes |
| Low Blue Light technology | Yes |
| Anti-glare screen | Yes |
| Processor | |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cache type | Smart Cache |
| Processor boost frequency | 4.9 GHz |
| Processor family | Intel Core Ultra 5 |
| Processor model | 225 |
| Processor cores | 10 |
| Processor threads | 10 |
| Processor cache | 20 MB |
| Processor manufacturer | Intel |
| Processor base power | 65 W |
| Maximum turbo power | 121 W |
| Efficient-core base frequency | 2.7 GHz |
| Performance-core base frequency | 3.3 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 23 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 4 TOPs |
| Memory | |
| Memory form factor | DIMM/SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Non-ECC | Yes |
| Hard drive | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Storage | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Card reader integrated | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel Graphics |
| On-board GPU manufacturer | Intel |
| Audio | |
| Number of speakers | 2 |
| Audio system | Dolby Atmos |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
| Camera | |
| Built-in camera | Yes |
| Total megapixels | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Optical drive | |
| Optical drive type | DVD±RW |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4/2.1 |
| USB4 Gen 3x2 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Technical details | |
| Product type | All-in-One PC |
| Product colour | Black |
| Security | |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | Yes |
| Performance | |
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Multimedia | |
| Built-in camera | Yes |
| Total megapixels | 5 MP |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Infrared (IR) camera | Yes |
| Ergonomics | |
| Tilt adjustment | Yes |
| Weight & dimensions | |
| Width (with stand) | 21.2" (539.6 mm) |
| Depth (with stand) | 13.1" (333.4 mm) |
| Height (with stand) | 8.82" (224.1 mm) |
| Weight (with stand) | 17.7 lbs (8.04 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Non-operating altitude | 0 - 480000" (0 - 12192 m) |
| Certificates | |
| Certification | ErP Lot 3 GREENGUARD® RoHS compliant TCO Certified 10.0 TCO edge |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Keyboard language | US English |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Other features | |
| On-board graphics card | Yes |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Processor manufacturer | Intel |
| Operating altitude | 0 - 120000" (0 - 3048 m) |
| Number of SSDs installed | 1 |
| Non-operating altitude | 0 - 480000" (0 - 12192 m) |
| Infrared (IR) camera | Yes |
