NVIDIA GeForce RTX 5060 8GB GDDR7, 630 TOPs, PCI Express 5.0, 28 Gbps, 128-bit, 550W, 2.5 Slot
Experience Primal performance with the Prime GeForce RTX 5060, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
ASUS

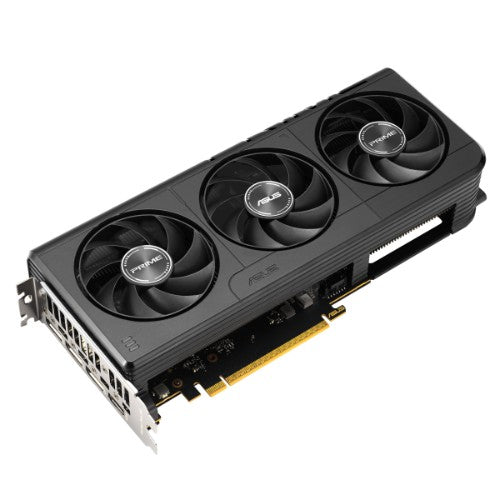

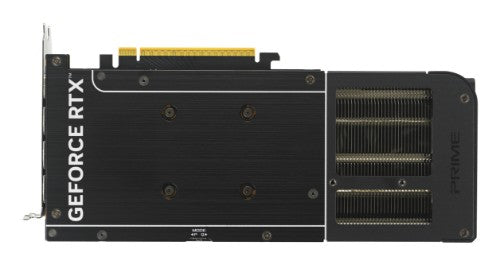

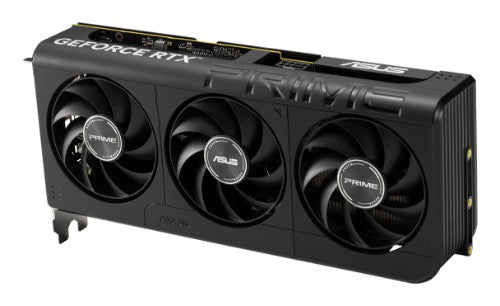

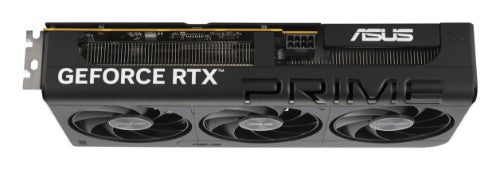

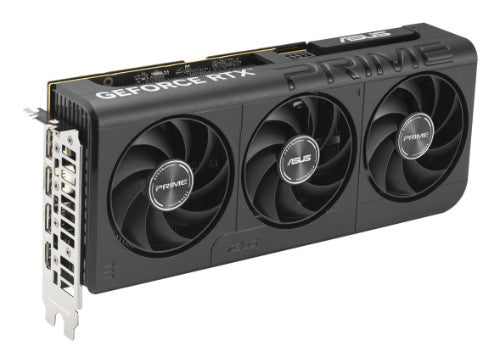

ASUS Prime -RTX5060-O8G NVIDIA GeForce RTX 5060 8 GB GDDR7
Part number:
PRIME-RTX5060-O8G
$472.62
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Primed for PowerExperience Primal performance with the Prime GeForce RTX 5060, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor boost clock speed | 2565 MHz |
| Stream processors | 4 |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| CUDA cores | 3840 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5060 |
| Processor frequency (OC mode) | 2595 MHz |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Data transfer rate | 28 Gbit/s |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| HDMI version | 2.1b |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |

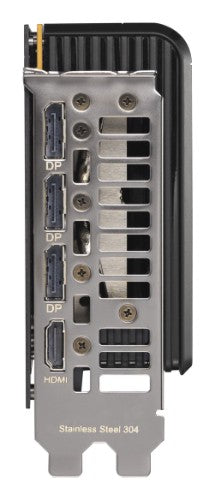

| HDMI ports quantity | 1 |
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Interface type | PCI Express 5.0 |
| Thunderbolt 3 ports quantity | 0 |
| Video | |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| HDCP | Yes |
| Dual Link DVI | No |
| CUDA cores | 3840 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| Virtual Reality (VR) ready | Yes |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| HDCP version | 2.3 |
| NPU performance up to | 614 TOPs |
| Design | |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Product colour | Multicolor |
| Number of slots | 2.5 |
| Cooling technology | ASUS Axial-tech |
| SFF ready | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Power | |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
| Number of slots | 2.5 |
| Weight | 27.3 oz (775 g) |
| Height | 4.72" (120 mm) |
| Depth | 1.97" (50 mm) |
| Length | 10.6" (268.3 mm) |
| Technical details | |
| Cooling type | Active |
| Product colour | Multicolor |
| System requirements | |
| Windows operating systems supported | Yes |
| Minimum system power supply | 550 W |
| Packaging data | |
| Package type | Box |
| Package width | 15.9" (405 mm) |
| Package height | 3.48" (88.5 mm) |
| Package depth | 9.17" (233 mm) |
| Package weight | 3.13 lbs (1.42 kg) |
