E-ATX/EEB, ATX PSII, 5 x 3.5”HDDs, 6 x 2.5”SSDs, 1 x USB Type-C, 2 x USB 3.0, 1 x HD-Audio, 550 x 248 x 548 mm
The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.
Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

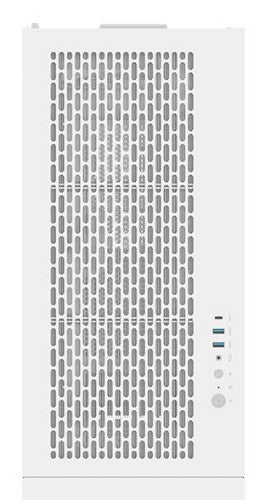

Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED
Thermaltake

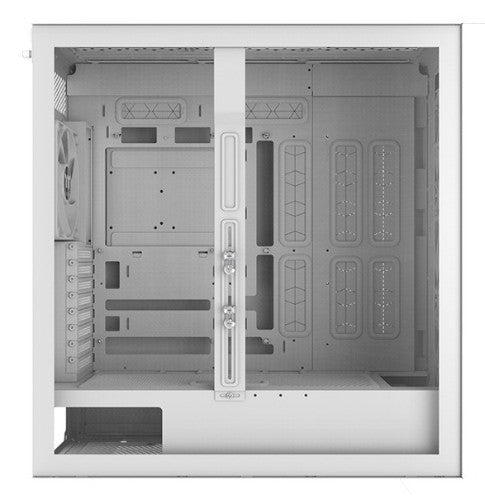

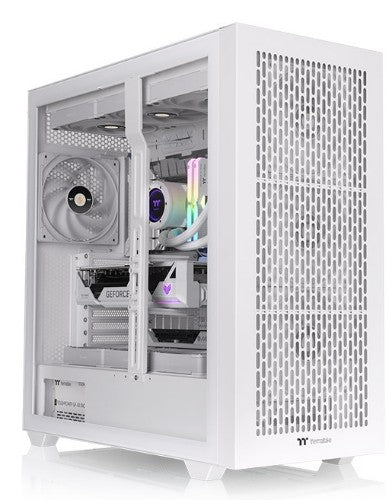

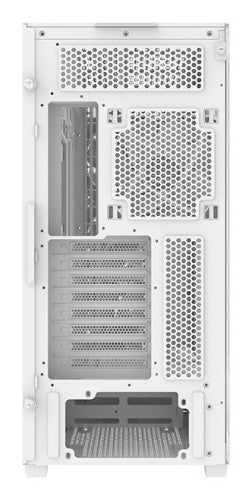

Thermaltake AX500 Full Tower White
Part number:
CA-11D-00F6WN-00
$209.92
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Compatible with Hidden-Connector Motherboards
- Excellent Radiator Support
- Four 140mm CT140 Fans Pre-installed
- Superior Cooling Support
- GPU Holder
- Storage Support
- Tidy Cable Management
- Superior Hardware Support
- Perfect Dust Protection
Description
Compatible with Hidden-Connector MotherboardsThe AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.
Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.
Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED
Specifications
| Design | |
|---|---|
| Material thickness | 0.157" (4 mm) |
| Material | SPCC, Steel, Tempered glass |
| Number of 3.5" bays | 5 |
| Number of 2.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Product colour | White |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 7.28" (18.5 cm) |
| Maximum graphics card length | 18.1" (46 cm) |
| Maximum PSU length | 7.87" (20 cm) |
| Type | PC |
| Form factor | Full Tower |
| Technical details | |
| Number of 3.5" bays | 5 |
| Number of 2.5" bays | 1 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Supported HDD sizes | 2.5,3.5" |
| Product colour | White |
| Number of expansion slots | 8 |
| Maximum CPU cooler height | 7.28" (18.5 cm) |
| Maximum graphics card length | 18.1" (46 cm) |
| Maximum PSU length | 7.87" (20 cm) |
| Type | PC |
| Form factor | Full Tower |
| Material | |
| Material | SPCC, Steel, Tempered glass |
| Material thickness | 0.157" (4 mm) |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output | Yes |
| Cooling | |
| Front radiator sizes supported | 120,140,240,280,360,420 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360,420 mm |
| Front fans installed | 4 x 140 mm |
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 0 - 1500 RPM |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
| Width | 21.7" (550 mm) |
| Depth | 9.76" (248 mm) |
| Height | 21.6" (548 mm) |
| Material thickness | 0.157" (4 mm) |
