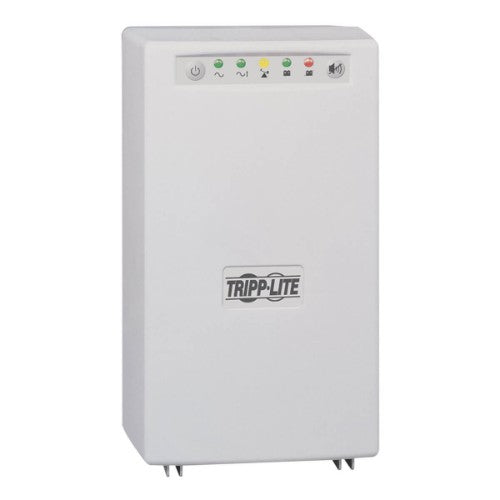

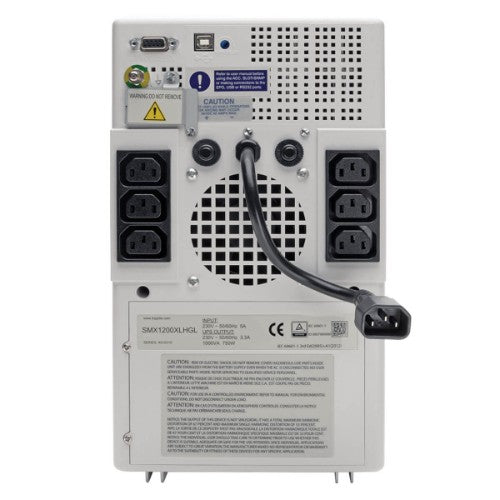

Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 1kVA, 750W, Full Isolation, Line-Interactive, 1 kVA, 750 W, 230 V, 230 V, 220 V
Tripp Lite
Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 1kVA, 750W, Full Isolation
Part number:
SMX1200XLHGL
Sale price
$2,060.62
Regular price
$3,704.39
Save
$1,643.77
44%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Lithium battery backup allows time to save files and safely shut down during blackouts
- 6 C13 hospital-grade (HG) outlets provide power to medical equipment
- Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
- Approved for use within the Patient Care Vicinity
- Approved to EN60601-1-2:2015, 4th Edition
- Alarm and front-panel LEDs report online, battery, fault and overload conditions
- 10,000-cycle LiFePO4 battery lasts up to 30x longer than comparable SLA batteries
Description
Tripp Lite SmartPro Medical-Grade UPS, Line Interactive, Lithium Battery, 6 Outlets - 230V, 1kVA, 750W, Full Isolation. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 750 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery voltage: 36 V, Typical backup time at full load: 11 min, Typical backup time at half load: 27.5 min. Form factor: Tower, Product color: Gray, Housing material: Polyvinyl chloride (PVC). Width: 7.5" (190.5 mm), Depth: 9.05" (229.9 mm), Height: 12.7" (322.6 mm)Specifications
| Power | |
|---|---|
| Output frequency regulation | 50 - 60 Hz |
| Output power | 750 W |
| Input operation voltage (min) | 230 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Output power capacity | 1 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Number of input phases | 1 |
| LED indicators | Yes |
| Features | |
| Country of origin | China |
| UPS topology | Line-Interactive |
| Output frequency regulation | 50 - 60 Hz |
| Number of input phases | 1 |
| Output power | 750 W |
| Input operation voltage (min) | 230 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Output power capacity | 1 kVA |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Battery | |
| Battery voltage | 36 V |
| Typical backup time at half load | 27.5 min |
| Typical backup time at full load | 11 min |
| Design | |
| Country of origin | China |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Gray |
| Housing material | Polyvinyl chloride (PVC) |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 104 °C |
| Storage temperature (T-T) | 5 - 122 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Package width | 12.2" (309.9 mm) |
| Package depth | 13.4" (339.9 mm) |
| Package height | 18.5" (469.9 mm) |
| Weight | 35.1 lbs (15.9 kg) |
| Width | 7.5" (190.5 mm) |
| Package weight | 38.4 lbs (17.4 kg) |
| Height | 12.7" (322.6 mm) |
| Depth | 9.05" (229.9 mm) |
| Packaging data | |
| Package width | 12.2" (309.9 mm) |
| Package depth | 13.4" (339.9 mm) |
| Package height | 18.5" (469.9 mm) |
| Package weight | 38.4 lbs (17.4 kg) |
| Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 12.2" (309.9 mm) |
| Master (outer) case length | 13.4" (339.9 mm) |
| Master (outer) case height | 18.5" (469.9 mm) |
| Master (outer) case gross weight | 38.4 lbs (17.4 kg) |
| Harmonized System (HS) code | 85078000 |
