6U, 8 kVA, 7.2 kW, 1 x L6-30R, 2 x L14-30R, 120/208V
Eaton

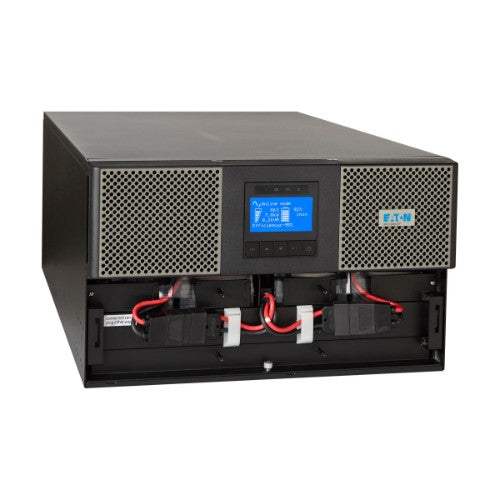

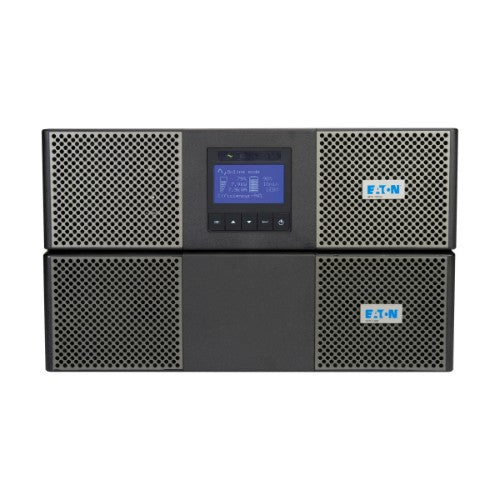

Eaton 9PX8KSP uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 7200 W
Part number:
9PX8KSP
Sale price
$8,060.45
Regular price
$13,580.72
Save
$5,520.27
41%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Description
Eaton 9PX UPS 8kVA 7.2kW 6U Online True SineWave Network Card Included 120/208VSpecifications
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Input power factor | 0.99 |
| Output power | 7200 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 208 V |
| Output operation voltage (min) | 102 V |
| Output operation voltage (max) | 208 V |
| Efficiency | 93% |
| Output power capacity | 8 kVA |
| Input frequency | 40 - 70 Hz |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Noise level | 55 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output voltage regulation | 1% |
| Input power factor | 0.99 |
| Output power | 7200 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 208 V |
| Output operation voltage (min) | 102 V |
| Output operation voltage (max) | 208 V |
| Efficiency | 93% |
| Noise level | 55 dB |
| Output power capacity | 8 kVA |
| Input frequency | 40 - 70 Hz |
| Ports & interfaces | |
| Power plug | NEMA L6-30R |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 7 min |
| Hot-swap battery | Yes |
| Design | |
| Rack capacity | 6U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Certification | NOM ANSI/IEEE Std C62.41 cULus Listed ENERGY STAR certified |
| Built-in fan | Yes |
| Control type | Buttons |

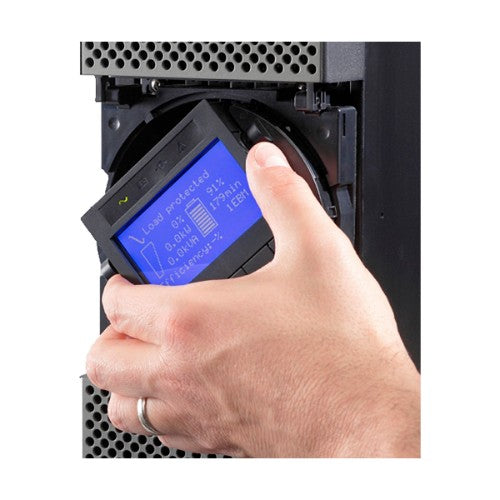

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Certification | NOM ANSI/IEEE Std C62.41 cULus Listed ENERGY STAR certified |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging content | |
| Cables included | RS-232, USB cable |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Weight | 22.5 lbs (10.2 kg) |
| Width | 19.4" (493.4 mm) |
| Height | 10.3" (261.6 mm) |
| Depth | 32" (812.8 mm) |
| Packaging data | |
| Cables included | RS-232, USB cable |
