138", 1920x1080, Direct view LED, 600 nits, 6500:1, 32GB, Android 9.0, HDMI x 5, USB Type A x 4, RJ45 x 4, RS232, IR, Wi-Fi, USB Type C, IP54, 3064x2598x780 mm, 250 kg
Unfold New Views. Everywhere.
LDS138-151 Foldable 138" All-in-One LED Display
Ready for Instant Use
The 138” LED display comes fully pre-assembled with LED modules, cabinets, and a motorized floor stand with an integrated system control box. It’s ready to use within minutes, eliminating the need for wall-mounted installation and making setup faster, easier, and more accessible for installers.

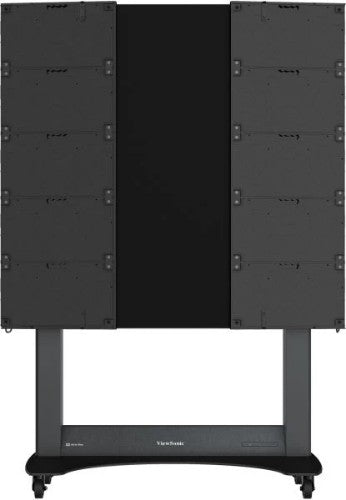

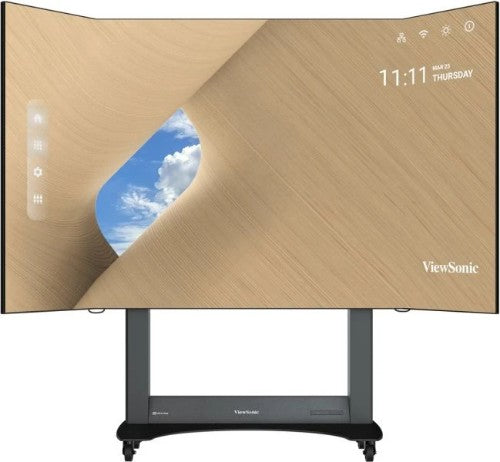

Foldable Screen for Enhanced Mobility
The foldable screen design of the LDS138-151 allows it to fit into standard elevators, ensuring easy transport between locations. Its highly mobile design offers flexibility and convenience, making it ideal for spaces where permanent installations or renovations are impractical.
Built-in Motorized Stand with 360° Silent Wheels
Designed for maximum flexibility, the LDS138-151 features a built-in motorized stand that adjusts to a maximum range of 65 cm at the press of a button. With 360° silent wheels, it can be effortlessly moved and positioned to suit any space or occasion.
Design for Easy Delivery
This foldable All-in-One LED display is delivered in a custom-designed movable flight case, providing secure protection and enabling swift, hassle-free transport between venues.
Enhanced Durability with Advanced GOB Surface Treatment
Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 rating, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, training rooms, and assembly halls.
All-in-One Integration Design without Complicated Setup
Free yourself from a complicated setup of power supplies, control systems, stitching machines, etc. - all you need to do is turn the display on.
Integrated Control Box for a Sleek, Frameless Design
By integrating the control box onto the floor stand, the LDS138-151 delivers a seamless 4-edge frameless screen. This innovative design not only enhances the immersive viewing experience but also ensures effective cable management, with cables neatly concealed along the floor for a clean and professional setup.
Captivating Visuals that Shine Bright
With a high brightness of 600 nits and 100-level adjustments, the LDS138-151 ensures incredible clarity even in large venues with ambient lighting. ViewSonic’s proprietary Cinema SuperColor+ Technology features a 120% Rec.709 wide color gamut that delivers lifelike colors.
Engage Your Audience through Powerful Audio
Deliver compelling presentations that captivate your audience with the display's dual sets of 30W speakers, ensuring powerful and clear sound.
User-Friendly Operation & Maintenance
Wireless Content Sharing from Mobile Devices
Simplify content sharing during presentations and enhance collaboration in multi-presenter meetings. Equipped with built-in 2.4G/5GHz Wi-Fi and the pre-installed vCast app, this display enables seamless wireless content sharing from one or multiple mobile devices to the screen simultaneously.
Multiple Content in A Single Screen
Video conferences and online collaborations will now be more flexible and creative with the LED display’s intuitive split screens. The display can support Picture-by-Picture (up to 4 different inputs) or Picture-in-Picture (a screen within another screen) scenarios in real-time.
Easy Full Front Maintenance
Enjoy maintenance convenience with hot-swappable front LED modules, enabling effortless replacement of defective parts without relocating the entire display. The user-friendly suction tool ensures a hassle-free process, accessible to all, regardless of technical expertise.
Viewsonic LDS138-151 signage display Digital signage flat panel 138" LED Wi-Fi 600 cd/m² Full HD Black
Part number:
LDS138-151
$57,979.32
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Pre-assembled kit, ready for immediate use—no installation required
- Foldable screen that fits easily into large passenger elevators for convenient transport
- Shockproof, dustproof, and moisture-resistant with GOB surface treatment
- Built-in stand with an integrated control box and motorized height adjustment
- Seamless large display designed to captivate audiences in any space
Description
The ViewSonic® LDS138-151 is a foldable 138” All-in-One LED display that provides instant use, easy transport, and convenient operation. With a pre-assembled design and built-in motorized height adjustment, this display can be set up in just 10 minutes without wall mounting, making it ideal for large venues or spaces where renovations are not feasible. The foldable screen design significantly reduces packaging size, cutting shipping costs, improving delivery efficiency, and enabling easy transport between locations. The integrated system control box on the floor stand ensures tidy cable management and a premium, frameless visual experience. Featuring Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules offer enhanced protection against impacts, dust, and moisture during installation and use. With its seamless large screen and dual 30W speakers, the LDS138-151 is ready to captivate audiences in environments such as high-end boardrooms, receptions, galleries, auditoriums, and other large venues.Unfold New Views. Everywhere.
LDS138-151 Foldable 138" All-in-One LED Display
Ready for Instant Use
The 138” LED display comes fully pre-assembled with LED modules, cabinets, and a motorized floor stand with an integrated system control box. It’s ready to use within minutes, eliminating the need for wall-mounted installation and making setup faster, easier, and more accessible for installers.
Foldable Screen for Enhanced Mobility
The foldable screen design of the LDS138-151 allows it to fit into standard elevators, ensuring easy transport between locations. Its highly mobile design offers flexibility and convenience, making it ideal for spaces where permanent installations or renovations are impractical.
Built-in Motorized Stand with 360° Silent Wheels
Designed for maximum flexibility, the LDS138-151 features a built-in motorized stand that adjusts to a maximum range of 65 cm at the press of a button. With 360° silent wheels, it can be effortlessly moved and positioned to suit any space or occasion.
Design for Easy Delivery
This foldable All-in-One LED display is delivered in a custom-designed movable flight case, providing secure protection and enabling swift, hassle-free transport between venues.
Enhanced Durability with Advanced GOB Surface Treatment
Crafted for exceptional durability, this display features Glue-on-Board (GOB) surface treatment technology—a protective process that seals the LED module surface with transparent epoxy glue, enhancing protection during installation and use. Achieving an IP54 rating, it provides resistance against collisions, dust, and moisture, making it an ideal choice for public spaces such as lobbies, training rooms, and assembly halls.
All-in-One Integration Design without Complicated Setup
Free yourself from a complicated setup of power supplies, control systems, stitching machines, etc. - all you need to do is turn the display on.
Integrated Control Box for a Sleek, Frameless Design
By integrating the control box onto the floor stand, the LDS138-151 delivers a seamless 4-edge frameless screen. This innovative design not only enhances the immersive viewing experience but also ensures effective cable management, with cables neatly concealed along the floor for a clean and professional setup.
Captivating Visuals that Shine Bright
With a high brightness of 600 nits and 100-level adjustments, the LDS138-151 ensures incredible clarity even in large venues with ambient lighting. ViewSonic’s proprietary Cinema SuperColor+ Technology features a 120% Rec.709 wide color gamut that delivers lifelike colors.
Engage Your Audience through Powerful Audio
Deliver compelling presentations that captivate your audience with the display's dual sets of 30W speakers, ensuring powerful and clear sound.
User-Friendly Operation & Maintenance
Wireless Content Sharing from Mobile Devices
Simplify content sharing during presentations and enhance collaboration in multi-presenter meetings. Equipped with built-in 2.4G/5GHz Wi-Fi and the pre-installed vCast app, this display enables seamless wireless content sharing from one or multiple mobile devices to the screen simultaneously.
Multiple Content in A Single Screen
Video conferences and online collaborations will now be more flexible and creative with the LED display’s intuitive split screens. The display can support Picture-by-Picture (up to 4 different inputs) or Picture-in-Picture (a screen within another screen) scenarios in real-time.
Easy Full Front Maintenance
Enjoy maintenance convenience with hot-swappable front LED modules, enabling effortless replacement of defective parts without relocating the entire display. The user-friendly suction tool ensures a hassle-free process, accessible to all, regardless of technical expertise.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Active display area (W x H) | 67.5 x 120.1" (1715 x 3050 mm) |
| Display technology | LED |
| Display diagonal | 138" |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 600 cd/m² |
| HD type | Full HD |
| Contrast ratio (typical) | 6500:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.0625 x 0.0625" (1.59 x 1.59 mm) |
| Panel life | 100000 h |
| Vertical scan range | 56 - 85 Hz |
| Horizontal scan range | 31 - 94 kHz |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 1.4/2.0 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 5 |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| RS-232 interface | Yes |
| USB version | 2.0 |
| USB ports quantity | 4 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 30 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| VESA mounting | Yes |
| Performance | |
| Purpose | Universal |
| International Protection (IP) code | IP54 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Wi-Fi | Yes |
| Panel life | 100000 h |
| Power | |
| Power consumption (max) | 1745 W |
| Power consumption (typical) | 581 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240/220-240 V |
| AC input frequency | 50/50-60 Hz |
| Computer system | |
| Internal storage capacity | 32 GB |
| Operating system version | Android 9.0 |
| Weight & dimensions | |
| Width (with stand) | 120.6" (3064 mm) |
| Height (with stand) | 102.3" (2598 mm) |
| Depth (with stand) | 30.7" (780 mm) |
| Weight | 618.4 lbs (280.5 kg) |
| Weight (with stand) | 551.2 lbs (250 kg) |
| Packaging data | |
| Package width | 81.5" (2070 mm) |
| Package depth | 33.2" (844 mm) |
| Package height | 78.3" (1990 mm) |
| Package weight | 1000.9 lbs (454 kg) |
| Remote control included | Yes |
| Cables included | IR, LAN (RJ-45), Power |
| Packaging content | |
| Remote control included | Yes |
| Cables included | IR, LAN (RJ-45), Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A |
| LED backlighting type | Direct-LED |
| Weight (with stand) | 551.2 lbs (250 kg) |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Thin Client | |
| Internal storage capacity | 32 GB |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528521000 |
| Features | |
| Harmonized System (HS) code | 8528521000 |
| Other features | |
| USB connector type | USB Type-A |
| Wi-Fi | Yes |
| Width (with stand) | 120.6" (3064 mm) |
| Power consumption (max) | 1745 W |
| Height (with stand) | 102.3" (2598 mm) |
| Display technology | LED |
| Depth (with stand) | 30.7" (780 mm) |
| Weight (with stand) | 551.2 lbs (250 kg) |
