Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ - International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.)

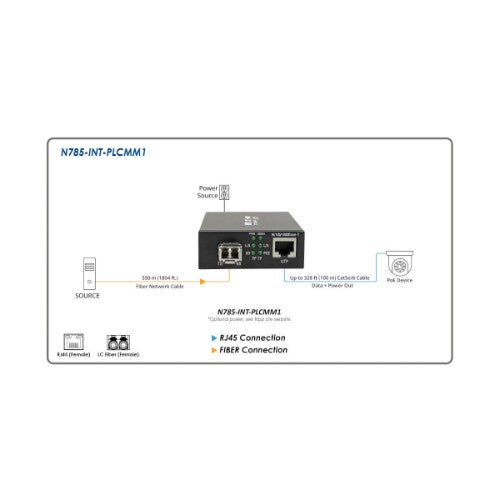

This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection

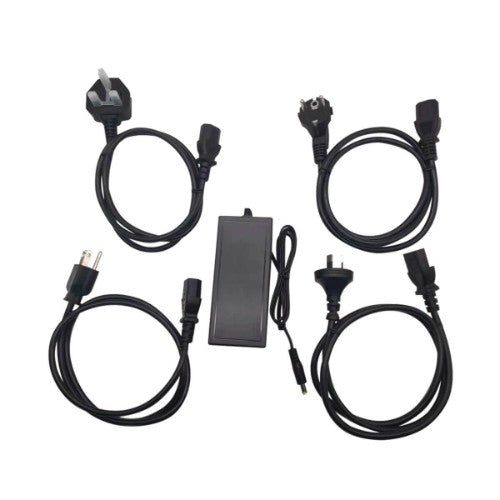

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.
Eaton
Tripp Lite N785-INT-PLCMM1 network media converter 1000 Mbit/s 850 nm Black
Part number:
N785-INT-PLCMM1
Sale price
$180.88
Regular price
$307.70
Save
$126.82
41%
OFF
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Supports multimode fiber optic cable with LC connectors up to 550 m
- RJ45 jack supports auto-MDI/MDIX to bridge various network devices

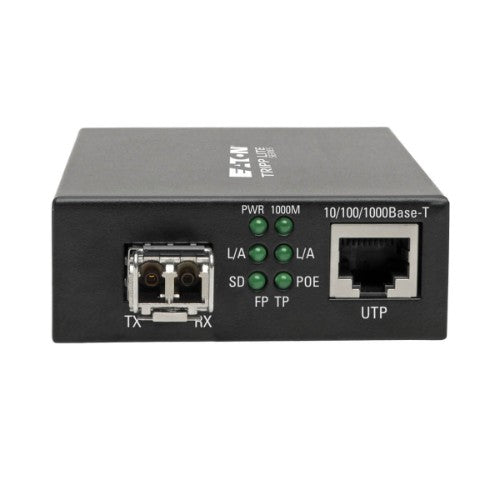

- LEDs indicate Ethernet and fiber link status at a quick glance
- Link fault pass through lets you quickly identify any faults in the connection
Description
Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber CableThis economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.
Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.
Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.
Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Internal | No |
| Sustainability compliance | Yes |
| Master (outer) case GTIN (EAN/UPC) | 10037332273052 |
| Harmonized System (HS) code | 8517.62.0090 |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Yes |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 21653.5" (550 m) |
| Design | |
| Country of origin | China |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output voltage | 48 V |
| Output current | 1.25 A |
| External power adapter | Yes |
| AC input frequency | 50 - 60 Hz |
| Packaging content | |
| Package type | Box |
| AC adapter included | Yes |
| Manual | Yes |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 3.74" (95 mm) |
| Height | 0.984" (25 mm) |
| Package depth | 9.8" (248.9 mm) |
| Package width | 8.3" (210.8 mm) |
| Package height | 4.2" (106.7 mm) |
| Package weight | 2.8 lbs (1.27 kg) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package type | Box |
| Package depth | 9.8" (248.9 mm) |
| Package width | 8.3" (210.8 mm) |
| Package height | 4.2" (106.7 mm) |
| Package weight | 2.8 lbs (1.27 kg) |
| Logistics data | |
| Master (outer) case width | 10.6" (269.2 mm) |
| Master (outer) case length | 17.8" (452.1 mm) |
| Master (outer) case height | 22.8" (579.1 mm) |
| Master (outer) case gross weight | 29.8 lbs (13.5 kg) |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8517.62.0090 |
