Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, International Power Supply, 1310 nm, 2,000 m (6,561 ft.)
Converts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed
Fiber optic technology more effective than Cat5e/6 over long distances
Supports 50/125 multimode fiber optic cabling up to 2,000 m
Supports 62.5/125 multimode fiber optic cabling up to 400 m
Connection requires an N785-INT-SC at both ends
Advanced Monitoring and Control
Supports automatic sensing of network speed
Supports both full-duplex and half-duplex operation
Supports automatic MDI/MDI-X configuration

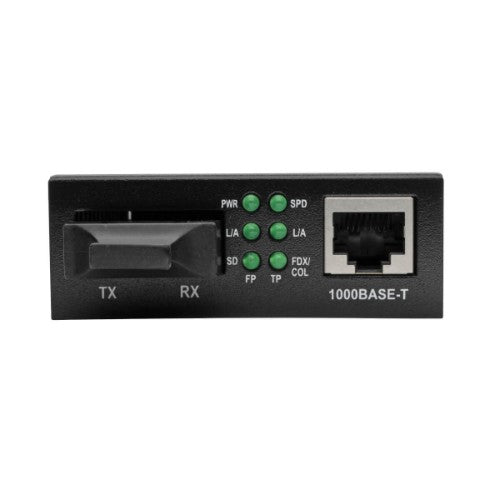

6 LEDs indicate network and fiber link status at a glance
Plug-and-Play Operation
No additional software or drivers required
Compact unit sets up in minutes
Durable metal housing designed to last

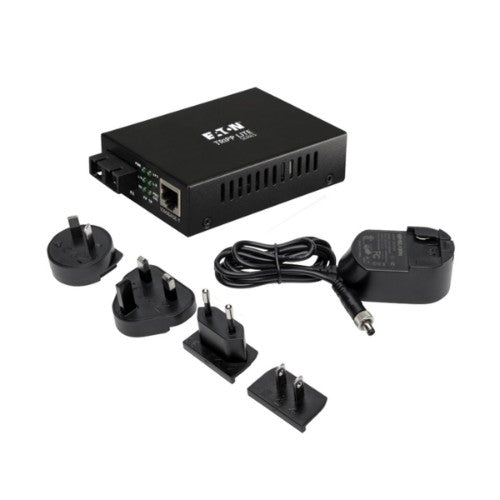

Power supply includes international plug adapters for North America, U.K., Europe and Australia
Eaton

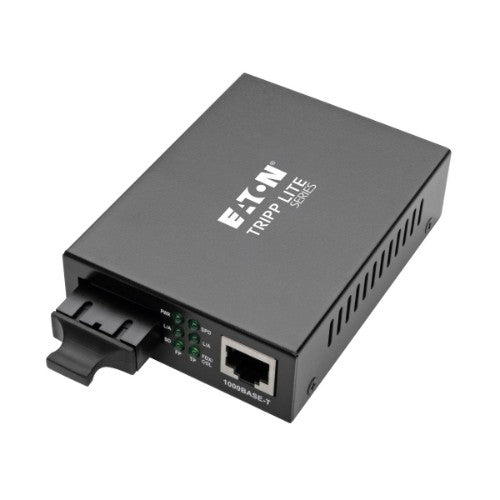

Tripp Lite N785-INT-SC network media converter 1000 Mbit/s 1310 nm Black
Part number:
N785-INT-SC
$144.83
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- RJ45 jack supports auto-MDI/MDI-X to bridge various network devices
- Supports both full- and half-duplex operation
- LEDs indicate Ethernet and fiber link status at a glance
- Includes North America, U.K., Europe and Australia plug adapters
- Plug-and-play operation with no software or drivers required
Description
Extends a Gigabit Ethernet Signal up to 2,000 m (1804 ft.) Using SC Multimode CableConverts UTP copper connection to duplex fiber over long distance, then back to copper at opposite end while auto-sensing the proper speed
Fiber optic technology more effective than Cat5e/6 over long distances
Supports 50/125 multimode fiber optic cabling up to 2,000 m
Supports 62.5/125 multimode fiber optic cabling up to 400 m
Connection requires an N785-INT-SC at both ends
Advanced Monitoring and Control
Supports automatic sensing of network speed
Supports both full-duplex and half-duplex operation
Supports automatic MDI/MDI-X configuration
6 LEDs indicate network and fiber link status at a glance
Plug-and-Play Operation
No additional software or drivers required
Compact unit sets up in minutes
Durable metal housing designed to last
Power supply includes international plug adapters for North America, U.K., Europe and Australia
Specifications
| Network | |
|---|---|
| Converter input interface | 1000Base-T |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Features | |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
| Power | |
| Input voltage | 100 - 240 V |
| Input current | 2 A |

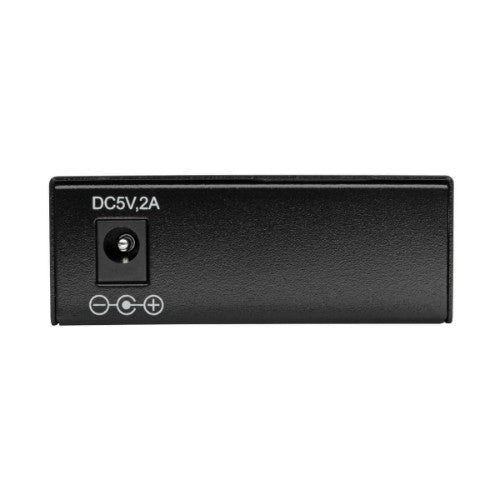

| Output voltage | 5 V |
| External power adapter | Yes |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 4.7" (119.4 mm) |
| Depth | 1.08" (27.5 mm) |
| Weight | 15.9 oz (450 g) |
| Height | 0.394" (10 mm) |
| Package depth | 9" (228.6 mm) |
| Package width | 4.8" (121.9 mm) |
| Package height | 2" (50.8 mm) |
| Package weight | 15.9 oz (450 g) |
| Packaging content | |
| AC adapter included | Yes |
| Packaging data | |
| Package depth | 9" (228.6 mm) |
| Package width | 4.8" (121.9 mm) |
| Package height | 2" (50.8 mm) |
| Package weight | 15.9 oz (450 g) |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 78740.2" (2000 m) |
| Internal | No |
| Master (outer) case GTIN (EAN/UPC) | 10037332205664 |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| Country of origin | China |
| Product colour | Black |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 10.2" (259.1 mm) |
| Master (outer) case length | 10.6" (269.2 mm) |
| Master (outer) case height | 12" (304.8 mm) |
| Master (outer) case gross weight | 10.3 lbs (4.67 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332205664 |
| Harmonized System (HS) code | 85176990 |
