12-Port 10G PoE++ Web Smart Switch (720W)
Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for long-distance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.
Trendnet

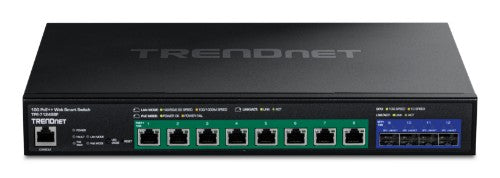

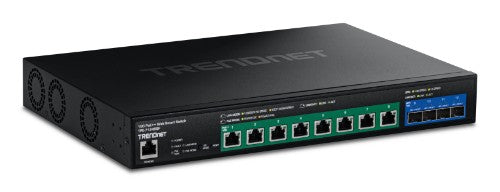

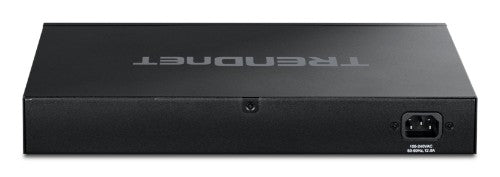

Trendnet TPE-7124SBF network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black
Part number:
TPE-7124SBF
$802.98
Shipping time varies based your on location.
Enjoy Free Shipping on orders over $2000 USD
Key Features
- 8 x 10G PoE++ ports
- 4 x 10G SFP+ ports
- 720W PoE power budget
- Fast PoE minimizes wait time for powering up PoE devices
- Perpetual PoE eliminates PoE down time during switch reboot
- PoE alive check automatically attempts to recover an unresponsive, connected PoE device
- Supports 100M/1G/2.5G/10GBASE-T link speeds
- Easy-to-use web-based management interface
- Supports IPv6, LACP, VLAN, QoS, IGMP/MLD Snooping
- IPv4/IPv6 Static Routing support
- Bandwidth control per port
- Voice VLAN support
- 1U 19” rack mountable metal housing
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 12-Port 10G PoE++ Web Smart Switch (720W), model TPE-7124SBF, offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.
This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for long-distance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 1 MB |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 178.56 Mpps |
| Protocols | |
| Management protocols | SNMP v1, v2c, v3 |
| Design | |
| Reset button | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Certification | CE FCC UL |
| Performance | |
| Noise level | 51.1 dB |
| Mean time between failures (MTBF) | 161000 h |
| Packet buffer memory | 1 MB |
| Power | |
| Power consumption (max) | 57.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 720 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Weight & dimensions | |
| Width | 13" (330 mm) |
| Depth | 8.98" (228 mm) |
| Height | 1.73" (44 mm) |
| Weight | 6.35 lbs (2.88 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Noise level | 51.1 dB |
| Mean time between failures (MTBF) | 161000 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 1 MB |
| Certificates | |
| Certification | CE FCC UL |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
